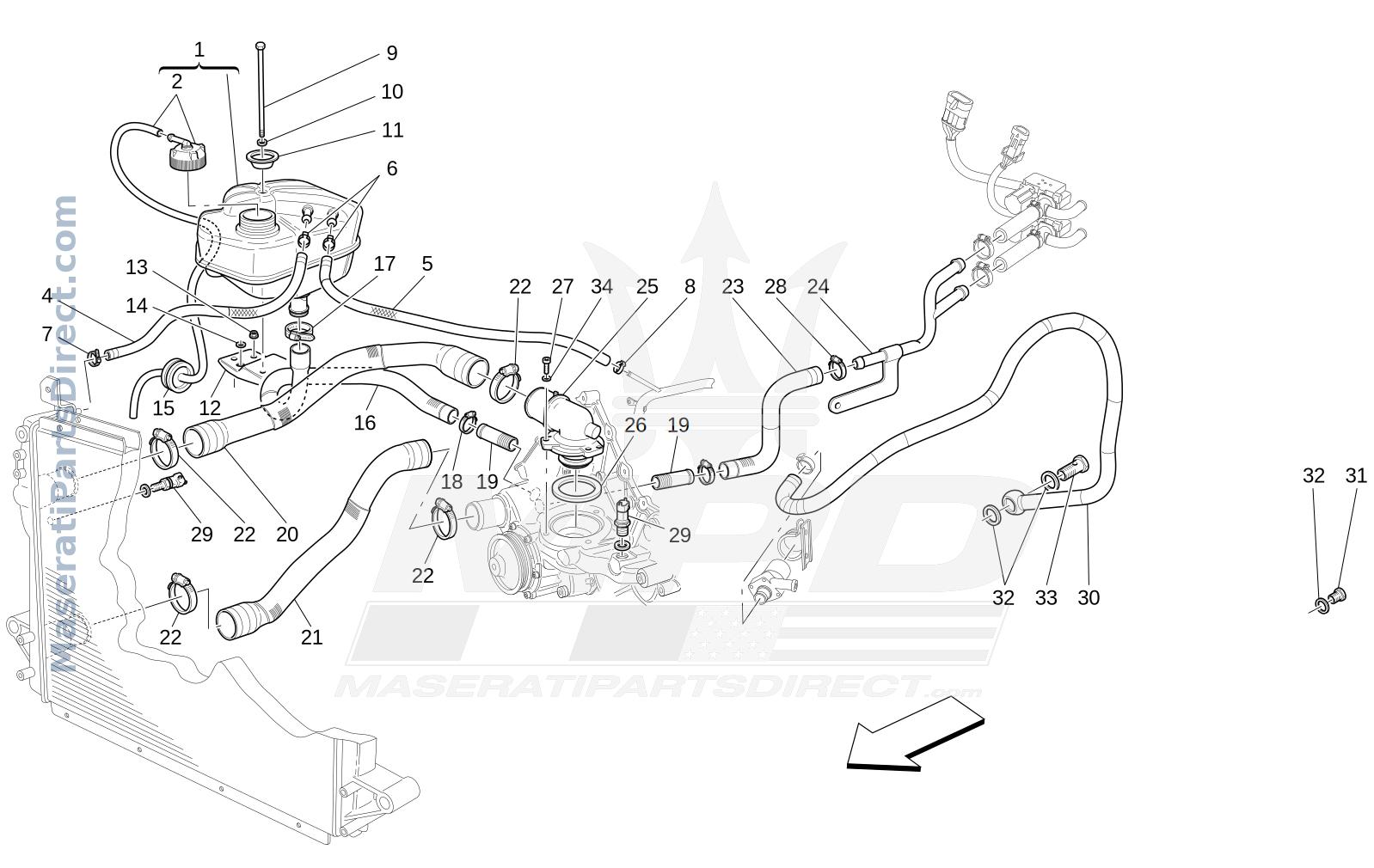

01.71 - 1 - COOLING SYSTEM: NOURICE AND LINES

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1.0	296547	EXPANSION TANK ASSEMBLY	$128.12 In Stock
2.0	980145477	PLUG FOR CPL TANK	$55.63 Order
4.0	230562	VENT PIPE FROM EXPANSION TANK TO RADIATOR	$58.45 Order
5.0	241141	VENT PIPE FROM EXPANSION TANK TO BUNDY	$65.51 Order
6.0	13125470	COLLAR	$9.20 Order
7.0	13000190	SCREW COLLAR	$8.28 Order
8.0	13000390	SCREW COLLAR	$9.17 Order
9.0	60607472	SCREW	$26.56 Order
10.0	12601274	WASHERD. 6,40-12X 0,5	$8.28 Order
11.0	82404496	CUP	$13.58 Order
12.0	228422	BRACKET	$41.99 Order
13.0	14065921	NUT	$11.52 Order
14.0	12646634	WASHER	$11.40 Order
15.0	228047	CABLE BUSHING	$19.66 Order
16.0	227136	PIPE FROM NOURICE TO WATER PUMP	$140.45 Order
17.0	13000590	SCREW COLLAR	$14.28 Order
18.0	13000190	SCREW COLLAR	$8.28 Order
19.0	228438	THREADED UNION	$21.21 Order
20.0	237593	DELIVERY PIPE FROM ENGINE TO RADIATOR	$153.69 Order
21.0	237594	RETURN PIPE FROM RADIATOR TO ENGINE	$177.72 Order
22.0	13000790	SCREW COLLAR	$10.14 Order
23.0	69418200	RUBBER HOSE TO WATER PUMP	$152.92 Order
24.0	69417100	RIGID PIPE	$206.51 Order
25.0	230890	THERMOSTAT COVER WITH PRESSURE GAUGE	$341.03 Order
26.0	137873	GASKET	$23.66 In Stock
27.0	14433124	SCREW	$9.20 Order
28.0	13097090	COLLAR	$12.41 Order
29.0	180137	WATER TEMPERATURE SENSOR	$97.29 Order
30.0	260465	WATER PIPE FROM CYLINDER HEAD	$1,057.50 Order
31.0	280597	THREADED PLUG	$49.49 Order
32.0	10259960	GASKET	$7.65 Order
33.0	203787	FILLER NECK	$73.01 Order
34.0	12601274	WASHERD. 6,40-12X 0,5	$8.28 Order
