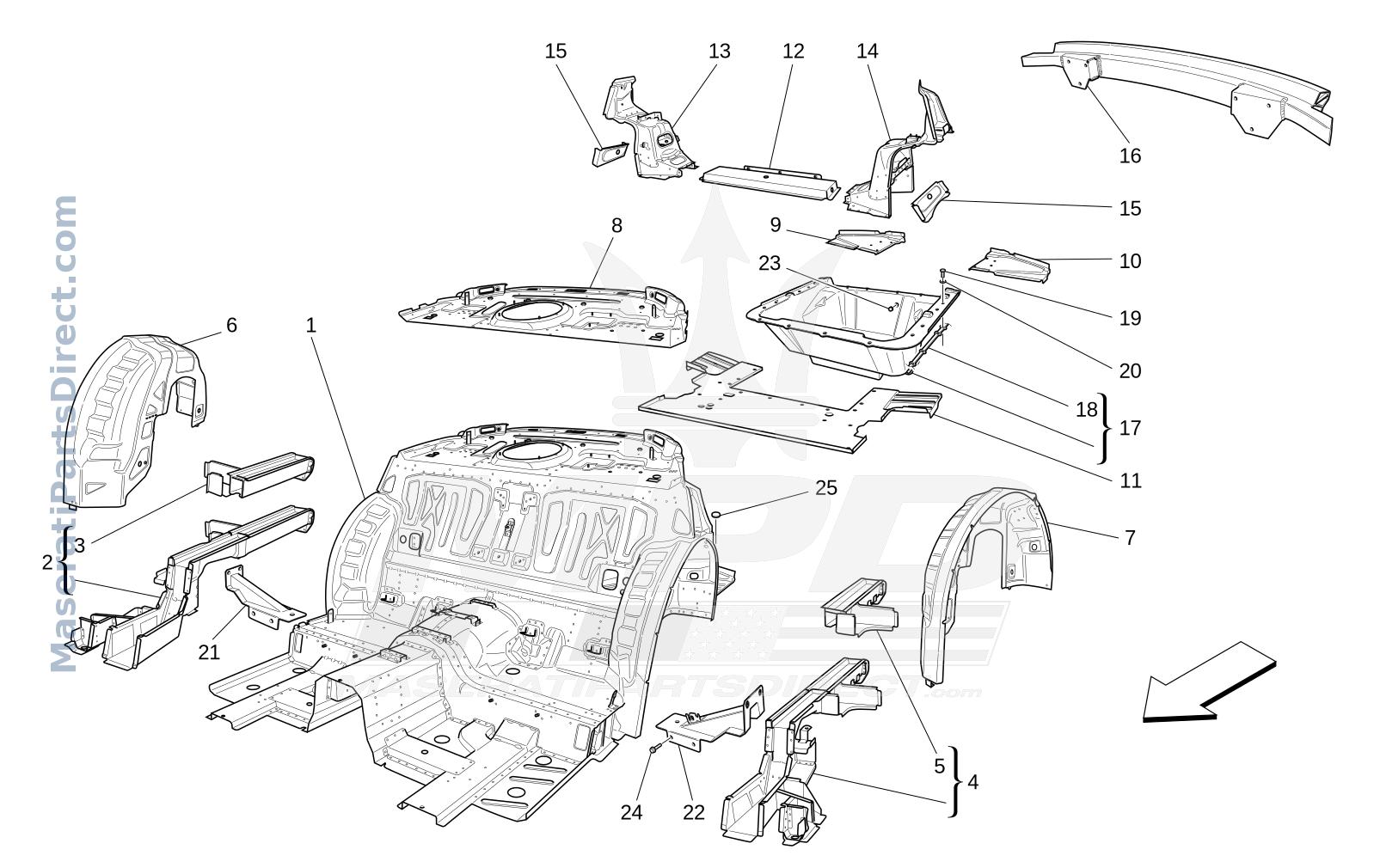

09.05 - 1 - REAR STRUCTURAL FRAMES AND SHEET PANELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1.0	980145371	REAR CHASSIS ASSEMBLY	$12,902.04 Order
2.0	980145046	COMPLETE RH LONGITUDINAL MEMBER	$4,625.60 Order
3.0	980145048	RH REAR STRUT	$6,889.52 Order
4.0	980145047	COMPLETE LH LONGITUDINAL MEMBER	$4,557.37 Order
5.0	980145049	LH REAR STRUT	$6,987.52 Order
6.0	980145050	RH REAR WHEELHOUSE	$2,695.59 Order
7.0	980145051	LH REAR WHEELHOUSE	$2,695.59 Order
8.0	980145052	UNDER REAR WINDOW PANEL	$1,399.67 Order
9.0	66829800	REAR RH SECTION OF REAR FLOOR	$1,971.79 Order
10.0	66829900	REAR LH SECTION OF REAR FLOOR	$1,988.87 Order
11.0	980145053	FRONT SIDE REAR FLOOR	$1,914.89 Order
12.0	67260800	CROSS MEMBER	$418.69 Order
13.0	980145054	RH REAR REINFORCEMENT	$1,318.18 Order
14.0	980145055	LH REAR REINFORCEMENT	$1,318.18 Order
15.0	67276600	REINFORCEMENT SEAL	$521.68 Order
16.0	83790300	CPL REAR BUMPER CROSS MEMBER	$1,984.75 Order
17.0	83499600	SPARE WHEEL COMPARTMENT	$812.60 Order
18.0	83499800	SPARE WHEEL BAY GASKET	$371.99 Order
19.0	13026124	SCREWTCEI M5X18	$11.72 Order
20.0	14446521	WASHERD. 6 -18X1	$10.40 Order
21.0	69054900	RH REINFORCEMENT	$781.77 Order
22.0	83615700	LH REINFORCEMENT	$189.88 Order
23.0	83662900	PLUG	$11.08 Order
24.0	11617324	SCREWTE M8X18	$12.41 Order
25.0	14507687	PLUG	$11.52 Order
