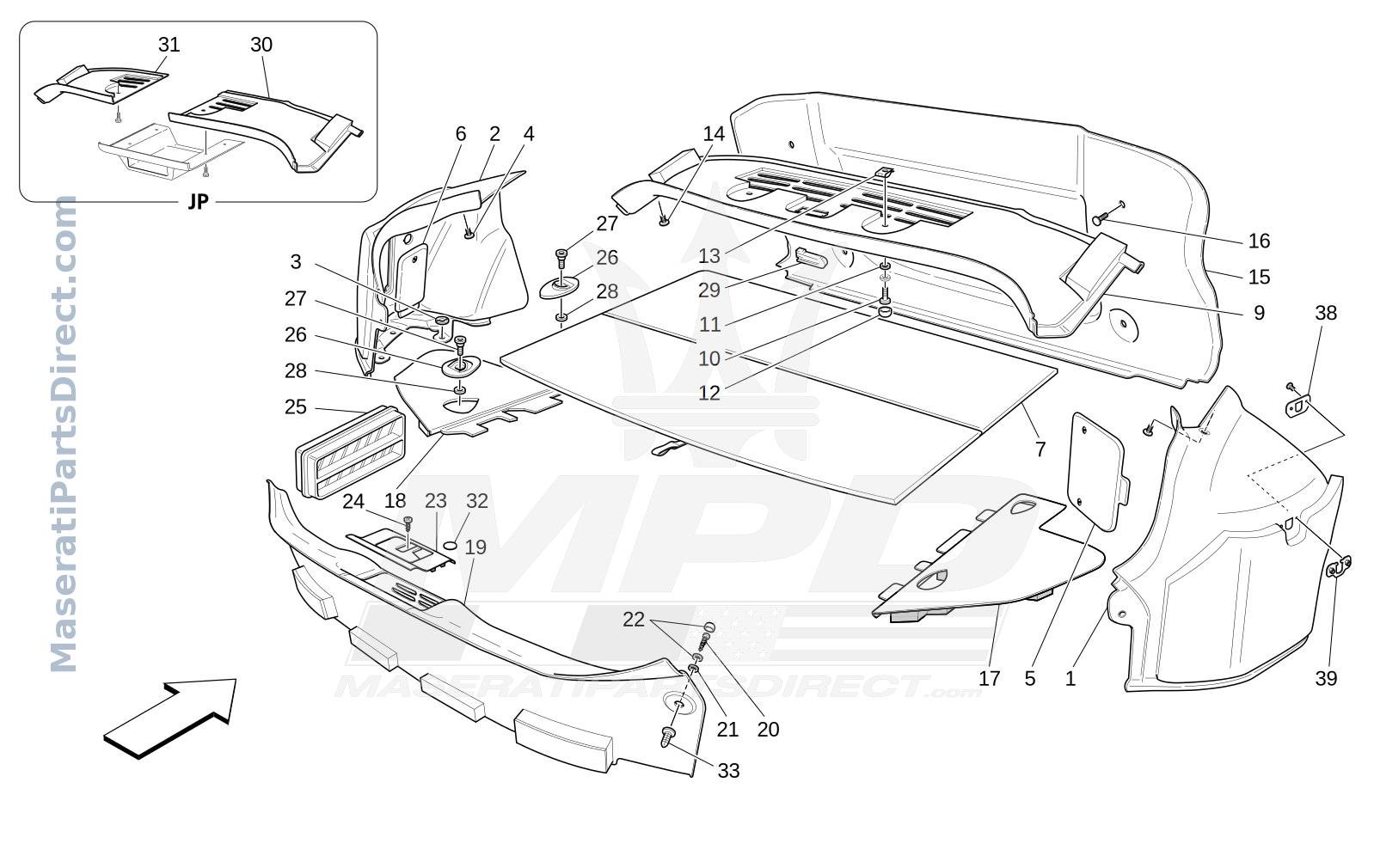

09.61 - 9 - LUGGAGE COMPARTMENT MATS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1.0	876275..	RH LATERAL COVER	$0.00 Order
2.0	684180..	LH LATERAL COVER	$0.00 Order
3.0	81695900	FASTENER BUTTON	$10.62 Order
4.0	80710000	BUTTON	$11.52 Order
4.0	81695800	FASTENER BUTTON	$9.72 Order
5.0	801770..	RH INSPECTION DOOR	$0.00 Order
6.0	801834..	LH INSPECTION DOOR	$0.00 Order
7.0	818306..	COMPLETE TRUNK COMPARTMENT CARPET	$0.00 Order
9.0	684183..	UPPER COVER FOR TANK PANEL	$0.00 Order
10.0	282443	SCREW	$10.62 Order
11.0	13577778	WASHERD. 5,45-15X1,2	$8.64 Order
12.0	68190400	SCREW CAP	$17.50 Order
13.0	67883500	BRACKET	$10.22 Order
14.0	80710000	BUTTON	$11.52 Order
14.0	81695800	FASTENER BUTTON	$9.72 Order
15.0	684185..	LOWER COVER FOR TANK PANEL	$0.00 Order
16.0	80710000	BUTTON	$11.52 Order
16.0	81695800	FASTENER BUTTON	$9.72 Order
17.0	801518..	RH TRUNK COMPARTMENT CARPET	$0.00 Order
18.0	801519..	LH TRUNK COMPARTMENT CARPET	$0.00 Order
19.0	821723..	PROTECTION COVER	$0.00 Order
20.0	282443	SCREW	$10.62 Order
21.0	14446521	WASHERD. 6 -18X1	$10.40 Order
22.0	68190400	SCREW CAP	$17.50 Order
23.0	80004500	TRIM PLATE	$74.54 Order
24.0	15917777	SCREW	$8.64 Order
25.0	84633300	AIR OUTLET PLATE	$55.13 Order
26.0	68000400	TRIM PLATE	$32.09 Order
27.0	67876600	SPECIAL SCREW	$25.23 Order
28.0	12647024	WASHER	$9.20 Order
29.0	60608165	DOMELIGHT	$42.36 Order
32.0	68263300	ABRASION RESISTANT DISC	$9.84 Order
33.0	14115980	BLOCK	$8.64 Order
38.0	87542400	BATTERY-CHARGER CONNECTOR MOUNTING BRACKET	$0.00 Order
39.0	87542200	BATTERY-CHARGER CONNECTOR SUPPORT BRACKET	$40.96 Order
