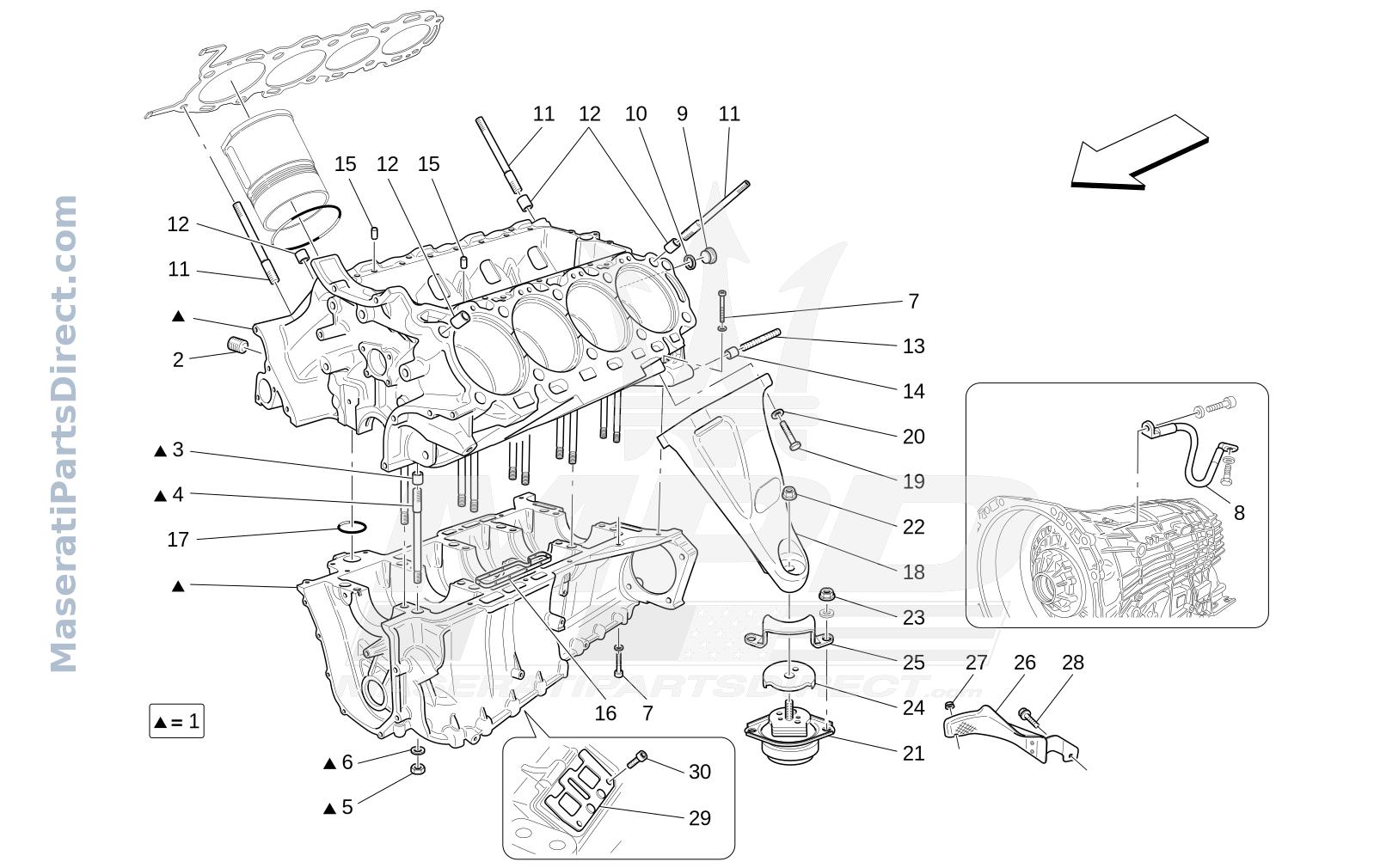

01.00 - 2 - CRANKCASE

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
0	980020009	CRANKCASE GASKET REVISION KIT	$666.91 Order
0	980020010	CRANKCASE GASKET REVISION KIT	$684.76 Order
0	739026040	ENGINE ASSEMBLY	$0.00 Order
0	980020011	HEAD OVERHAUL GASKET KIT	$1,388.31 Order
1	281173	ENGINE BLOCK	$0.00 Order
2	14325340	THREADED PLUG	$25.00 Order
3	176421	CENTERING DOWEL	$30.36 Order
4	217794	STUD	$148.39 Order
4	219800	STUD	$0.00 Order
4	217796	STUD	$148.39 Order
4	219801	STUD	$0.00 Order
5	133988	NUTM10	$10.40 Order
6	178348	WASHERD.10.2-20X2.4	$11.52 Order
7	231620	SCREWM6X25	$5.58 In Stock
7	231623	SCREWM6X40	$8.64 Order
8	268886	CABLE FOR ENGINE-FRAME EARTH	$153.65 Order
9	10304511	THREADED PLUG	$13.88 Order
10	10263460	GASKET	$9.24 Order
11	217968	STUD	$50.83 Order
12	185360	CENTERING DOWEL	$23.23 Order
13	13546234	STUD	$18.87 Order
13	13546434	STUD	$50.52 Order
14	100052	CENTERING DOWEL	$21.48 Order
15	177727	CENTERING DOWEL	$21.24 Order
16	236143	GASKET	$31.49 Order
17	140071	O.R. GASKET	$11.10 Order
18	222317	LH BRACKET FORMOTOR FIXING	$308.37 Order
18	222316	RH BRACKET FORMOTOR FIXING	$308.37 Order
19	11306934	SCREWTE M 10X1,25X 30	$10.40 Order
20	11190574	WASHERD.10.5-20X2.3	$8.64 Order
21	226572	ENGINE SUPPORT FLEXIBLE PAD	$799.54 Order
22	177018	NUT	$9.73 Order
23	177764	NUT	$8.00 Order
24	196590	UPPER PROTECTION FOR ENGINE PAD	$25.90 Order
25	198530	BRACKET	$297.82 Order
26	227526	LH HEAT SHIELD	$248.15 Order
26	227525	RH HEAT SHIELD	$275.80 Order
27	14040614	NUT	$6.21 Order
28	13833011	SCREW	$13.58 Order
29	255138	BLOW BY VALVE ASSEMBLY	$0.00 Order
30	14303123	SCREW	$8.64 Order
