| Ref | Part Number | Description | Price | Qty | |
|---|---|---|---|---|---|
| 1 | 240380 | VACUUM TANK |
$373.86
Order
|
|
|
| 2 | 14059211 | NUTM6 |
$6.21
Order
|
|
|
| 3 |
184363
Replaced by: #315769.0
|
ON/OFF SOLENOID VALVE |
$0.00
Order
|
|
|
| 3 | 315769 | ON/OFF SOLENOID VALVE |
$184.03
Order
|
|
|
| 4 | 14304624 | SCREW |
$8.00
Order
|
|
|
| 5 | 12601174 | WASHERD.5.3-11X0.5 |
$9.72
Order
|
|
|
| 6 | 234410 | SLEEVE |
$0.00
Order
|
|
|
| 7 | 251359 | SLEEVE |
$15.44
Order
|
|
|
| 9 | 181197 | SECONDARY AIR PUMP |
$1,584.58
Order
|
|
|
| 10 | 215965 | AIR PUMP FIXING BRACKET |
$58.90
Order
|
|
|
| 11 | 102948 | NUT |
$11.52
Order
|
|
|
| 12 | 12601274 | WASHERD. 6,40-12X 0,5 |
$8.28
Order
|
|
|
| 13 | 16285924 | SCREW |
$8.64
Order
|
|
|
| 15 | 226356 | CLAMP |
$9.20
Order
|
|
|
| 16 | 241777 | AIR DELIVERY PIPE TO VALVES ASS. |
$437.18
Order
|
|
|
| 17 | 219456 | VIBRATION-DAMPING MOUNT |
$12.41
Order
|
|
|
| 18 | 219457 | SPACER |
$67.72
Order
|
|
|
| 19 | 12647727 | WASHER |
$8.64
Order
|
|
|
| 20 | 231618 | SCREWM6X20 |
$6.93
Order
|
|
|
| 22 | 171175 | SECONDARY AIR VALVE |
$352.32
Order
|
|
|
| 23 | 233374 | RH AIR VALVE PIPE |
$328.99
Order
|
|
|
| 24 | 226275 | LH AIR VALVE PIPE |
$774.06
Order
|
|
|
| 25 | 265569 | RH AIR VALVE FIXING BRACKET |
$3,362.17
Order
|
|
|
| 26 | 265568 | LH AIR VALVE FIXING BRACKET |
$3,362.17
Order
|
|
|
| 27 | 186781 | GASKET |
$17.26
Order
|
|
|
| 28 | 231621 | SCREWM6X30 |
$9.20
Order
|
|
|
| 29 | 127494 | WASHER |
$8.64
Order
|
|
|
| 30 | 231616 | SCREWM6X14 |
$9.20
Order
|
|
|
| 32 | 230835 | RUBBER HOSE |
$52.33
Order
|
|
|
| 36 | 10441590 | BRACKET WITH SHEATH |
$9.20
Order
|
|
|
| 37 | 233600 | SCREWM6X12 |
$9.20
Order
|
|
|
| 39 | 236872 | BRACKET |
$114.86
Order
|
|
|
| 40 | 11730424 | SCREW |
$13.58
Order
|
|
|
| 41 | 257691 | 3-WAY UNION |
$11.34
Order
|
|
|
| 42 | 234403 | SLEEVE |
$23.55
Order
|
|
|
| 43 | 253896 | NONRETURN VALVE |
$92.90
Order
|
|
|
| 44 | 165608 | RUBBER HOSE |
$0.00
Order
|
|
|
| 45 | 234410 | SLEEVE |
$0.00
Order
|
|
|
| 46 | 235338 | RIGID PIPE |
$145.53
Order
|
|
|
| 47 | 247860 | UNDERBODY VACUUM PIPE |
$240.80
Order
|
|
|
| 48 |
184363
Replaced by: #315769.0
|
ON/OFF SOLENOID VALVE |
$0.00
Order
|
|
|
| 48 | 315769 | ON/OFF SOLENOID VALVE |
$184.03
Order
|
|
|
| 49 | 14304124 | SCREWM5X12 |
$8.64
Order
|
|
|
| 50 | 12601174 | WASHERD.5.3-11X0.5 |
$9.72
Order
|
|
|
| 51 | 235640 | SLEEVE |
$8.82
Order
|
|
|
| 52 | 257691 | 3-WAY UNION |
$11.34
Order
|
|
|
| 57 | 277199 | LH RUBBER HOSE |
$115.61
Order
|
|
|
| 57 | 277197 | RH RUBBER HOSE |
$120.49
Order
|
|
|
| 58 | 187713 | RETAINING CLIP |
$21.03
Order
|
|
|
| 59 | 209928 | CLIP |
$13.88
Order
|
|

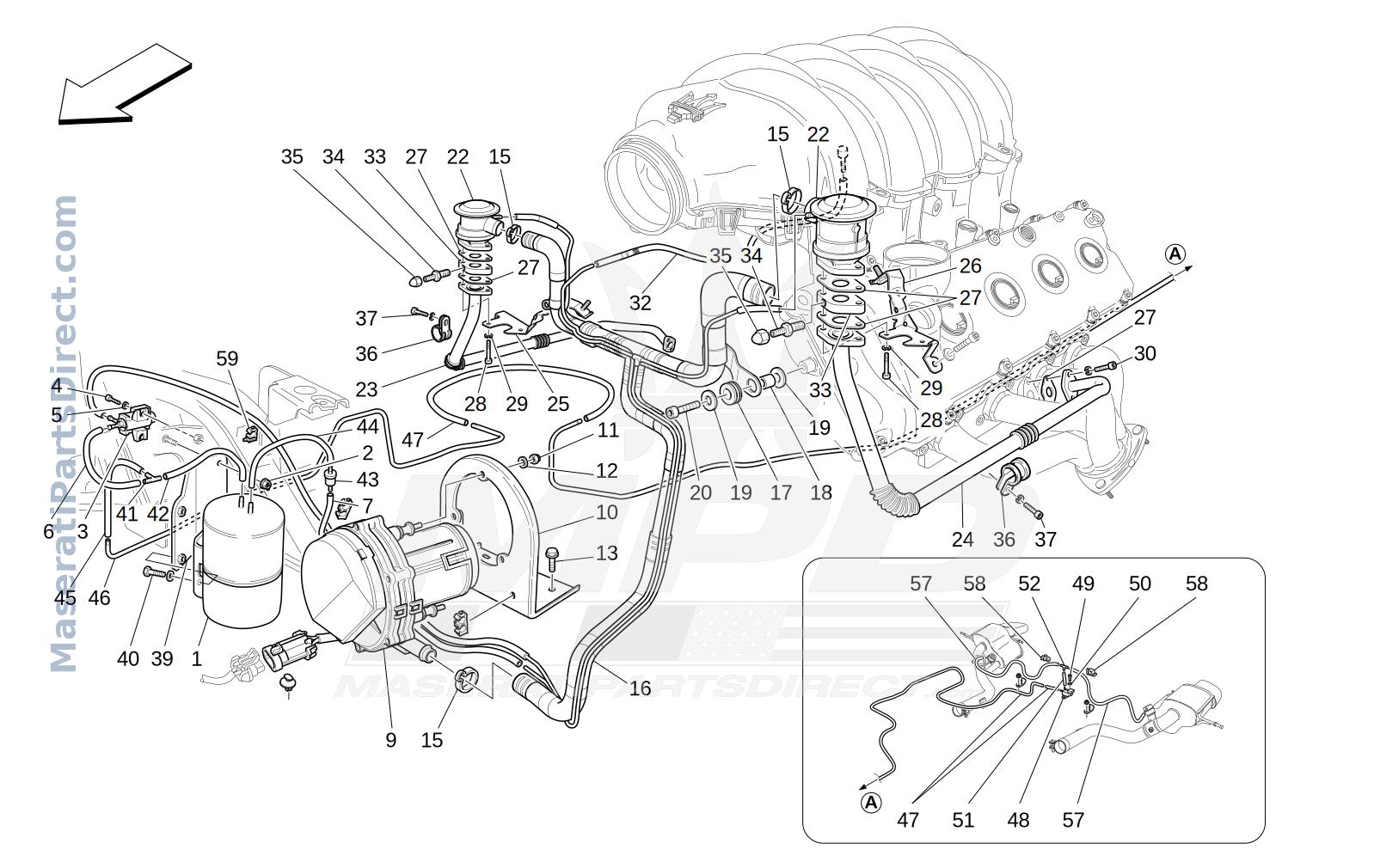

| SVG Path | GranT2018-01-50-1-additional-air-system-MC_S.svg |
|---|---|
| SVG Width | 799.000000 |
| SVG Height | 505.000000 |
