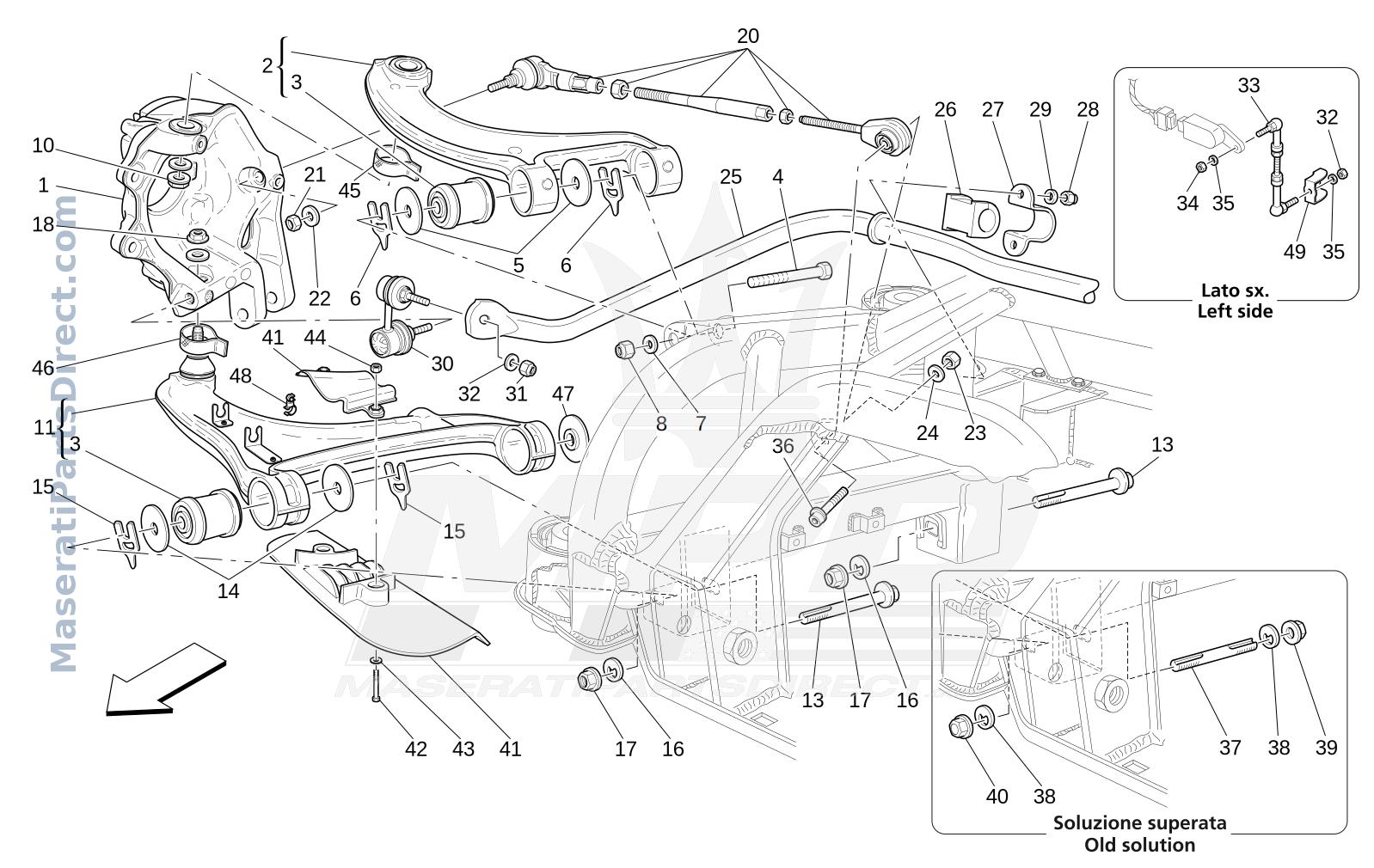

06.20 - 1 - REAR SUSPENSION

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
0	980139918	LH REAR SUSPENSION KIT	$2,886.07 Order
0	980139916	RH REAR SUSPENSION KIT	$2,890.53 Order
1	-	LH REAR HUB HOLDER ASSEMBLYCode is not available separately, order code complete suspension kit	$0.00 Order
1	-	RH REAR HUB HOLDER ASSEMBLYCode is not available separately, order code complete suspension kit	$0.00 Order
2	-	COMPLETE L.H. REAR UPPER LEVERCode is not available separately, order code complete suspension kit	$0.00 Order
2	-	COMPLETE R.H. REAR UPPER LEVERCode is not available separately, order code complete suspension kit	$0.00 Order
3	980139890	REAR SUSPENSION BUSHING KIT	$568.37 Order
4	15541334	SCREW	$20.76 Order
5	194444	WASHER	$11.15 Order
6	198043	SPACER	$16.17 Order
6	198044	SPACER	$15.89 Order
6	198045	SPACER	$16.45 Order
6	198046	SPACER	$10.14 Order
6	198047	SPACER	$10.14 Order
7	14496721	WASHER	$6.21 Order
8	102825	NUT	$11.52 Order
10	245240	NUT	$30.83 Order
11	-	COMPLETE L.H. FRONT REAR LEVERCode is not available separately, order code complete suspension kit	$0.00 Order
11	-	COMPLETE R.H. REAR LOWER LEVERCode is not available separately, order code complete suspension kit	$0.00 Order
13	260766	ECCENTRIC SCREW	$97.06 Order
14	194445	WASHER	$10.76 Order
15	198038	SPACER	$15.89 Order
15	198039	SPACER	$15.37 Order
15	198040	SPACER	$15.09 In Stock
15	198041	SPACER	$13.58 Order
15	198042	SPACER	$16.70 In Stock
15	295191	SPACER	$13.88 Order
16	240877	WASHER	$15.65 Order
17	203795	NUT	$12.41 In Stock
18	245240	NUT	$30.83 Order
18	247308	NUT FOR SUSPENSION LEVER ADJUSTING	$39.45 Order
20	276636	TIE-ROD FOR TOE-IN ADJUSTMENT	$966.07 Order
21	203657	NUT	$11.10 Order
22	12626224	WASHER	$7.65 Order
23	203657	NUT	$11.10 Order
24	12626224	WASHER	$7.65 Order
25	216711	REAR STABILIZER BAR	$1,981.10 Order
26	216731	BAR BUFFER	$45.33 Order
27	191221	PAD FASTENING PLATE	$88.01 Order
28	104030	NUT	$10.40 Order
29	14496524	WASHERD. 8.40-17 X1.6	$6.93 Order
30	259572	BALL TIE ROD	$156.46 $132.99 In Stock
30	259573	BALL TIE ROD	$147.07 Order
31	102742	NUT	$9.84 Order
32	12601474	WASHERD.10,50-21X 1,0	$6.21 Order
33	228958	TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER	$149.38 Order
34	102741	NUT	$7.65 Order
35	14498824	WASHERD.6.4-16.3X1	$9.20 Order
36	16324034	SCREW	$10.80 Order
37	204008	STUD	$149.40 Order
38	240877	WASHER	$15.65 Order
39	203795	NUT	$12.41 In Stock
40	204010	NUT	$21.48 Order
45	386600416	JOINT PROTECTION	$21.52 Order
46	386600416	JOINT PROTECTION	$21.52 Order
47	222203	SPACER	$52.60 Order
48	150738	CLIP	$11.52 Order
49	231274	BRACKET	$36.88 Order
