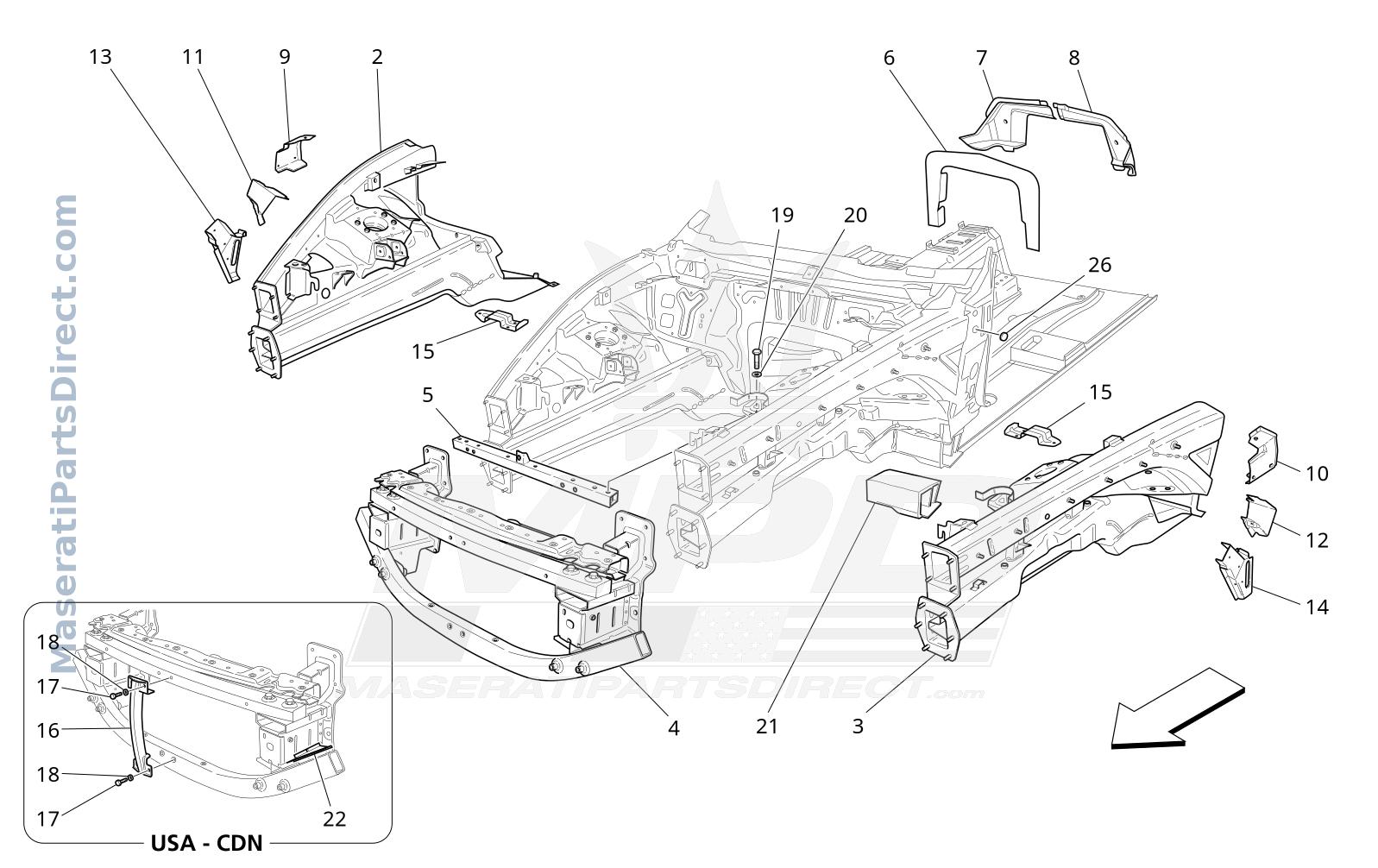

09.03 - 1 - FRONT STRUCTURAL FRAMES AND SHEET PANELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
2	980145042	RH COMPLETE FRONT STRUT	$6,396.39 Order
3	980145043	LH COMPLETE FRONT STRUT	$8,405.01 Order
4	80001900	FRONT BUMPER CROSS MEMBER	$3,999.26 Order
5	67275300	CROSS MEMBER	$441.00 Order
6	66560000	CENTRAL CROSS MEMBER CARPET SHIELD	$169.42 Order
7	67300800	RH CROSS MEMBER	$306.27 Order
8	67300900	LH CROSS MEMBER	$302.81 Order
9	80700500	RH REINFORCEMENT STRUT	$813.16 Order
10	80700600	LH STRUT REINFORCEMENT	$821.01 Order
11	67214400	RH INSERT	$60.83 Order
12	67214500	LH INSERT	$80.70 Order
13	68269900	RH REINFORCEMENT BRACKET	$796.20 Order
14	68270000	LH REINFORCEMENT BRACKET	$796.20 Order
15	67989300	BRACKET	$87.75 Order
16	80423900	CROSS MEMBER CONNECTING ROD	$427.74 In Stock
17	16043524	SCREWTE M 8X 22	$3.85 Order
18	14496524	WASHERD. 8.40-17 X1.6	$6.93 Order
19	11306934	SCREWTE M 10X1,25X 30	$10.40 Order
20	11190574	WASHERD.10.5-20X2.3	$8.64 Order
21	66828700	LH ANGLE BRACKET	$428.02 Order
21	66828600	RH ANGLE BRACKET	$428.02 Order
26	14507787	PLUG	$8.64 Order
