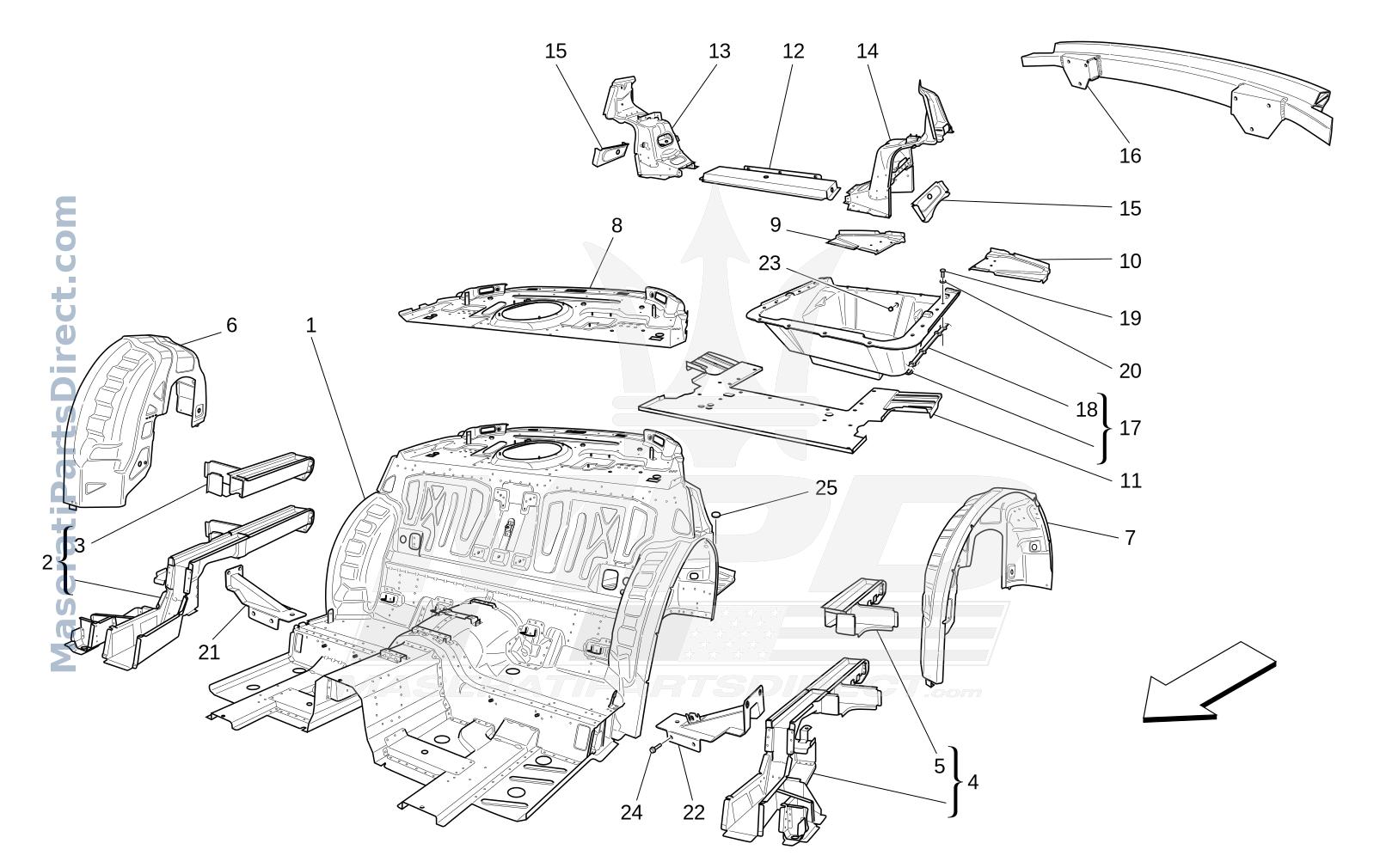

09.05 - 1 - REAR STRUCTURAL FRAMES AND SHEET PANELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	980145371	REAR CHASSIS ASSEMBLY	$12,902.04 Order
2	980145046	COMPLETE RH LONGITUDINAL MEMBER	$4,625.60 Order
3	980145048	RH REAR STRUT	$6,889.52 Order
4	980145047	COMPLETE LH LONGITUDINAL MEMBER	$4,557.37 Order
5	980145049	LH REAR STRUT	$6,987.52 Order
6	980145050	RH REAR WHEELHOUSE	$2,695.59 Order
7	980145051	LH REAR WHEELHOUSE	$2,695.59 Order
8	980145052	UNDER REAR WINDOW PANEL	$1,399.67 Order
9	66829800	REAR RH SECTION OF REAR FLOOR	$1,971.79 Order
10	66829900	REAR LH SECTION OF REAR FLOOR	$1,988.87 Order
11	980145053	FRONT SIDE REAR FLOOR	$1,914.89 Order
12	67260800	CROSS MEMBER	$418.69 Order
13	980145054	RH REAR REINFORCEMENT	$1,318.18 Order
14	980145055	LH REAR REINFORCEMENT	$1,318.18 Order
15	67276600	REINFORCEMENT SEAL	$521.68 Order
16	83790300	CPL REAR BUMPER CROSS MEMBER	$1,984.75 Order
17	83499600	SPARE WHEEL COMPARTMENT	$812.60 Order
18	83499800	SPARE WHEEL BAY GASKET	$371.99 Order
19	13026124	SCREWTCEI M5X18	$11.72 Order
20	14446521	WASHERD. 6 -18X1	$10.40 Order
21	69054900	RH REINFORCEMENT	$781.77 Order
22	83615700	LH REINFORCEMENT	$189.88 Order
23	83662900	PLUG	$11.08 Order
24	11617324	SCREWTE M8X18	$12.41 Order
25	14507687	PLUG	$11.52 Order
