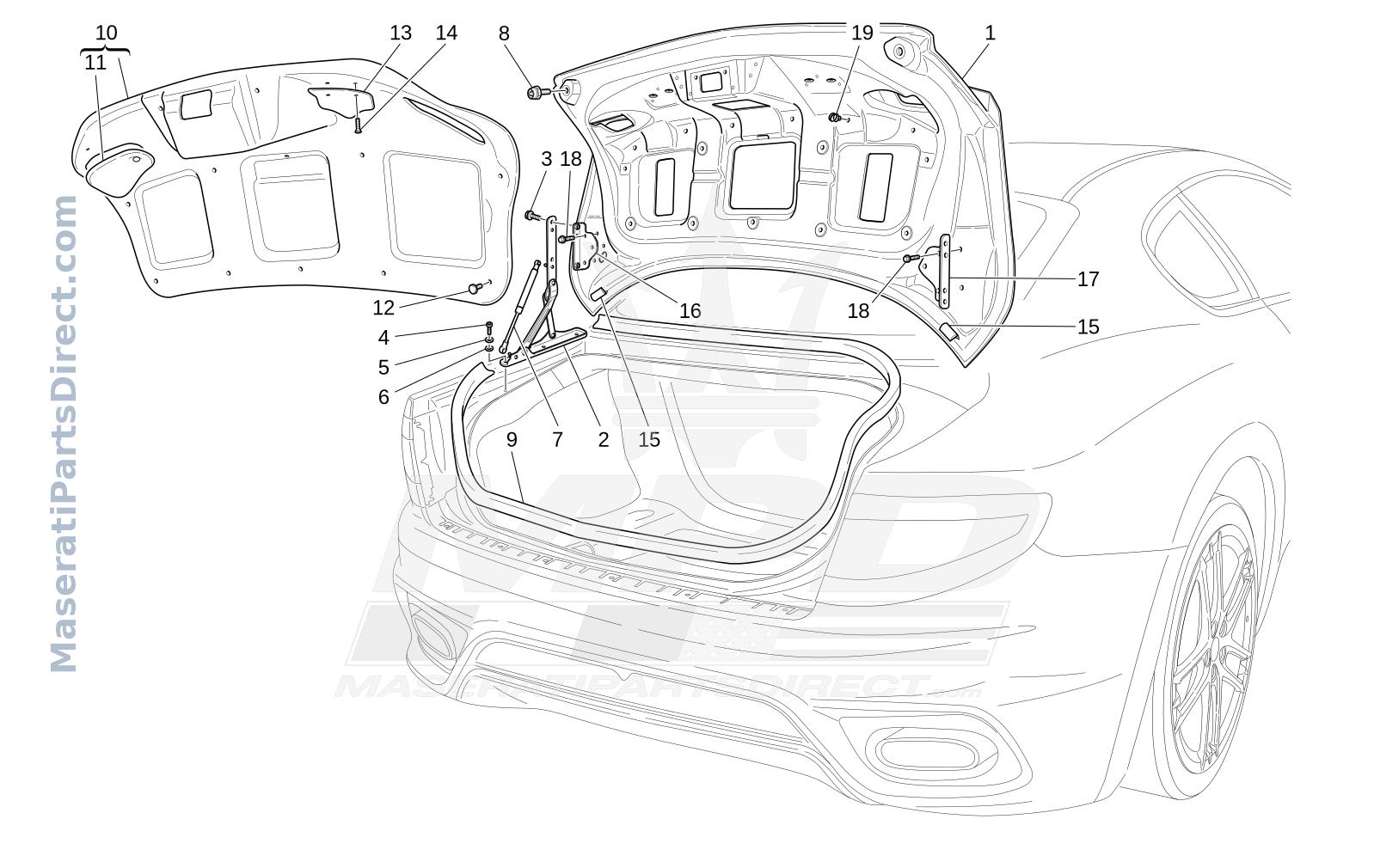

09.21 - 2 - REAR LID

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	89183900	BOOT LID	$6,660.61 Order
2	384700105	REAR LEFT BOOT LID HINGE	$343.85 Order
2	384700106	REAR RIGHT BOOT LID HINGE	$343.85 Order
3	13341021	SCREWTE M6X16	$18.87 Order
4	14300924	SCREWTCEI M6X20	$20.28 Order
5	12647624	WASHERD. 6,45-16X 2	$9.20 Order
6	80623900	WASHER	$39.87 Order
7	69054500	GAS SPRING	$101.29 Order
8	83410300	ANTIVIBRATING PAD	$50.30 Order
9	68442800	GASKET	$232.59 Order
10	801576..	BOOT LID COVER	$0.00 Order
10	803078..	BOOT LID COVER	$0.00 Order
11	684500..	LH DOOR	$0.00 Order
11	684499..	RH DOOR	$0.00 Order
12	80634300	RIVET	$8.64 Order
12	80676100	RIVET	$9.72 Order
13	67957500	HANDLE	$30.13 Order
14	13299877	SCREWM5X25	$9.20 Order
15	80891500	PAD	$74.54 Order
16	69210800	LH BRACKET	$111.41 Order
17	69210700	RH BRACKET	$111.41 Order
18	13341021	SCREWTE M6X16	$18.87 Order
19	230824	CLIP	$11.72 Order
