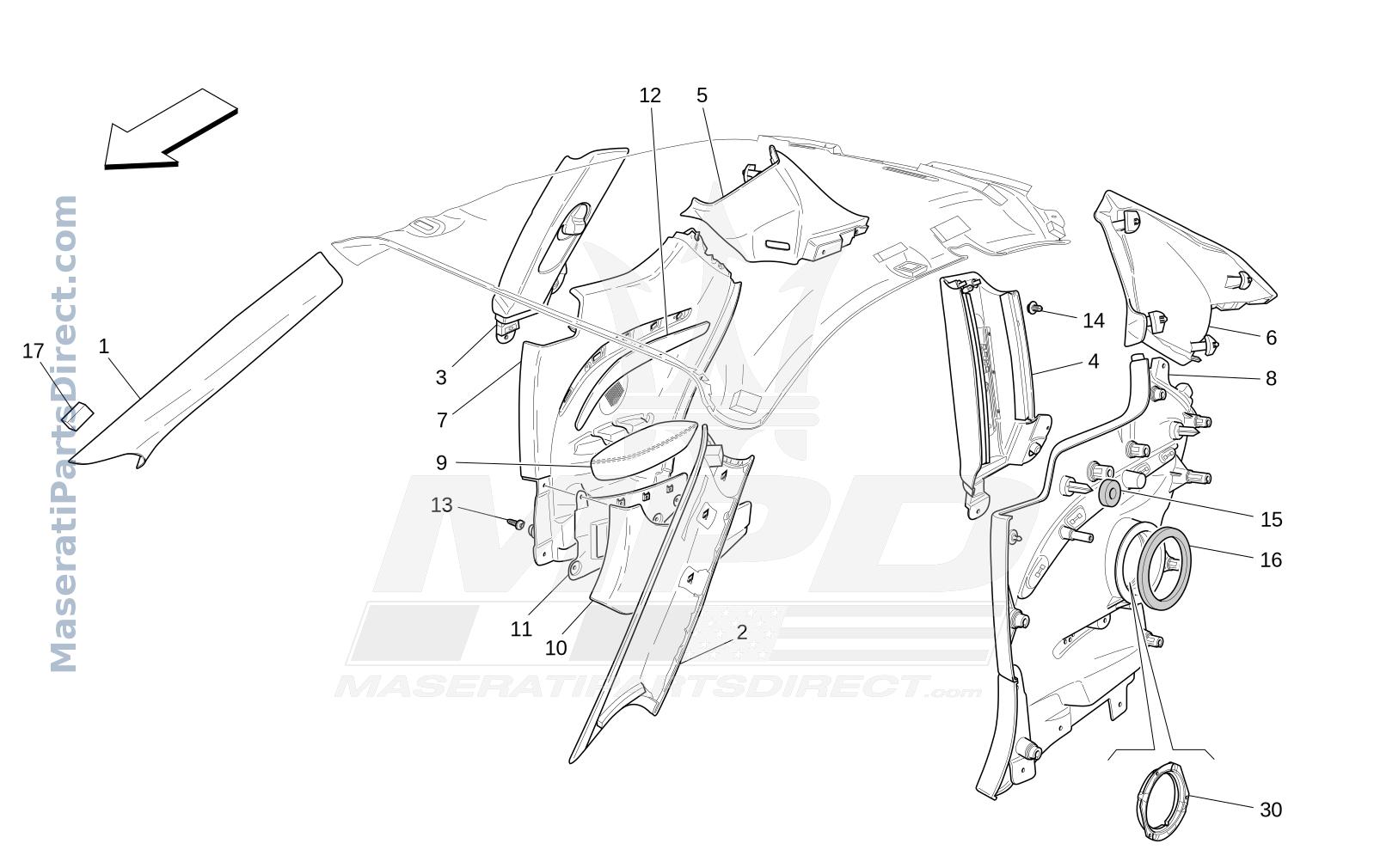

09.44 - 4 - PASSENGER COMPARTMENT B PILLAR TRIM PANELS AND SIDE PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	699838..	COMPLETE R.H. FRONT POST COVERING	$0.00 Order
1	806360..	COMPLETE R.H. FRONT POST COVERINGAlcantara	$0.00 Order
2	699837..	COMPLETE L.H. FRONT POST COVERING	$0.00 Order
2	806361..	COMPLETE L.H. FRONT POST COVERINGAlcantara	$0.00 Order
3	684278..	COMPLETE R.H. CENTRAL POST COVERING	$0.00 Order
3	806362..	COMPLETE R.H. CENTRAL POST COVERINGAlcantara	$0.00 Order
4	684279..	COMPLETE L.H. CENTRAL POST COVERING	$0.00 Order
4	806363..	COMPLETE L.H. CENTRAL POST COVERINGAlcantara	$0.00 Order
5	684280..	REAR RH PILLAR COVER GUARD	$0.00 Order
5	806364..	REAR RH PILLAR COVER GUARDAlcantara	$0.00 Order
6	684281..	REAR LH PILLAR COVER GUARD	$0.00 Order
6	806365..	REAR LH PILLAR COVER GUARDAlcantara	$0.00 Order
7	893733..	COMPLETE RH. REAR LATERAL COVERINGBenova Leather	$0.00 Order
8	893735..	COMPLETE LH. REAR LATERAL COVERINGBenova Leather	$0.00 Order
9	959645...	LH ARM-REST	$0.00 Order
9	687073..	LH ARM-RESTLeather	$0.00 Order
9	835006..	LH ARM-RESTAlcantara	$0.00 Order
9	959644...	RH ARM-REST	$0.00 Order
9	687072..	RH ARM-RESTLeather	$0.00 Order
9	835008..	RH ARM-RESTAlcantara	$0.00 Order
10	687068..	LH POCKET	$0.00 Order
10	96961....	LH POCKETAvailable with OPT: LEGT or DUAP	$0.00 Order
10	687066..	RH POCKET	$0.00 Order
10	96960....	RH POCKETAvailable with OPT: LEGT or DUAP	$0.00 Order
11	68707100	LH MAP POCKET LINING	$190.30 Order
11	68707000	RH MAP POCKET LINING	$190.30 Order
12	687075..	COMPLETE L.H. REAR MOULDING	$0.00 Order
12	802516..	COMPLETE L.H. REAR MOULDINGHigh gloss moulding	$0.00 Order
12	824145..	COMPLETE L.H. REAR MOULDINGInterior trimming (Carbon)	$0.00 Order
12	692326..	COMPLETE L.H. REAR MOULDINGInterior trimming - For MOONWOOD moulding P/N refer to bulletin PPD 05/2014	$0.00 Order
12	687074..	COMPLETE R.H. REAR MOULDING	$0.00 Order
12	802515..	COMPLETE R.H. REAR MOULDINGHigh gloss moulding	$0.00 Order
12	824144..	COMPLETE R.H. REAR MOULDINGInterior trimming (Carbon)	$0.00 Order
12	692325..	COMPLETE R.H. REAR MOULDINGInterior trimming - For MOONWOOD moulding P/N refer to bulletin PPD 05/2014	$0.00 Order
13	980145155	PIN	$14.00 Order
14	980145182	PIN	$34.72 Order
15	980145342	GASKET	$41.83 Order
16	980145343	GASKET	$44.69 Order
17	67710400	SPACER	$11.55 Order
30	89406600	ADAPTER	$0.00 Order
