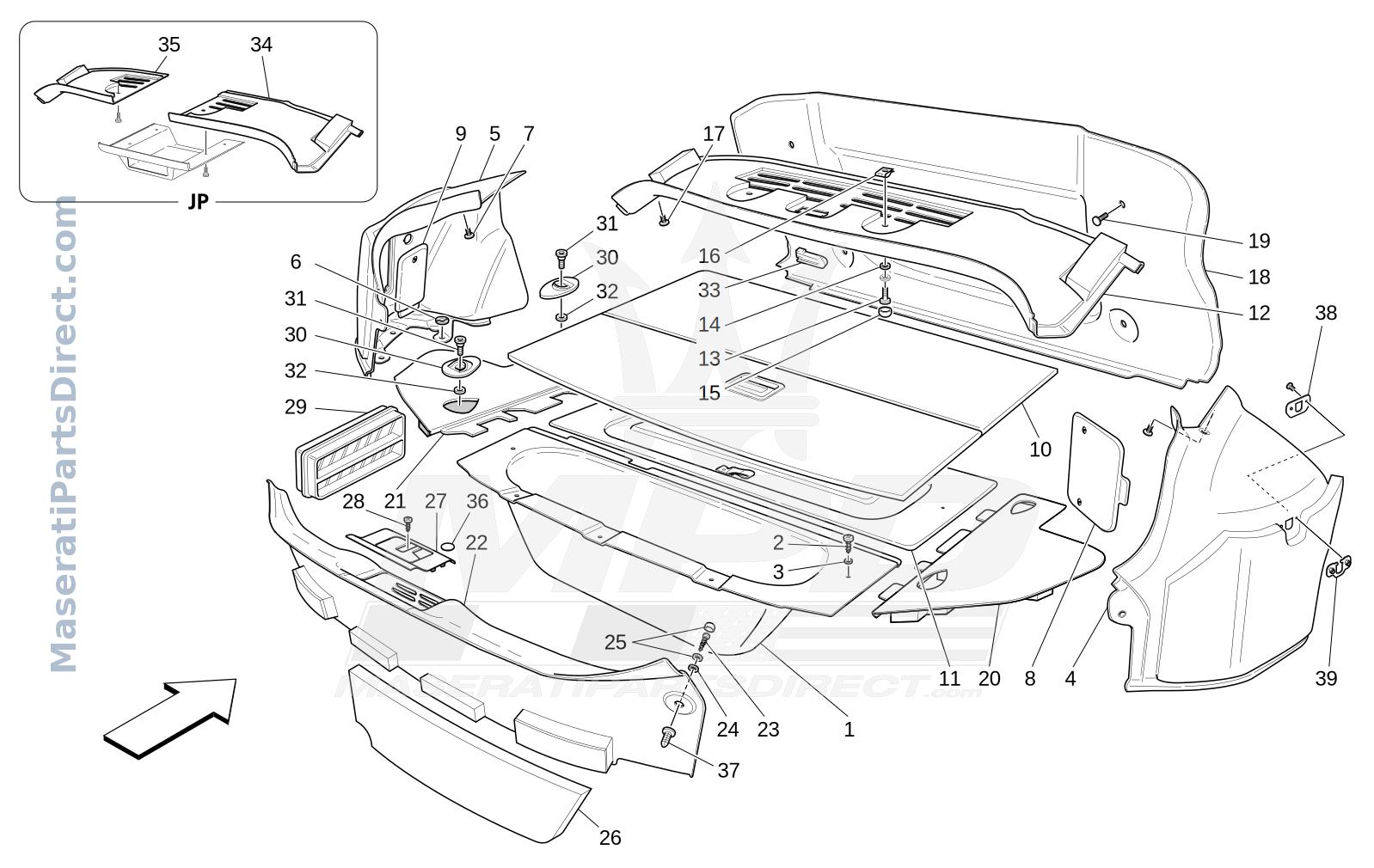

09.61 - 12 - LUGGAGE COMPARTMENT MATS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	836044..	BATTERY COVERING STEP	$0.00 Order
2	13273877	SCREW	$9.20 Order
3	13577778	WASHERD. 5,45-15X1,2	$8.64 Order
4	876275..	RH LATERAL COVER	$0.00 Order
5	684180..	LH LATERAL COVER	$0.00 Order
6	81695900	FASTENER BUTTON	$10.62 Order
7	80710000	BUTTON	$11.52 Order
7	81695800	FASTENER BUTTON	$9.72 Order
8	801770..	RH INSPECTION DOOR	$0.00 Order
9	801834..	LH INSPECTION DOOR	$0.00 Order
10	818306..	COMPLETE TRUNK COMPARTMENT CARPET	$0.00 Order
11	801517..	BATTERY COMPARTMENT INSPECTION DOOR	$0.00 Order
12	684183..	UPPER COVER FOR TANK PANEL	$0.00 Order
13	282443	SCREW	$10.62 Order
14	13577778	WASHERD. 5,45-15X1,2	$8.64 Order
15	68190400	SCREW CAP	$17.50 Order
16	67883500	BRACKET	$10.22 Order
17	80710000	BUTTON	$11.52 Order
17	81695800	FASTENER BUTTON	$9.72 Order
18	684185..	LOWER COVER FOR TANK PANEL	$0.00 Order
19	80710000	BUTTON	$11.52 Order
19	81695800	FASTENER BUTTON	$9.72 Order
20	801518..	RH TRUNK COMPARTMENT CARPET	$0.00 Order
21	801519..	LH TRUNK COMPARTMENT CARPET	$0.00 Order
22	839933..	PROTECTION COVER	$0.00 Order
23	282443	SCREW	$10.62 Order
24	14446521	WASHERD. 6 -18X1	$10.40 Order
25	68190400	SCREW CAP	$17.50 Order
26	80710100	REAR PADDING	$122.13 Order
27	80004500	TRIM PLATE	$74.54 Order
28	15917777	SCREW	$8.64 Order
29	84633300	AIR OUTLET PLATE	$55.13 Order
30	68000400	TRIM PLATE	$32.09 Order
31	67876600	SPECIAL SCREW	$25.23 Order
32	12647024	WASHER	$9.20 Order
33	60608165	DOMELIGHT	$42.36 Order
36	68263300	ABRASION RESISTANT DISC	$9.84 Order
37	14115980	BLOCK	$8.64 Order
38	87542400	BATTERY-CHARGER CONNECTOR MOUNTING BRACKET	$0.00 Order
39	87542200	BATTERY-CHARGER CONNECTOR SUPPORT BRACKET	$40.96 Order
