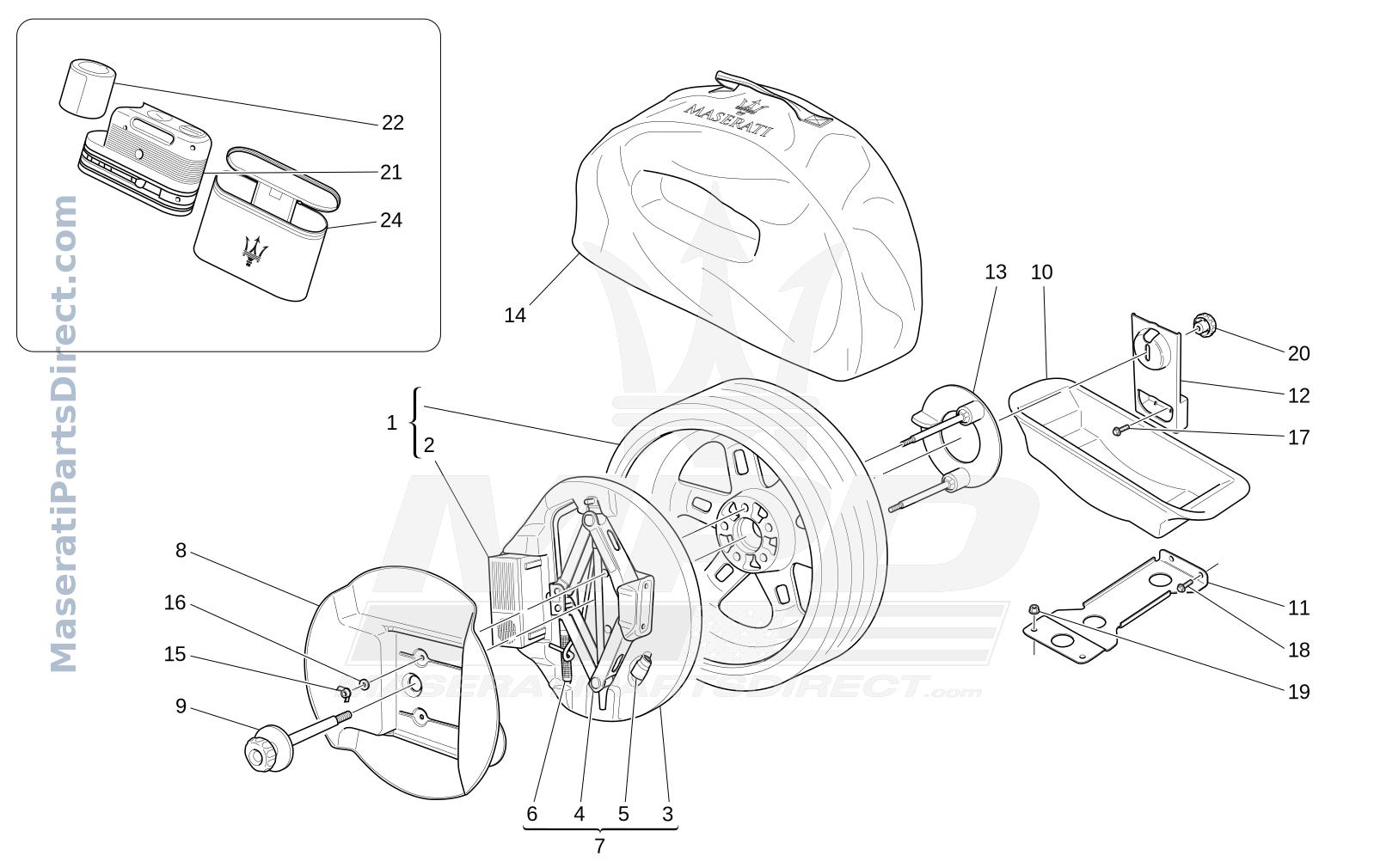

07.30 - 1 - STANDARD PROVIDED

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	235834	SPARE WHEEL ASSEMBLY	$2,896.33 Order
2	237737	PORTABLE AIR COMPRESSOR SET	$542.87 Order
3	257569	POLYURETHANE TO HOLD TOOLS	$0.00 Order
3	265543	POLYURETHANE TO HOLD TOOLS	$87.94 Order
4	265136	JACK	$455.70 Order
4	389800107	JACK	$427.18 Order
5	389800336	SOCKET WRENCH	$53.13 Order
6	389800102	WHEEL STUD WRENCH	$89.93 Order
7	265541	CPL. CONTAINER	$689.74 Order
8	257559	COVER	$158.05 Order
9	260838	TIE ROD	$71.23 Order
10	264484	CONTAINER	$173.78 Order
11	260640	BRACKET	$77.46 Order
12	260856	BRACKET	$216.66 Order
13	257568	FLANGE	$121.28 Order
14	257562	SPARE WHEEL BAG	$100.10 Order
15	10101101	NUT	$9.20 Order
16	12643724	WASHERD 6,15-18X 1,5	$6.21 Order
17	11584821	SCREW	$18.59 Order
18	11584821	SCREW	$18.59 Order
19	14059221	NUT	$11.52 Order
20	372500491	KNOB	$25.67 Order
21	670032461 Replaced by: #673007158.0	COMPRESSOR TIRE INFLATION	$143.07 Order
21	673007343	COMPRESSOR TIRE INFLATION	$237.62 Order
22	673007053	SEALANT 500	$0.00 Order
22	673007054	SEALANT 500	$0.00 Order
22	673007055	SEALANT 500	$0.00 Order
22	673007056	SEALANT 500	$0.00 Order
22	673007057	SEALANT 500	$0.00 Order
22	673007058	SEALANT 500	$0.00 Order
22	673007059	SEALANT 500	$0.00 Order
22	673007060	SEALANT 500	$189.73 Order
24	673009141	500 COMPRESSOR BAG	$103.43 Order
