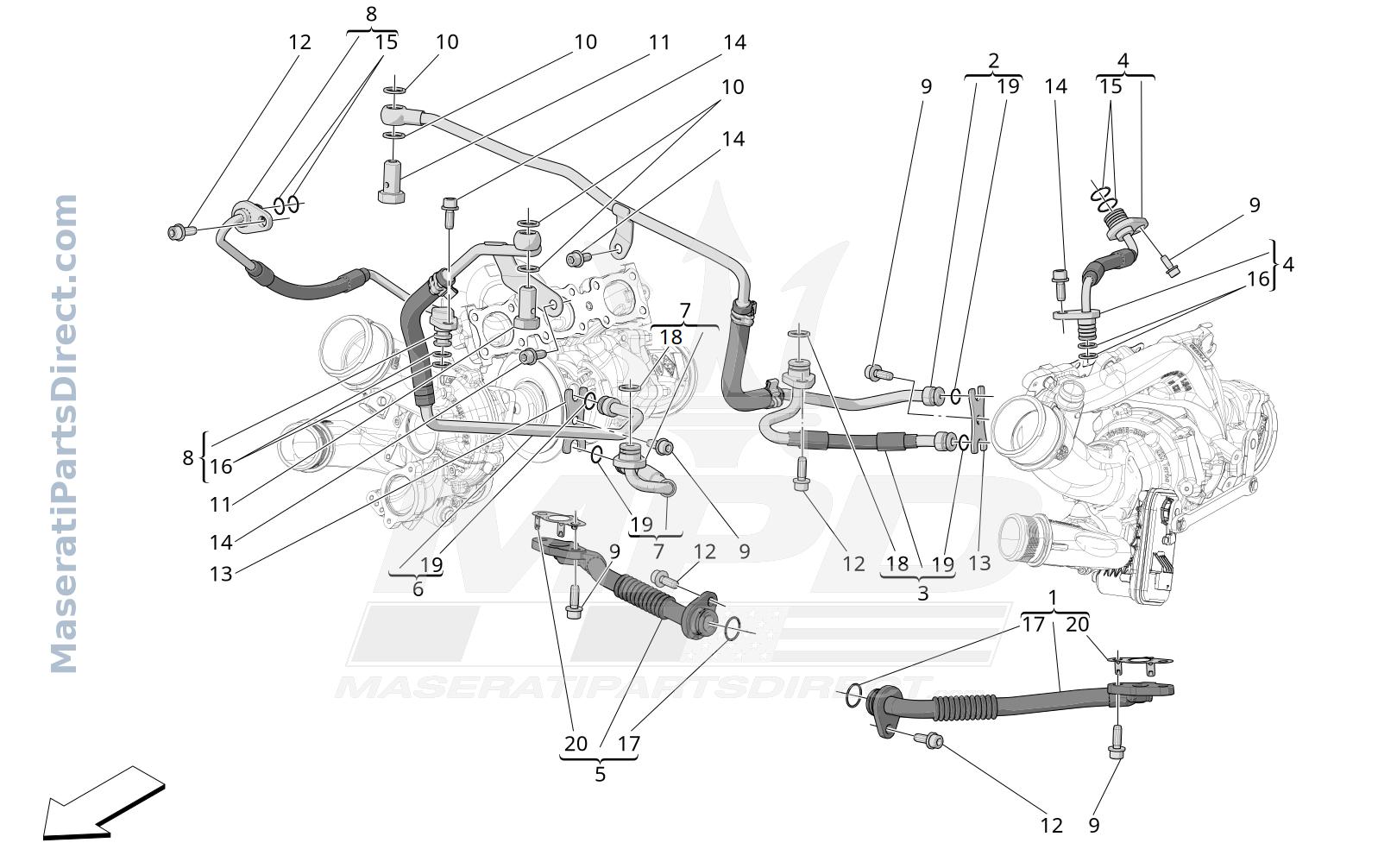

01.31 - 1 - TURBOCHARGING SYSTEM: LUBRICATION AND COOLING

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670053966	OIL RECOVERY PIPE FROM LH TURBINE	$264.73 Order
2	670054267	WATER RETURN PIPE FROM LH TURBINE	$0.00 Order
3	670054269	WATER DELIVERY PIPE TO LH TURBINE	$0.00 Order
4	670053255	OIL DELIVERY PIPE TO LH TURBINE	$0.00 Order
5	670053965	OIL RECOVERY PIPE FROM RH TURBINE	$264.73 Order
6	670054270	WATER RETURN PIPE FROM RH TURBINE	$0.00 Order
7	670054268	WATER DELIVERY PIPE TO RH TURBINE	$0.00 Order
8	670054167	OIL DELIVERY PIPE TO RH TURBINE	$0.00 Order
9	670051105	SCREW	$11.95 Order
10	675001415	GASKET	$9.73 Order
10	670054413	GASKET	$10.62 Order
11	670050209	FILLER NECK	$19.39 Order
12	670051106	SCREW	$10.80 Order
13	670050157	FORK	$21.52 Order
14	670051104	SCREW	$10.00 Order
15	14453181	O.R. GASKET	$10.48 Order
16	191269	GASKET	$12.30 In Stock
17	287722	O.R. GASKET	$9.73 Order
18	14456981	O.R. GASKET	$9.72 Order
19	673013793	O.R. GASKET	$21.72 Order
20	670054147	GASKET	$48.44 Order
