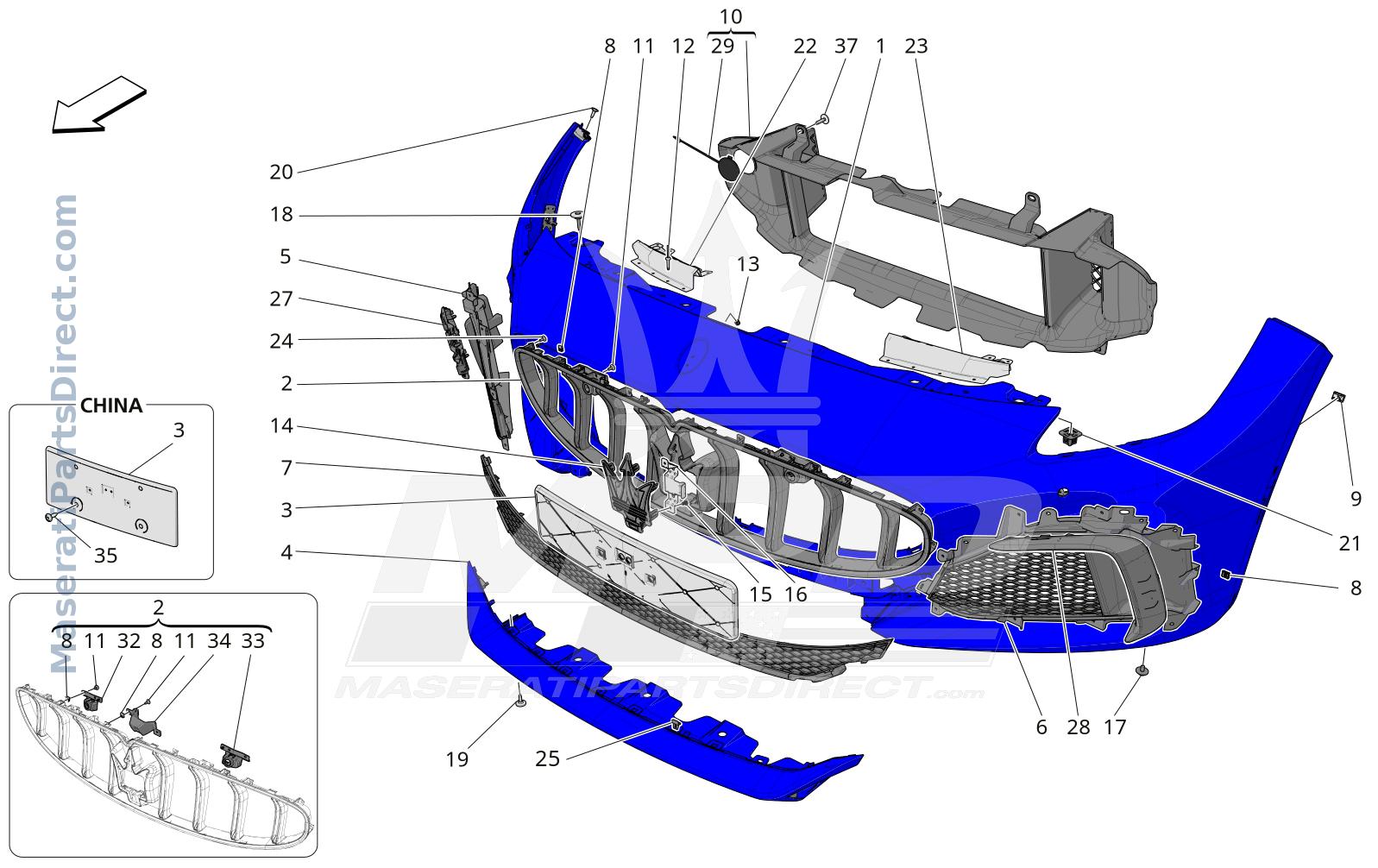

09.10 - 2 - FRONT BUMPER

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	FRONT BUMPER	$0.00 Order
2	custom	FRONT GRILLE ASSEMBLY	$0.00 Order
3	custom	FRONT LICENSE PLATE HOLDER	$0.00 Order
4	custom	COVERING BOTTOM BUMPER	$0.00 Order
5	custom	RH GRILL	$0.00 Order
6	custom	LH GRILL	$0.00 Order
7	custom	LOWER GRILLE	$0.00 Order
8	670154954	CLIP	$9.72 Order
9	675000648	BRACKET	$10.80 Order
10	custom	BUMPER AIR CONVEYOR	$0.00 Order
11	675000497	SCREW	$11.10 Order
12	675002290	RIVET	$9.20 Order
13	675000331	NUT	$10.00 $8.50 In Stock
14	custom	RADAR TRIM	$0.00 Order
15	675000465	SCREWM 5x12	$6.21 Order
16	670174532	BRACKET	$58.70 Order
17	670007383	FASTENER BUTTON	$12.71 In Stock
18	675002287	SCREW	$19.53 Order
19	675001255	SCREW	$10.00 Order
20	675001884	SCREW	$9.73 Order
21	670005535	BLOCK	$12.98 Order
22	custom	RH SIDE REINFORCEMENT	$0.00 Order
23	custom	LH SIDE REINFORCEMENT	$0.00 Order
24	675000733	SCREW	$12.41 Order
25	675002288	CLIP	$10.62 Order
26	675002035	BRACKET	$10.62 Order
27	custom	RH PLATE	$0.00 Order
28	custom	LH PLATE	$0.00 Order
29	670224984	TOW HOOK CAP	$62.82 Order
32	custom	PARKING SENSOR BRACKET	$0.00 Order
33	custom	PARKING SENSOR BRACKET	$0.00 Order
34	custom	FRONT PLATE CAMERA	$0.00 Order
37	675001066	SCREW	$10.16 Order
