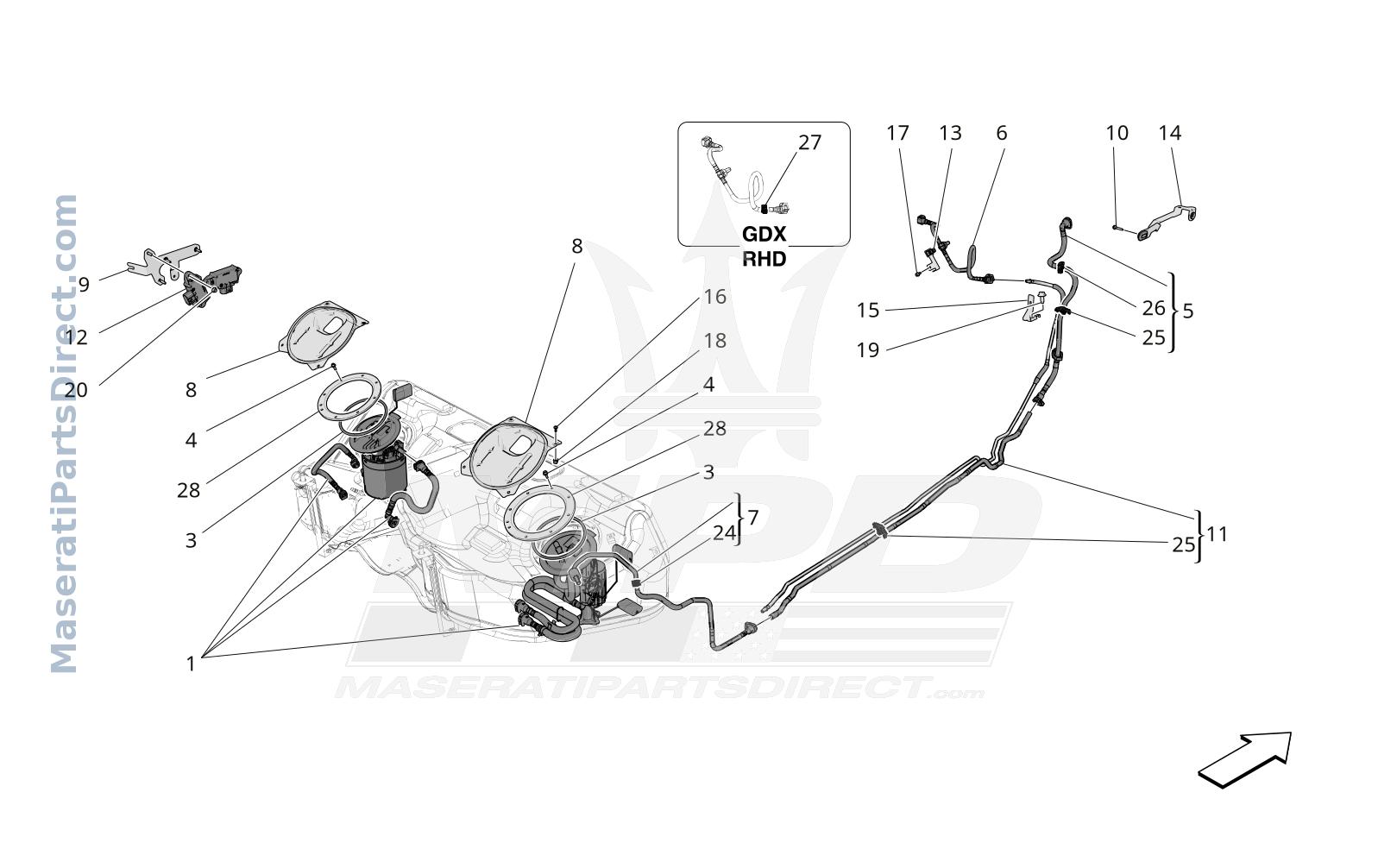

01.43 - 1 - FUEL PUMPS AND CONNECTION LINES

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670354863	KIT FUEL DELIVERY MODULE	$2,838.24 Order
3	675001165	GASKET	$80.70 Order
4	670160697	SCREW	$53.33 Order
5	670219652	FRONT UNDERFLOOR FUEL PIPES	$0.00 Order
6	670296314	ENGINE COMPARTMENT FUEL PIPES	$392.05 Order
7	670158421	FUEL DELIVERY TUBE	$0.00 Order
8	670293629	INSPECTION COVER	$0.00 Order
9	670219410	CONTROL STATION BRACKET	$0.00 Order
10	675001539	SCREW	$9.84 Order
11	670158422	UNDERFLOOR FUEL PIPES	$0.00 Order
12	675001240	FUEL PUMP ELECTRIC CONTROL UNIT	$316.22 Order
13	670162222	FUEL HOSE BRACKET	$0.00 Order
14	670162224	BRACKET	$0.00 Order
15	670219639	BRACKET	$0.00 Order
16	675000071	SCREW	$9.20 Order
17	670051104	SCREW	$10.00 Order
18	675000452	BLOCK	$6.93 Order
19	675002301	SCREW	$0.00 Order
20	675002241	NUT	$0.00 Order
24	675000076	CLIP	$9.20 Order
25	670213366	CLIP	$0.00 Order
26	670100118	CLIP	$13.28 Order
28	670160696	RING NUT	$127.17 Order
