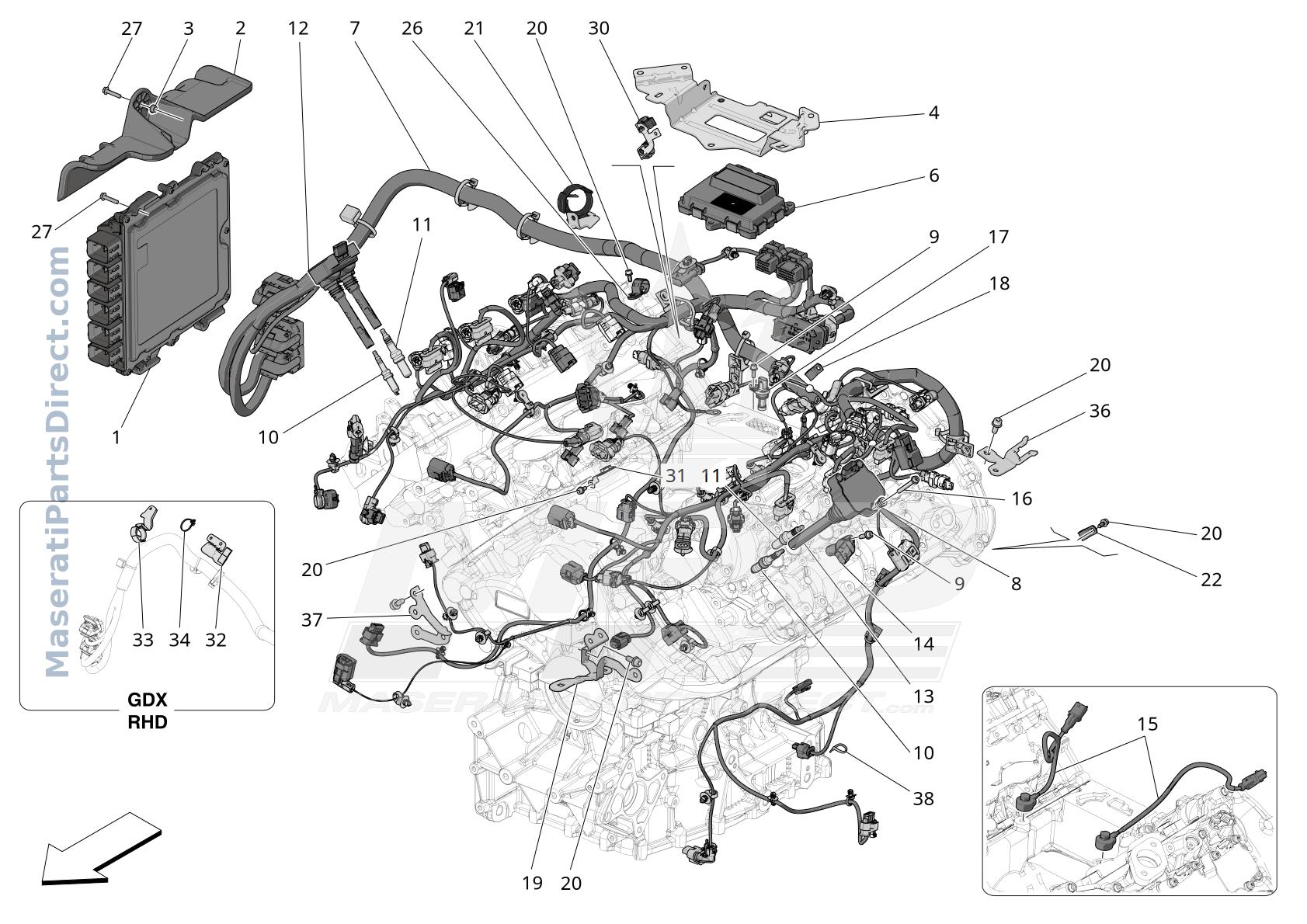

01.90 - 1 - ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670215611	ENGINE CONTROL UNIT	$772.62 Order
2	670215581	SHIELD	$0.00 Order
3	675000969	NUT	$9.73 Order
4	670296254	BRACKET	$0.00 Order
6	670222432	CONTROL MODULE	$2,129.15 Order
7	670054298	ENGINE INJECTION WIRING HARNESS	$2,478.73 Order
8	670053737	BUSHING	$25.46 Order
9	670051106	SCREW	$10.80 Order
10	670053696	SPARK PLUG	$28.43 In Stock
11	670053816	ANTECHAMBER SPARK PLUG	$98.98 In Stock
12	670053658	RH HEAD SIDE IGNITION COIL	$222.07 Order
13	670053659	LH HEAD SIDE IGNITION COIL	$222.07 Order
14	670050422	TIMING SENSOR	$109.48 Order
15	670051424	SENSOR FOR FIRING	$52.88 In Stock
16	670053660	SCREW	$12.98 Order
17	670054301	ANGULAR SPEED SENSOR	$170.10 Order
18	670050340	CLIP	$0.00 Order
19	670054227	BRACKET	$0.00 Order
20	670051104	SCREW	$10.00 Order
21	670053784	BRACKET	$0.00 Order
22	670051479	BRACKET	$33.40 Order
26	670050338	CLIP	$40.10 Order
27	675001239	SCREW	$11.55 Order
30	670052916	BRACKET	$0.00 Order
31	670053607	BRACKET	$0.00 Order
36	670052455	BRACKET	$0.00 Order
37	670052945	BRACKET	$0.00 Order
38	670051301	CLAMP	$0.00 Order
