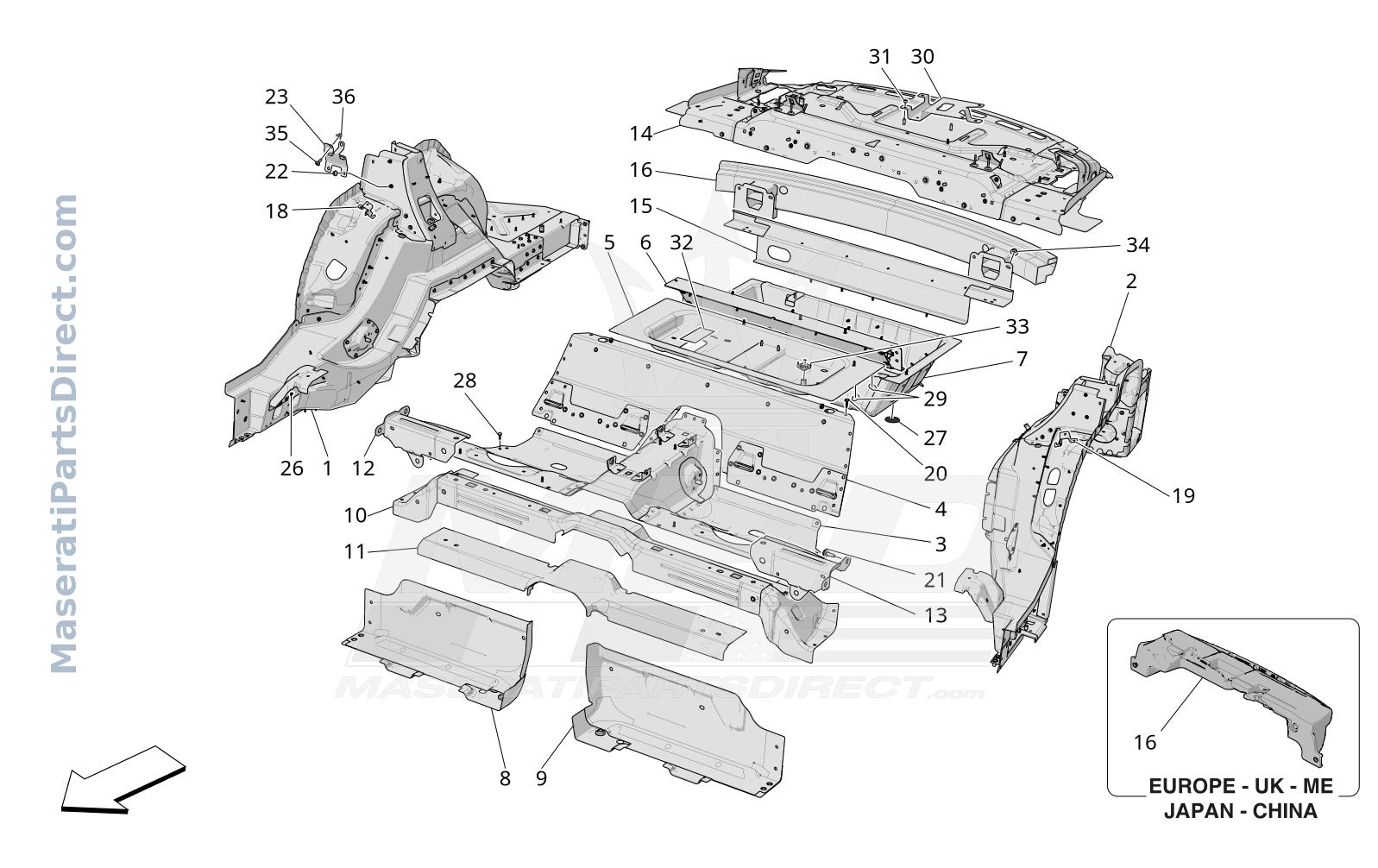

09.05 - 1 - REAR STRUCTURAL FRAMES AND SHEET PANELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673015423	COMPLETE RH LONGITUDINAL MEMBER	$0.00 Order
2	673015422	COMPLETE LH LONGITUDINAL MEMBER	$0.00 Order
3	673015419	INTERMEDIATE REAR FLOOR	$0.00 Order
4	673015427	REAR CROSS MEMBER	$0.00 Order
5	673015429	COMPLETE REAR FLOOR	$0.00 Order
6	673015426	FRONT LONGITUDINAL MEMBER CONNECTING CROSS MEMBER	$0.00 Order
7	673015425	COMPLETE REAR FLOOR	$846.07 Order
8	673015431	RH FLOOR CLOSING PLATE	$0.00 Order
9	673015430	LH FLOOR CLOSING PLATE	$0.00 Order
10	673015420	REAR CROSS PIECE MEMBER	$0.00 Order
11	673015424	REAR CROSS MEMBER	$0.00 Order
12	670172688	RH PILLAR CONNECTION BRACKET	$0.00 Order
13	670172689	LH PILLAR CONNECTION BRACKET	$0.00 Order
14	673015421	REAR UNDER WINDOW PANEL	$0.00 Order
15	673015428	REAR CROSS MEMBER CONNECTING SIDE MEMBERS	$572.27 Order
16	670159834	REAR CROSS MEMBER	$688.08 Order
18	670213303	RH REAR WHEELHOUSE FRONT BRACKET	$0.00 Order
19	670213301	LH REAR WHEELHOUSE FRONT BRACKET	$0.00 Order
20	670007029	SCREW	$0.00 Order
21	675002307	SCREW	$0.00 Order
22	675000095	NUTM6	$8.64 Order
23	670219179	BRACKET	$0.00 Order
26	675001769	PLUG	$9.84 Order
27	670036841	ADHESIVE PLUG	$11.08 Order
28	670174560	SCREW	$0.00 Order
29	670005230	PLUG	$8.28 Order
33	675007422	INSERT	$0.00 Order
34	675002158	NUT	$0.00 Order
35	675000480	SCREW	$8.64 Order
36	675000408	BLOCK	$12.30 Order
