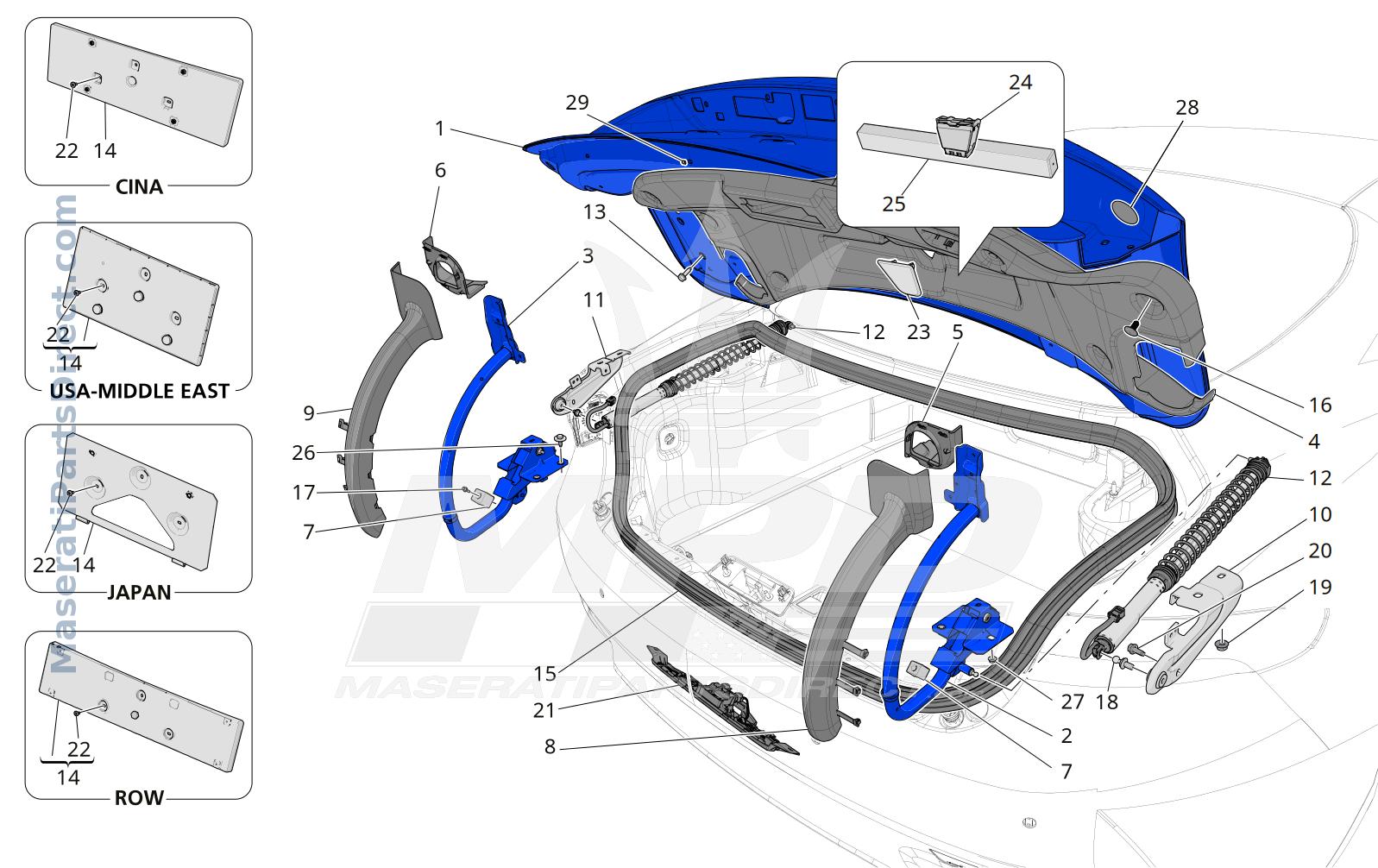

09.21 - 1 - REAR LID

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670311565	COMPLETE REAR DOOR	$0.00 Order
2	670305521	REAR RIGHT BOOT LID HINGE	$0.00 Order
3	670305522	REAR LEFT BOOT LID HINGE	$0.00 Order
4	custom	BOOT LID COVER	$0.00 Order
5	custom	RH SIDE COVER	$0.00 Order
6	custom	LH SIDE COVER	$0.00 Order
7	670311740	PAD	$0.00 Order
8	custom	RH HINGE COVER	$0.00 Order
9	custom	LH HINGE COVER	$0.00 Order
10	670178436	RH BRACKET	$0.00 Order
11	670178437	LH BRACKET	$0.00 Order
12	670158644	REAR BONNET COMPLETE ACTUATOR	$930.05 Order
13	675000736	SCREW	$0.00 Order
14	670158799	REAR LICENSE HOLDER PLATE	$33.80 Order
15	670301117	GASKET	$275.80 Order
16	custom	FASTENER BUTTON6,5X18	$0.00 Order
17	675000246	SCREW	$11.52 Order
18	675000559	BALL PIN	$11.40 Order
19	675000443	NUT	$7.65 Order
20	675002262	SCREW	$0.00 Order
21	670158646	LIFTGATE OPENING SENSOR	$685.99 Order
22	675002098	SCREW	$9.84 Order
23	670162467	PLUG	$0.00 Order
26	670179720	SCREW	$0.00 Order
27	670214268	NUT	$0.00 Order
29	670295862	PLUG	$0.00 Order
