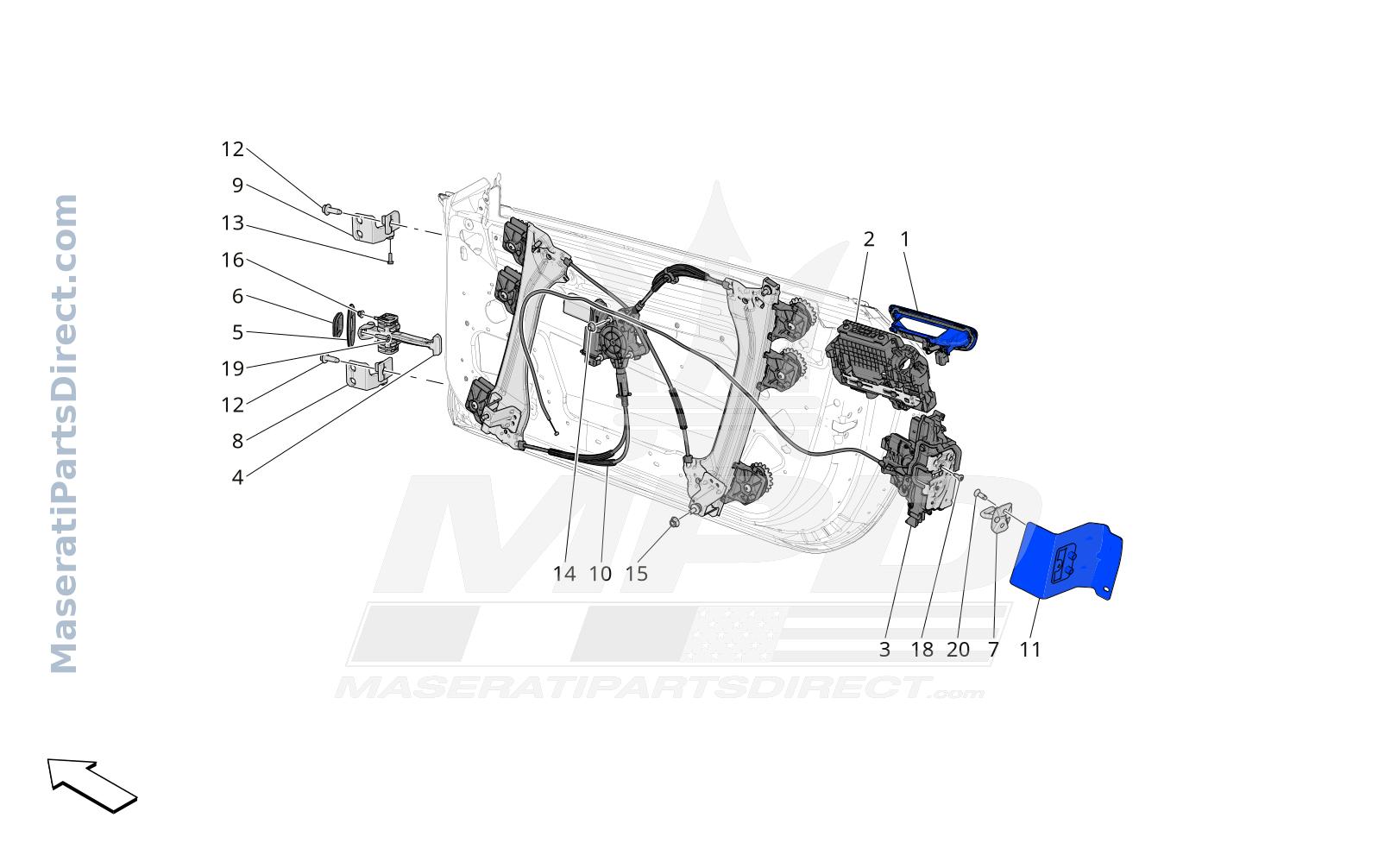

09.29 - 1 - DOORS: MECHANISMS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	LH DOOR OUTER HANDLE	$0.00 Order
1	custom	RH DOOR OUTER HANDLE	$0.00 Order
2	670179542	LH EXTERNAL DOOR HANDLE RETAINING BRACKET	$268.19 Order
2	670157748	RH EXTERNAL DOOR HANDLE RETAINING BRACKET	$337.72 Order
3	670158618	LH DOOR LOCK	$529.41 Order
3	670158639	RH DOOR LOCK	$0.00 Order
4	670303192	TIE ROD	$71.00 Order
5	670177387	GASKET	$10.48 Order
6	670177388	GASKET	$0.00 Order
7	670174459	DOORS LOCK STRIKER	$0.00 Order
8	675000159	LH LOWER HINGE	$50.43 Order
8	675000161	RH LOWER HINGE	$52.55 Order
9	675000160	LH UPPER HINGE	$52.55 Order
9	675000162	RH UPPER HINGE	$93.52 Order
10	670158620	LH FRONT POWER WINDOW	$986.14 Order
10	670158617	RH FRONT POWER WINDOW	$956.97 Order
11	673015441	LH REINFORCEMENT	$0.00 Order
11	673015449	RH REINFORCEMENT	$0.00 Order
12	675000485	SCREWM10	$9.73 Order
13	675000005	SCREWM 8x15	$6.93 Order
14	675000095	NUTM6	$8.64 Order
15	675002292	NUT	$0.00 Order
16	670006983	NUT	$9.20 Order
18	675001327	SCREW	$0.00 Order
19	675002243	SCREW	$9.20 Order
20	675001811	SCREW	$0.00 Order
