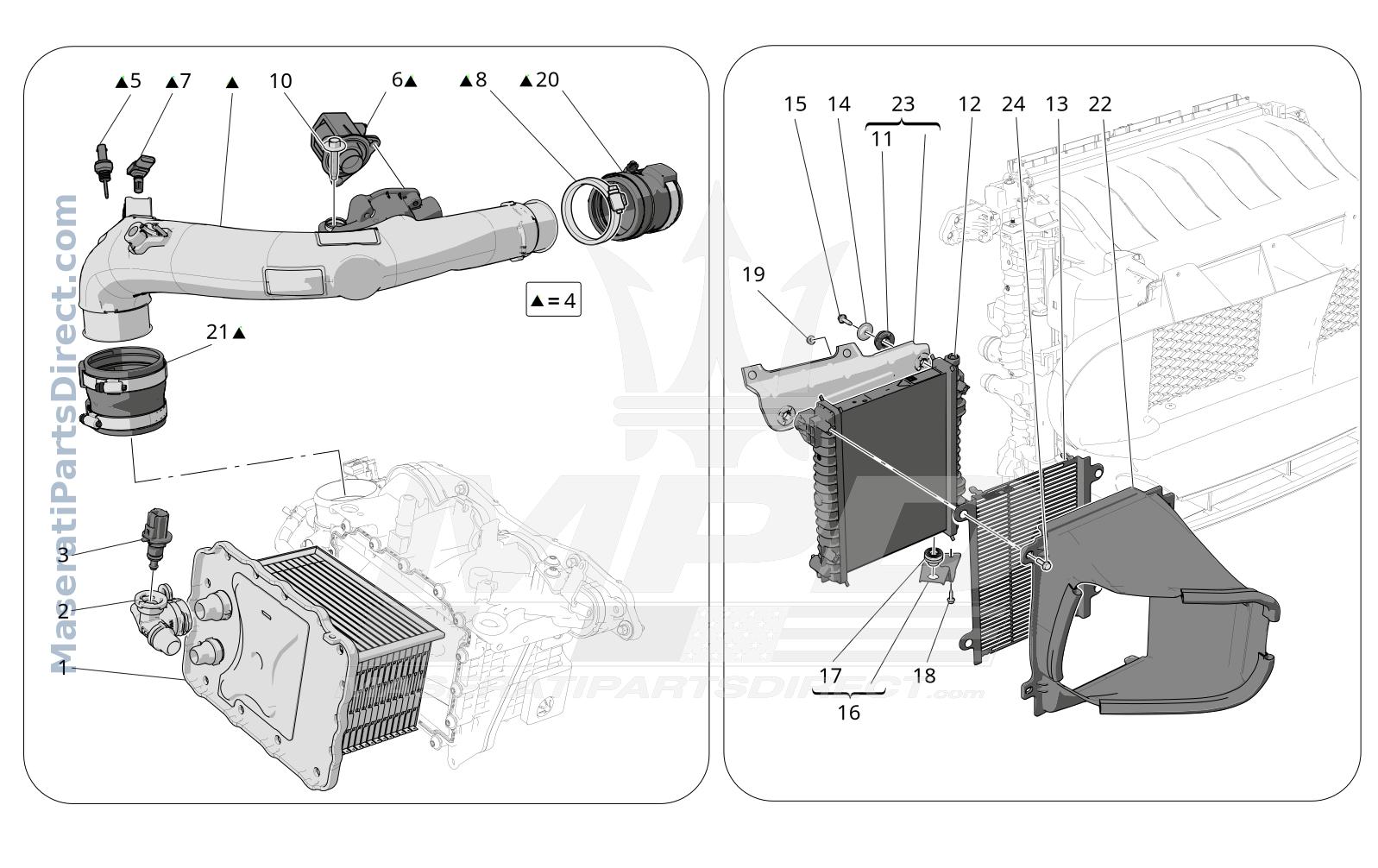

01.32 - 1 - INTERCOOLER SYSTEM

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	675000978	INTERCOOLER	$0.00 Order
2	673013310	SENSOR HOUSING	$0.00 Order
3	675000985	TEMPERATURE SENSOR	$56.10 Order
4	675000989 Replaced by: #675004453	INTERCOOLER AIR DUCT	$915.17 Order
4	675004453	INTERCOOLER AIR DUCT	$1,034.32 Order
5	675000990	AIR TEMPERATURE SENSOR	$101.43 Order
6	675000991	VALVE	$814.76 Order
7	675000992	PRESSURE SENSOR	$485.39 Order
8	675000993	CLAMP	$0.00 Order
10	675000986	SCREW	$0.00 Order
11	675000201	FLEXIBLE PAD	$19.15 Order
12	675001056	RH ENGINE RADIATOR	$770.74 Order
13	670161248	RH RADIATOR GRILLE	$91.27 Order
14	675000409	CUP	$9.24 Order
15	675001048	SCREW	$8.00 Order
16	675001571	RH BRACKET	$45.52 Order
17	675000545	BUSHING	$12.11 Order
18	675001119	SCREW	$8.00 Order
19	675000794	NUT	$11.52 Order
20	675001180	TURBOCHARGER OUTLET INTAKE FLEXIBLE HOSE	$0.00 Order
21	675000994	HOSE	$0.00 Order
22	670156625	RH SIDE AIR DUCT	$171.56 Order
23	675001969	BRACKET	$162.45 Order
24	675002334	SCREW	$44.28 Order
