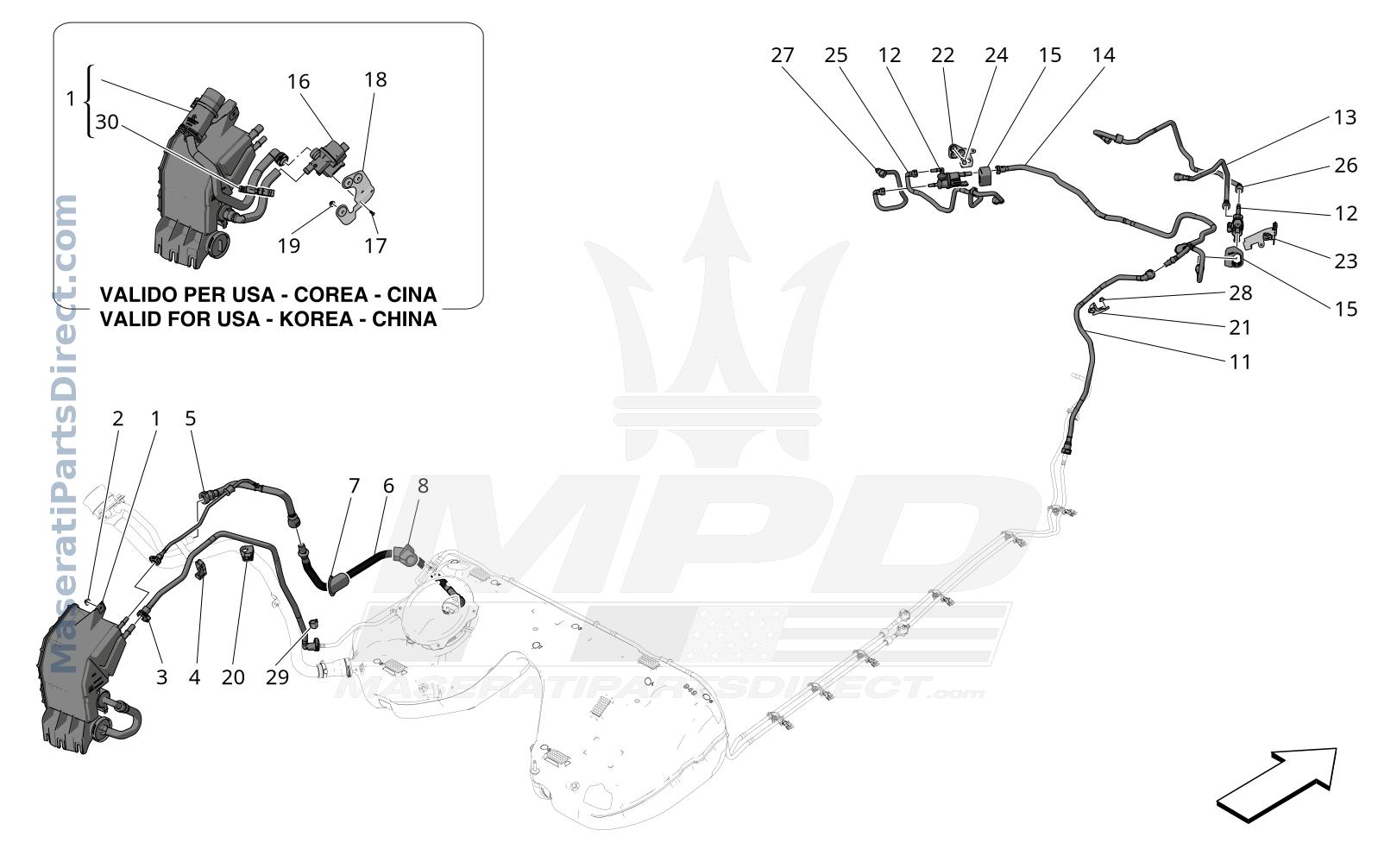

01.44 - 2 - FUEL VAPOUR RECIRCULATION SYSTEM

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670181823	FUEL VAPOUR FILTER	$196.49 Order
2	675001063	NUT	$10.14 Order
3	670160939	PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	$82.74 Order
4	675001782	CLIP	$12.98 Order
5	675001494	HOSE	$133.98 Order
6	675001672	VENT PIPE	$78.63 Order
7	675001783	RUBBER	$38.16 Order
8	675001784	GASKET	$23.66 Order
11	670160948	TUBE FUEL VAPOR	$146.61 Order
12	670162028	SOLENOID VALVE	$86.86 In Stock
13	675002005	RH HOSE FROM SLEEVE TO SOLENOID VALVE	$449.38 Order
13	675002006	RH HOSE FROM SLEEVE TO SOLENOID VALVE	$0.00 Order
14	675001650	HOSE	$607.99 Order
15	675001080	RUBBER	$26.13 Order
16	670002246	DIAGNOSTICS PUMP	$197.91 In Stock
17	675001065	SCREW	$10.14 Order
18	670177968	REAR CONSOLE REAR BRACKET	$68.67 Order
19	675002241	NUT	$0.00 Order
21	675001575	FUEL HOSE BRACKET	$18.59 Order
22	675002033	LH BRACKET	$83.59 Order
23	675002000	RH BRACKET	$93.15 Order
24	675001127	SCREW	$10.14 Order
25	670156746	LH TUBE FROM SOLENOID VALVE TO PLENUM CHAMBER	$107.07 Order
26	675002002	RH TUBE FROM SOLENOID VALVE TO PLENUM CHAMBER	$167.71 Order
27	675002007	LH HOSE FROM SLEEVE TO SOLENOID VALVE	$440.56 Order
27	675002008	LH HOSE FROM SLEEVE TO SOLENOID VALVE	$0.00 Order
28	675001063	NUT	$10.14 Order
29	675001802	CLIP	$10.80 Order
30	670005923	RETAINING CLIP	$15.89 Order
