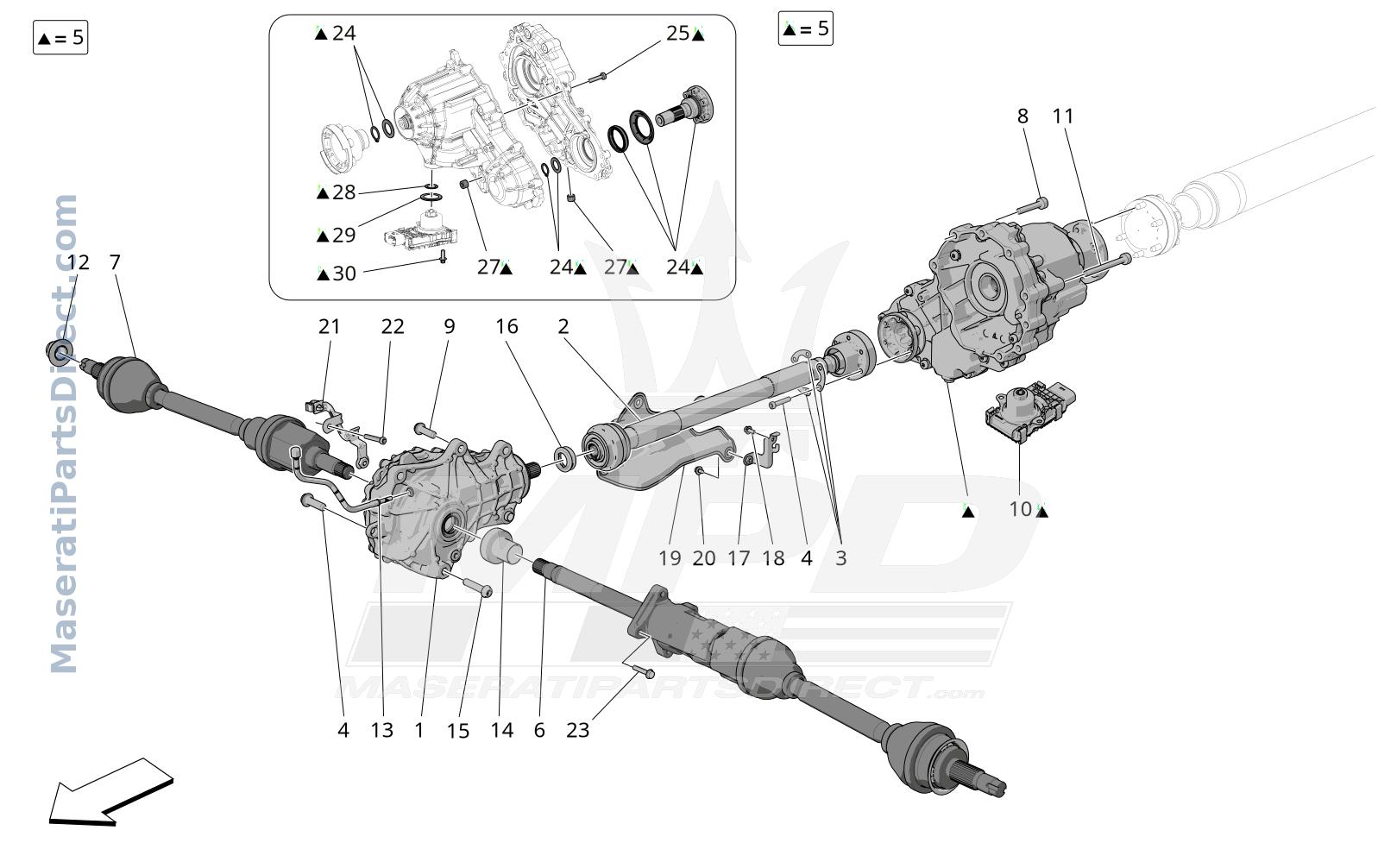

03.22 - 3 - FRONT WHEELS TRANSMISSION

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	675001937	FRONT DIFFERENTIAL	$0.00 Order
2	46341888	FRONT DRIVE SHAFT	$1,702.89 Order
3	670003772	PLATE	$10.40 Order
4	675001857 Replaced by: #670302678	SCREW	$0.00 Order
4	670302678	SCREW	$9.24 Order
5	670154265 Replaced by: #670311641	ALL WHEEL DRIVE TRANSFER CASE	$0.00 Order
5	670311641	ALL WHEEL DRIVE TRANSFER CASE	$0.00 Order
6	675001724	LH AXLE SHAFT ASSEMBLY	$0.00 Order
7	675001722	RH AXLE SHAFT ASSEMBLY	$1,214.10 Order
8	675001849	SCREW	$13.88 Order
9	675001859	SCREW	$15.09 Order
10	670175707	TRANSFER CASE CONTROL UNIT	$0.00 Order
11	675001850	SCREW	$16.70 Order
12	675000138	NUT	$19.15 Order
13	675002077	VENT PIPE	$0.00 Order
14	670051525	BUSHING	$0.00 Order
15	675002078	SCREW	$0.00 Order
16	675000719	GASKET	$11.15 Order
17	675001861	BRACKET	$33.21 Order
18	675001931	SCREW	$9.17 Order
19	46347065	HEAT SHIELD	$48.09 Order
20	675000102	SCREWM6X14	$13.28 Order
21	670052920	BRACKET	$0.00 Order
22	670051104	SCREW	$10.00 Order
23	675001909	SCREW	$10.00 Order
24	673017508	TRANSFER CASE FLANGE KIT	$439.82 Order
25	673017507	TRANSFER CASE FIXING KIT	$0.00 Order
27	673017506	PLUGS KIT	$0.00 Order
28	673015768	O.R. GASKET	$0.00 Order
29	673015772	GASKET	$0.00 Order
30	673015774	SCREW	$0.00 Order
