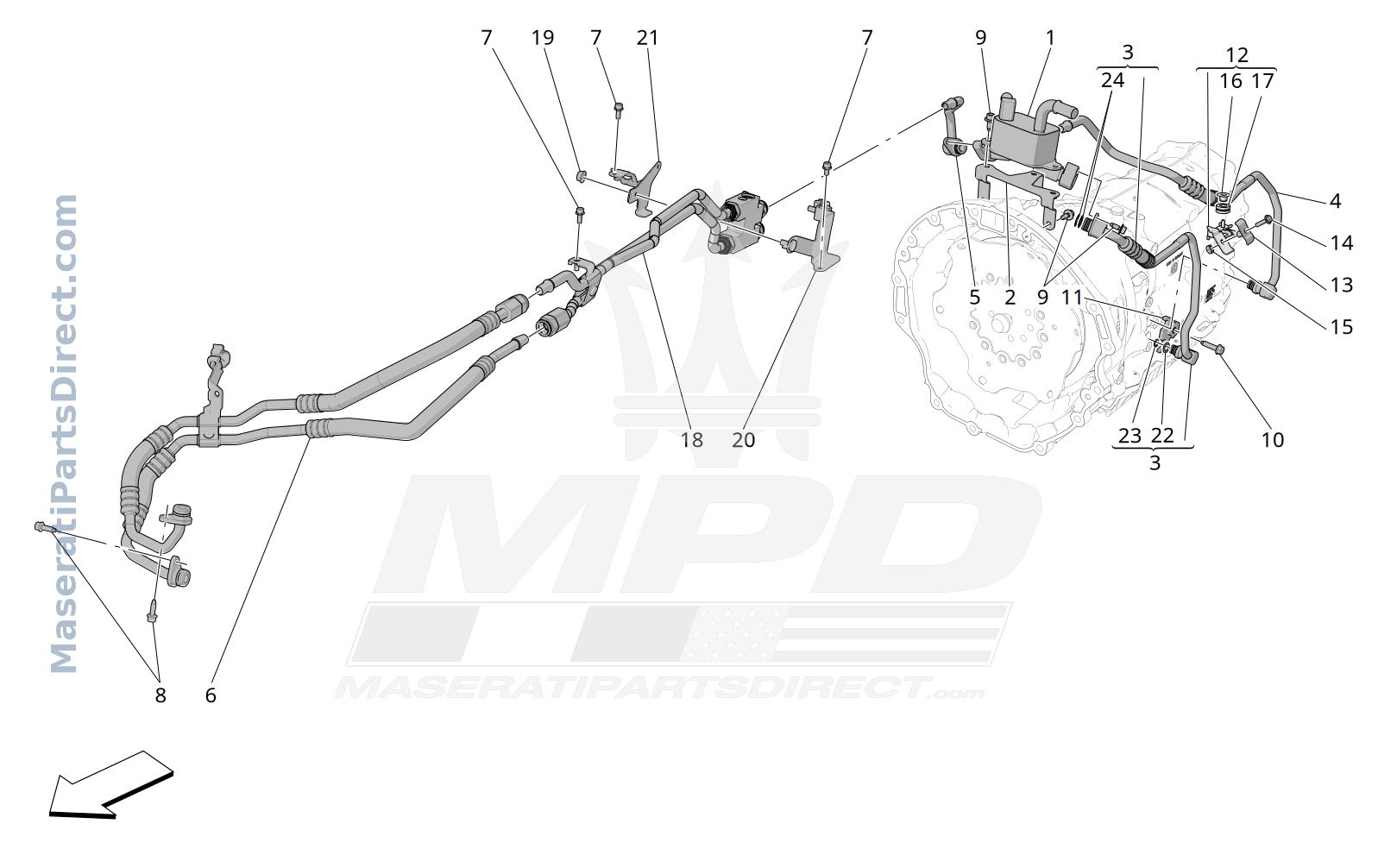

03.50 - 2 - LUBRICATION AND GEARBOX OIL COOLING

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	675001863	OIL HEAT EXCHANGER	$1,036.26 Order
2	675001867	OIL EXCHANGER BRACKET	$50.52 Order
3	675001870	GEARBOX OIL DELIVERY TUBE	$148.92 Order
4	675001871	GEARBOX OIL RETURN TUBE	$216.52 Order
5	675001864	TRANSMISSION OIL COOLING TUBE	$100.14 Order
6	675002072	CONDENSER OIL PIPE	$479.81 Order
7	670051104	SCREW	$10.00 Order
8	675001055	SCREW	$11.55 Order
9	675000662	SCREW	$4.86 Order
10	675000397	SCREWTE M8	$44.06 Order
11	675001091	GEARBOX PIPES FIXING BRACKET	$22.86 Order
12	675001869	BRACKET	$66.40 Order
13	675001858	BRACKET	$31.70 Order
14	675001132	SCREW	$8.64 Order
15	675001855	NUT	$8.00 Order
16	675000288	SPACER	$10.14 Order
17	675000054	FLEXIBLE PAD	$35.56 Order
18	670052354	OIL DELIVERY AND RETURN HOSE	$388.59 Order
19	675000182	NUT	$9.84 Order
20	670051311	BRACKET	$0.00 Order
21	670052385	BRACKET	$0.00 Order
22	14457081	O.R. GASKET	$10.14 In Stock
23	670003311	O.R. GASKET	$9.20 Order
24	673017251	O-RING	$24.13 Order
