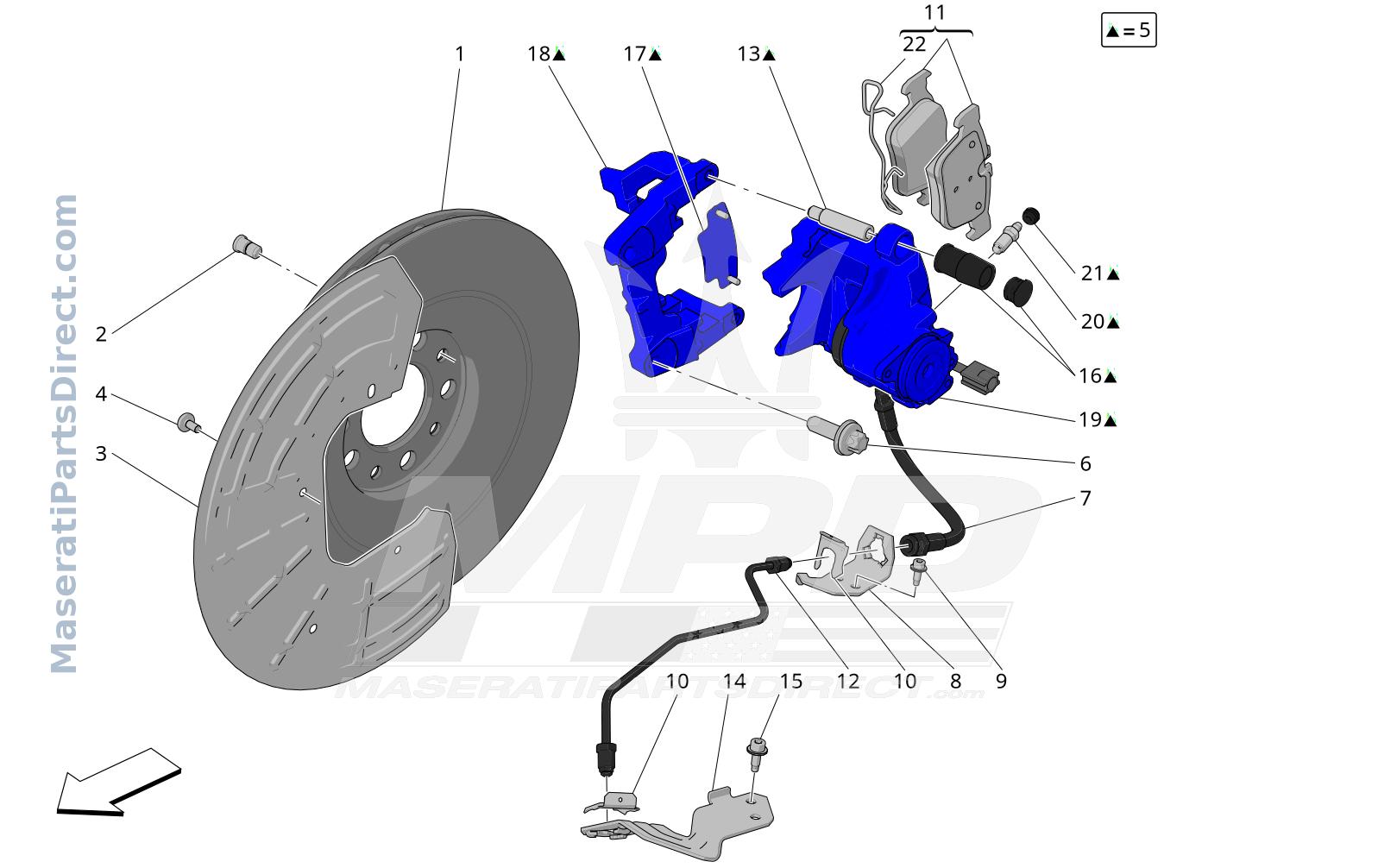

04.11 - 1 - BRAKING DEVICES ON REAR WHEELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670219581 Replaced by: #670298244	REAR BRAKE DISC	$0.00 In Stock
1	670298244	REAR BRAKE DISC	$188.91 In Stock
2	675000081	SCREWM10	$11.95 Order
3	675001525	LH REAR BRAKE DISC SHIELD	$28.80 Order
3	675001524	RH. REAR BRAKE DISC SHIELD	$28.80 Order
4	675001032	SCREW	$9.17 Order
5	custom	LH REAR CALIPER ASSEMBLY	$0.00 Order
5	custom	RH REAR CALIPER ASSEMBLY	$0.00 Order
6	675001840	SCREW	$16.17 In Stock
7	custom	FLEXIBLE PIPE TO REAR CALIPERS	$0.00 Order
8	custom	LH BRACKET	$0.00 Order
8	custom	RH BRACKET	$0.00 Order
9	675001036	SCREW	$10.40 Order
10	675000276	SPRING PLATE	$6.93 Order
11	673012304	REAR PADS KIT	$182.38 In Stock
12	custom	RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL	$0.00 Order
12	custom	RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL	$0.00 Order
13	673005441	CENTERING PIN	$43.04 Order
14	675001527	LH BRACKET	$21.03 Order
14	675001526	RH BRACKET	$21.03 Order
15	675001036	SCREW	$10.40 Order
16	673005434	REAR BRAKE CALIPER GUIDE	$55.25 Order
17	custom	PLATE KIT	$0.00 Order
18	custom	BRACKET	$0.00 Order
19	custom	LH REAR CALIPER	$0.00 Order
19	custom	RH REAR CALIPER	$0.00 Order
20	673004422	BLEEDER SCREW	$85.23 Order
21	673004423	DUST SEAL	$60.83 Order
22	673005442	CLIP	$79.81 Order
