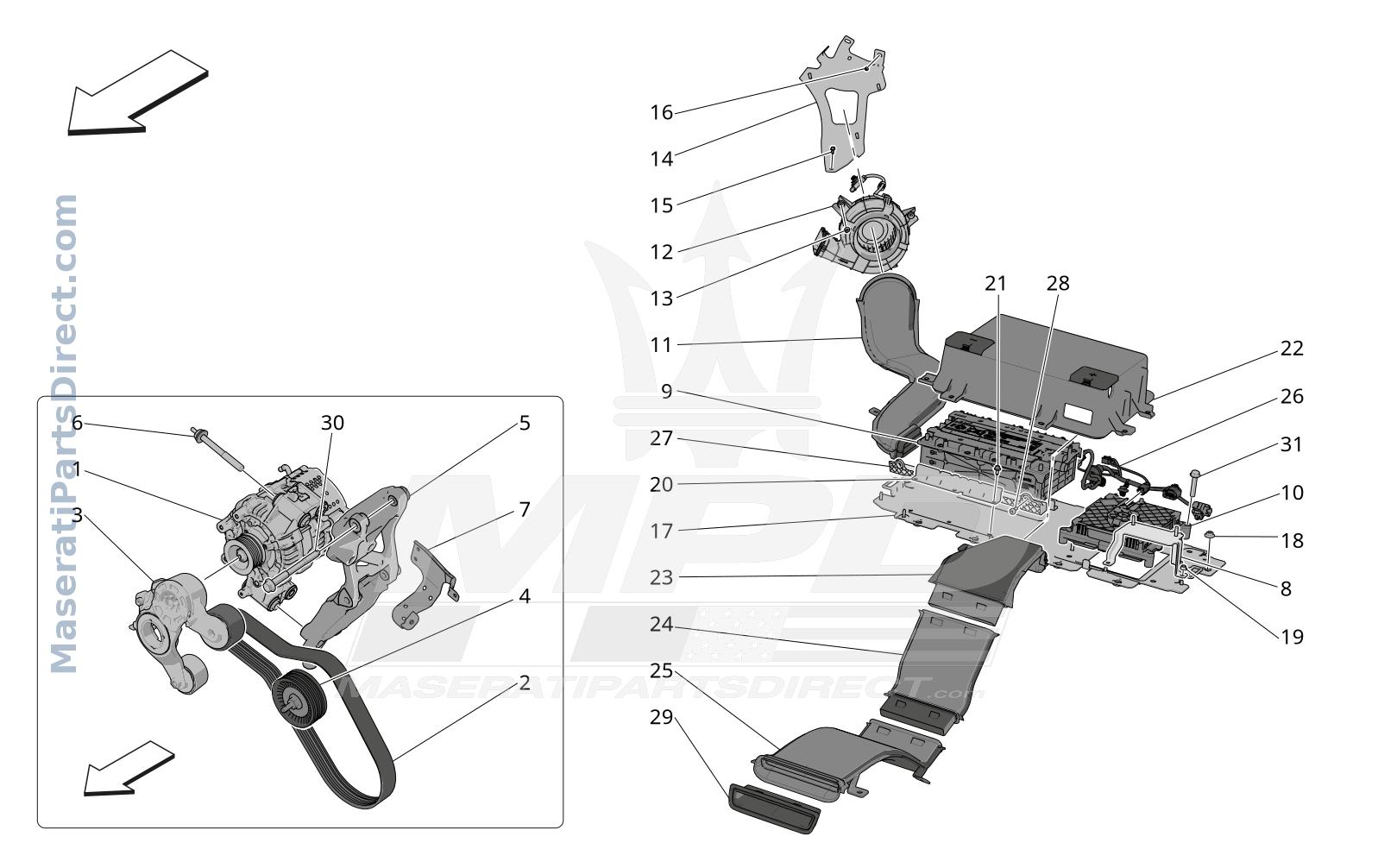

08.20 - 2 - ENERGY GENERATION AND ACCUMULATION

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670219336	ELECTRIC MOTOR-GENERATOR	$1,119.62 Order
2	670054783	MOTOR-GENERATOR BELT	$62.55 In Stock
3	670054306	BELT TENSIONER	$1,101.84 Order
4	670053819	BELT TIGHTENING PULLEY	$147.20 Order
5	670154512	BRACKET	$618.14 Order
6	670175070	SCREW	$21.72 Order
7	670154513	BRACKET	$32.56 Order
8	670173413	BRACKET	$45.95 Order
9	673012367	48V BATTERY	$0.00 Order
10	670154698	CONVERTER	$538.65 In Stock
11	670159734	VENTILATION SHAFT CONNECTION	$82.09 Order
12	670156431	FAN	$2,917.40 Order
13	675001307	NUT	$9.72 Order
14	670172812	BRACKET	$106.79 Order
15	675000621	SCREW	$10.22 Order
16	675000969	NUT	$9.73 Order
17	670172823	BRACKET	$238.89 Order
18	675002158	NUT	$0.00 Order
19	675000181	NUT	$4.86 Order
20	670157161	BATTERY BRACKET	$68.67 Order
21	675000662	SCREW	$4.86 Order
22	670158146	BATTERY COVER	$189.35 Order
23	670177873	AIR DUCT	$54.60 Order
24	670172664	AIR DUCT	$54.60 Order
25	670159733	AIR DUCT	$54.60 Order
26	670216009	CONNECTING CABLE	$132.70 Order
27	670158538	SPACER	$31.70 Order
28	670216810	SCREW	$10.62 Order
29	custom	AIR DUCT BEZEL	$0.00 Order
30	670173139	SCREW	$11.08 Order
31	675001125	SCREW	$11.10 Order
