Electrical systems and devices
08.40 - 2 - A/C UNIT: ENGINE COMPARTMENT DEVICES

08.40 - 2 - A/C UNIT: ENGINE COMPARTMENT DEVICES

Genuine Maserati Parts

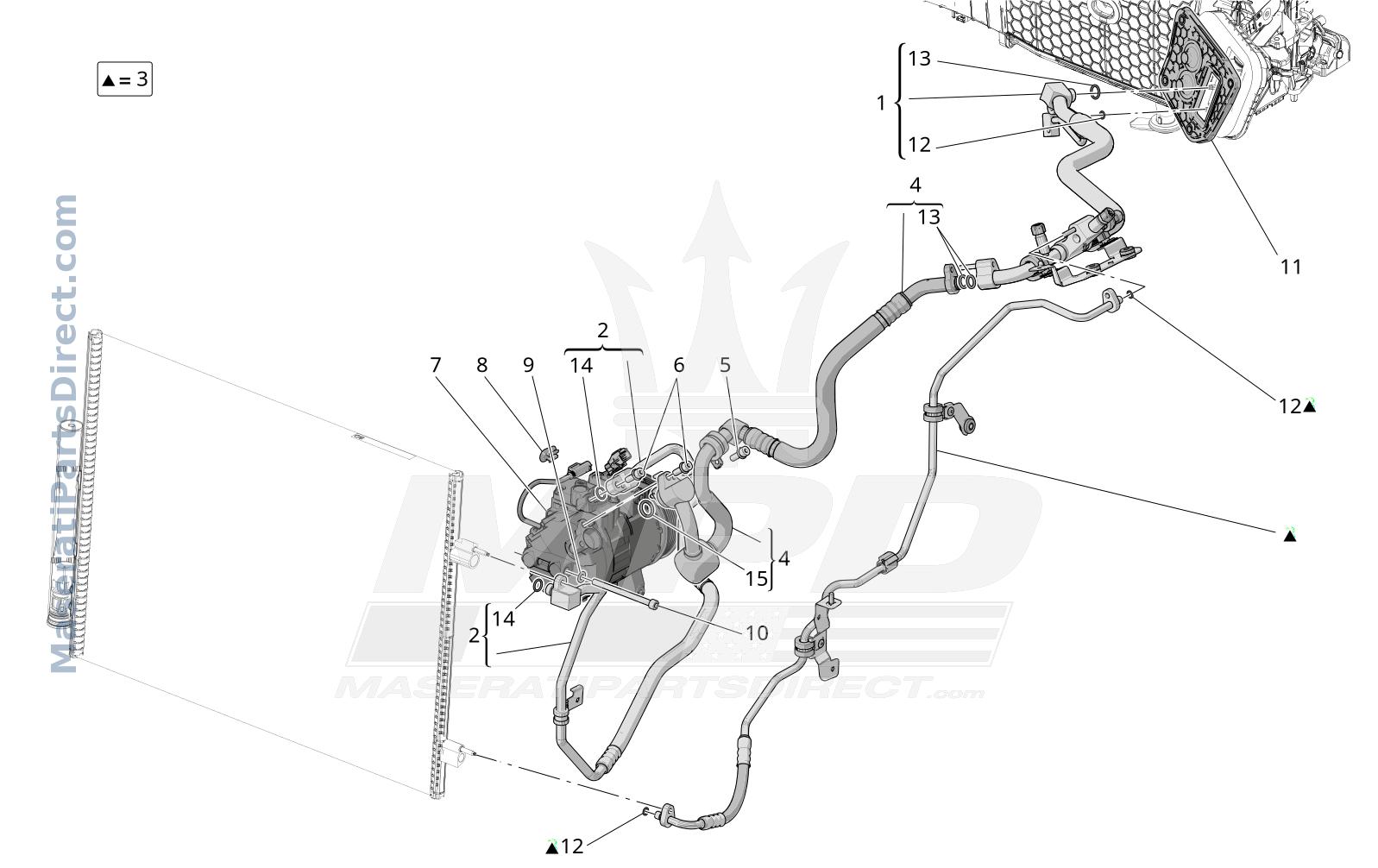

08.40 - 2 - A/C UNIT: ENGINE COMPARTMENT DEVICES Diagram

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price	Qty
1	675002234	PIPE FROM EVAPOURATOR TO UNION	$324.48 Order
2	675002076	PIPE FROM COMPRESSOR TO CONDENSER	$216.06 Order
3	675001512	PIPE BETWEEN CONDENSER AND JUNCTION	$173.71 Order
4	670156433	PIPE FROM UNION TO COMPRESSOR	$240.05 Order
5	675000104	SCREWM6X25	$7.65 Order
6	670051450	SCREW	$11.40 Order
7	675002075	A.C. COMPRESSOR	$650.06 Order
8	675000355	CLIP	$8.64 Order
9	675000690	WASHER	$10.22 Order
10	675002081	SCREW	$0.00 Order
11	675001734	GASKET	$40.53 Order
12	675000119	O.R. GASKET6,8x1,87	$11.55 Order
13	675000306	O.R. GASKET13,6x2,43	$9.84 Order
14	675001987	O.R. GASKET	$20.48 Order
15	673017514	O-RING	$14.44 Order

08.40 - 2 - A/C UNIT: ENGINE COMPARTMENT DEVICES

Be the first to review this product

In stock

SKU

Gre2023-08-40-2-a-c-unit-engine-compartment-devices-4wd530hp

All parts for A/C UNIT: ENGINE COMPARTMENT DEVICES

A/C UNIT: ENGINE COMPARTMENT DEVICES - Complete Parts Group
