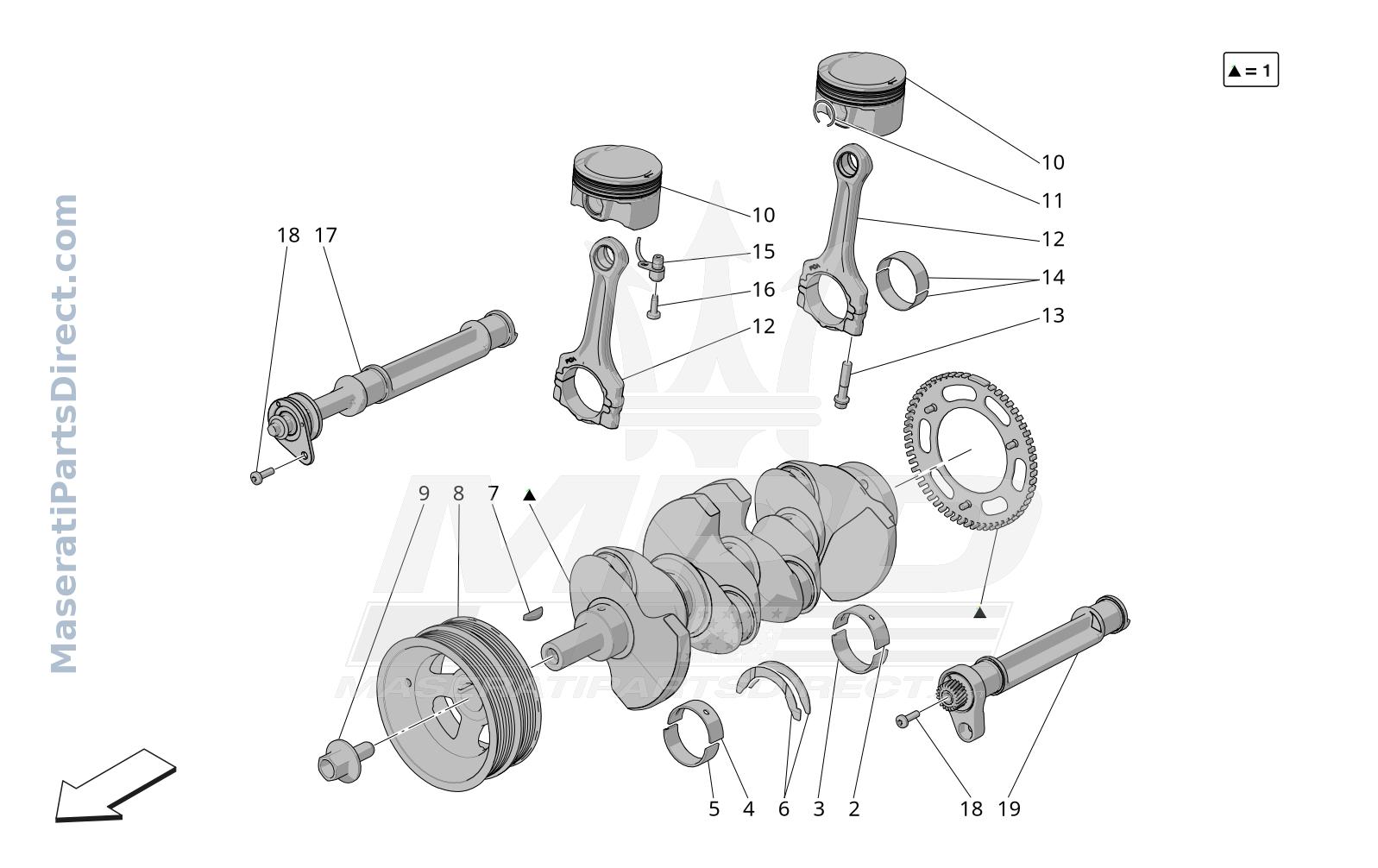

01.10 - 1 - CRANK MECHANISM

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	675000863	CRANKSHAFT	$0.00 Order
2	675001169	UPPER HALF-BEARING	$0.00 Order
2	675001171	UPPER HALF-BEARING	$0.00 Order
2	675001170	UPPER HALF-BEARING	$0.00 Order
3	675001176	LOWER HALF-BEARING	$0.00 Order
3	675001175	LOWER HALF-BEARING	$0.00 Order
3	675001174	LOWER HALF-BEARING	$0.00 Order
3	675001173	LOWER HALF-BEARING	$0.00 Order
3	675001172	LOWER HALF-BEARING	$0.00 Order
4	675000845	UPPER HALF-BEARING	$0.00 Order
4	675000847	UPPER HALF-BEARING	$0.00 Order
4	675000846	UPPER HALF-BEARING	$0.00 Order
5	675001288	LOWER HALF-BEARING	$0.00 Order
5	675001287	LOWER HALF-BEARING	$0.00 Order
5	675001285	LOWER HALF-BEARING	$0.00 Order
5	675001284	LOWER HALF-BEARING	$0.00 Order
5	675001286 Replaced by: #675000859	LOWER HALF-BEARING	$0.00 Order
5	675000859	LOWER HALF-BEARING	$0.00 Order
6	675000862	THRUST RING	$0.00 Order
7	675000921	TAB	$0.00 Order
8	670052962	TORSION DAMPER	$304.44 Order
9	675000922	SCREW FOR DAMPER FIXING	$14.00 Order
10	670054090 Replaced by: #670054383	ENGINE PISTON WITH RINGS	$0.00 Order
10	670054383	ENGINE PISTON WITH RINGS	$0.00 Order
10	670054091	ENGINE PISTON WITH RINGS	$0.00 Order
10	670054384	ENGINE PISTON WITH RINGS	$0.00 Order
11	675000864	LOCK RING	$0.00 Order
12	675000865	CONNECTING ROD SHAFT AND CAP ASSEMBLY	$0.00 Order
13	675000866	CONNECTING ROD TIGHTENING SCREW	$0.00 Order
14	675001184	CONNECTING ROD HALF-BEARING	$0.00 Order
14	675001185	CONNECTING ROD HALF-BEARING	$0.00 Order
14	675001183	CONNECTING ROD HALF-BEARING	$0.00 Order
15	675000842	PISTONS COOLING NOZZLE	$0.00 Order
16	675000844	SCREW	$0.00 Order
17	675001993	RH BALANCE SHAFT	$0.00 Order
18	675000873	SCREW	$0.00 Order
19	675001992	LH BALANCE SHAFT	$0.00 Order
