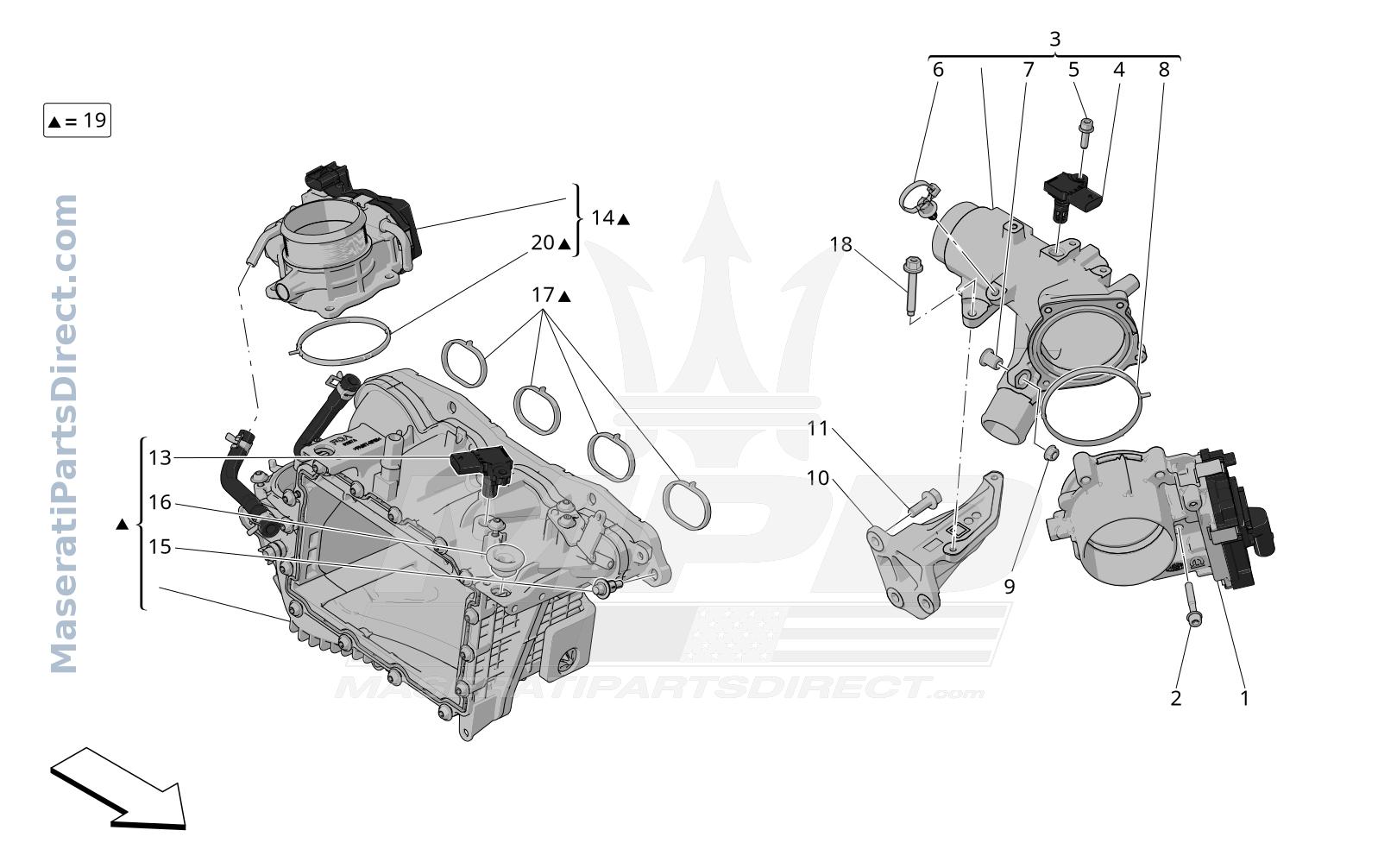

01.40 - 1 - INTAKE MANIFOLD AND THROTTLE BODY

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670050579	THROTTLE BODY	$1,223.00 Order
2	670051720	SCREW	$20.48 Order
3	670053613	INTAKE MANIFOLD	$698.48 Order
4	675000976	SENSOR	$256.28 Order
5	670051107	SCREW	$11.10 Order
6	670037194	CLIP	$0.00 Order
7	670051584	BUSHING	$0.00 Order
8	670037087	GASKET	$53.84 Order
9	675000969	NUT	$9.73 Order
10	670053044	BRACKET	$0.00 Order
11	675000960	SCREW	$0.00 Order
13	675000976	SENSOR	$256.28 Order
14	673015229	THROTTLE BODY AND GASKET KIT	$541.40 In Stock
15	675000980	SCREW	$0.00 Order
16	675000983	RUBBER	$0.00 Order
17	673011075	GASKET KIT	$237.90 Order
18	675000954	SCREW	$0.00 Order
19	675001445 Replaced by: #675004718	INTAKE MANIFOLD ASSEMBLY	$0.00 Order
19	675001484 Replaced by: #675004718	INTAKE MANIFOLD ASSEMBLY	$0.00 Order
19	675004718	INTAKE MANIFOLD ASSEMBLY	$1,057.24 Order
20	673013363	GASKET	$41.99 Order
