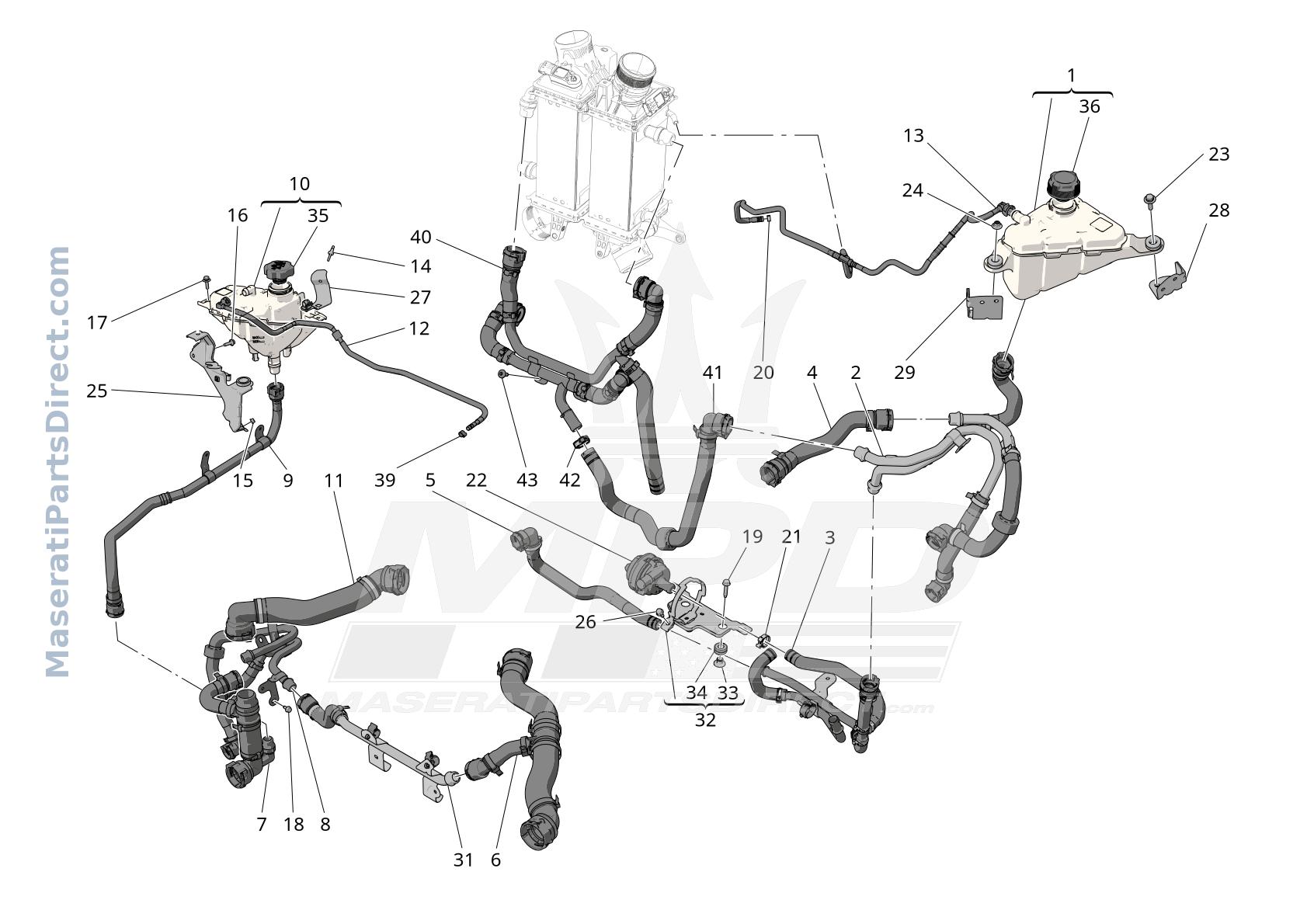

01.71 - 4 - COOLING SYSTEM: NOURICE AND LINES

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	675001493	COOLANT RESERVOIR	$45.14 Order
2	675001659	HOSE ADDITIONAL RADIATOR COOLANT	$512.00 Order
3	670156658	WATER PUMP DELIVERY-RETURN PIPE GROUP	$219.73 Order
4	675001654	SLEEVE	$182.34 Order
5	675001578	RH SLEEVE	$79.95 Order
6	675001653	WATER RETURN TUBE	$210.98 Order
7	675001581	MAIN ELECTRIC PUMP INLET SLEEVE	$176.02 Order
8	675001580	HOSE ADDITIONAL RADIATOR COOLANT	$381.07 Order
9	675001579	EXPANSION TANK BREATHER PIPE	$249.23 Order
10	675001614	COOLANT RESERVOIR	$49.68 Order
11	675001725	WATER OUTLET SLEEVE	$112.06 Order
12	675001521	HOSE DEGASSING	$85.70 Order
13	670174776	EXPANSION TANK BREATHER PIPE	$187.42 Order
14	675001793	RIVET	$11.55 Order
15	675000794	NUT	$11.52 Order
16	675001048	SCREW	$8.00 Order
17	675001629	SCREW	$11.40 Order
18	675001117	SCREW	$10.14 Order
19	675001127	SCREW	$10.14 Order
20	675001922	COLLAR	$9.72 Order
21	675000658	COLLAR	$5.58 Order
22	670303875	ELECTRIC WATER PUMP	$321.17 Order
23	675001708	SCREW	$11.08 Order
24	675001063	NUT	$10.14 Order
25	675001762	BRACKET	$55.83 Order
26	675001792	SCREW	$9.84 Order
27	675001563	BRACKET	$23.23 Order
28	675001568	BRACKET	$27.03 Order
29	675001565	BRACKET	$31.26 Order
31	670161439	SLEEVE	$793.61 Order
32	670161490	BRACKET	$108.38 Order
33	675000129	SPACER	$73.11 Order
34	675000054	FLEXIBLE PAD	$35.56 Order
35	675001143	TANK PLUG	$52.75 Order
36	670003408	TANK PLUG	$23.66 Order
39	675000757	COLLAR	$11.10 Order
40	675001646	INTERCOOLER OUTLET SLEEVE	$616.37 Order
41	675001667	INTERCOOLER INLET SLEEVE	$84.72 Order
42	675000658	COLLAR	$5.58 Order
43	675001032	SCREW	$9.17 Order
