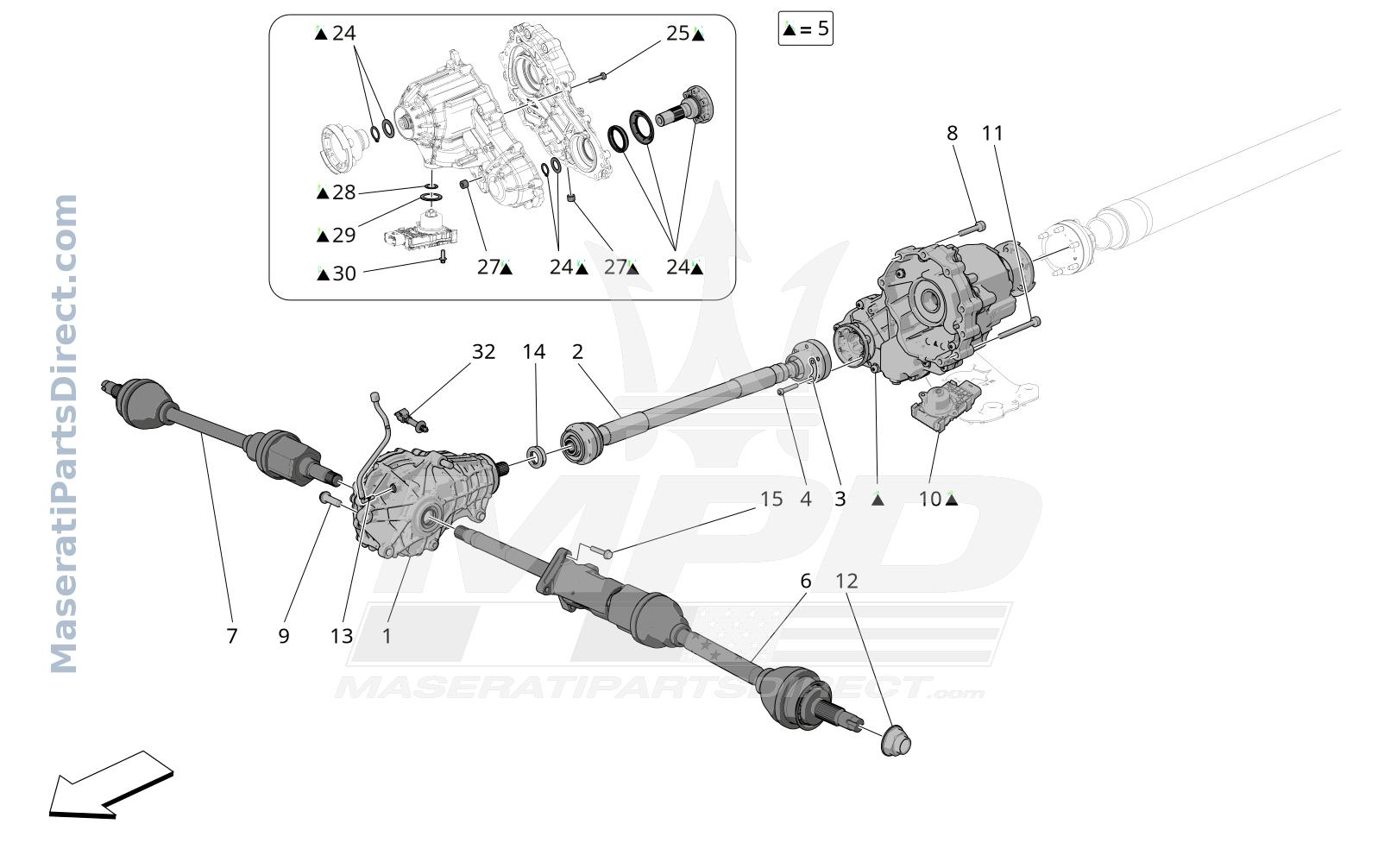

03.22 - 2 - FRONT WHEELS TRANSMISSION

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670154264	FRONT DIFFERENTIAL	$1,762.29 Order
2	46341887	FRONT DRIVE SHAFT	$1,703.02 Order
3	670003772	PLATE	$10.40 Order
4	670302678	SCREW	$9.24 Order
5	670154265 Replaced by: #670311641	ALL WHEEL DRIVE TRANSFER CASE	$0.00 Order
5	670311641	ALL WHEEL DRIVE TRANSFER CASE	$0.00 Order
6	675001727	LH AXLE SHAFT ASSEMBLY	$0.00 Order
7	675001726	RH AXLE SHAFT ASSEMBLY	$0.00 Order
8	675001849	SCREW	$13.88 Order
9	675001859	SCREW	$15.09 Order
10	670175707	TRANSFER CASE CONTROL UNIT	$0.00 Order
11	675001850	SCREW	$16.70 Order
12	675000138	NUT	$19.15 Order
13	46349268	VENT PIPE	$52.16 Order
14	675000719	GASKET	$11.15 Order
15	675001934	SCREW	$9.20 Order
24	673017508	TRANSFER CASE FLANGE KIT	$439.82 Order
25	673017507	TRANSFER CASE FIXING KIT	$0.00 Order
27	673017506	PLUGS KIT	$0.00 Order
28	673015768	O.R. GASKET	$0.00 Order
29	673015772	GASKET	$0.00 Order
30	673015774	SCREW	$0.00 Order
32	46350326	CLIP	$11.85 Order
