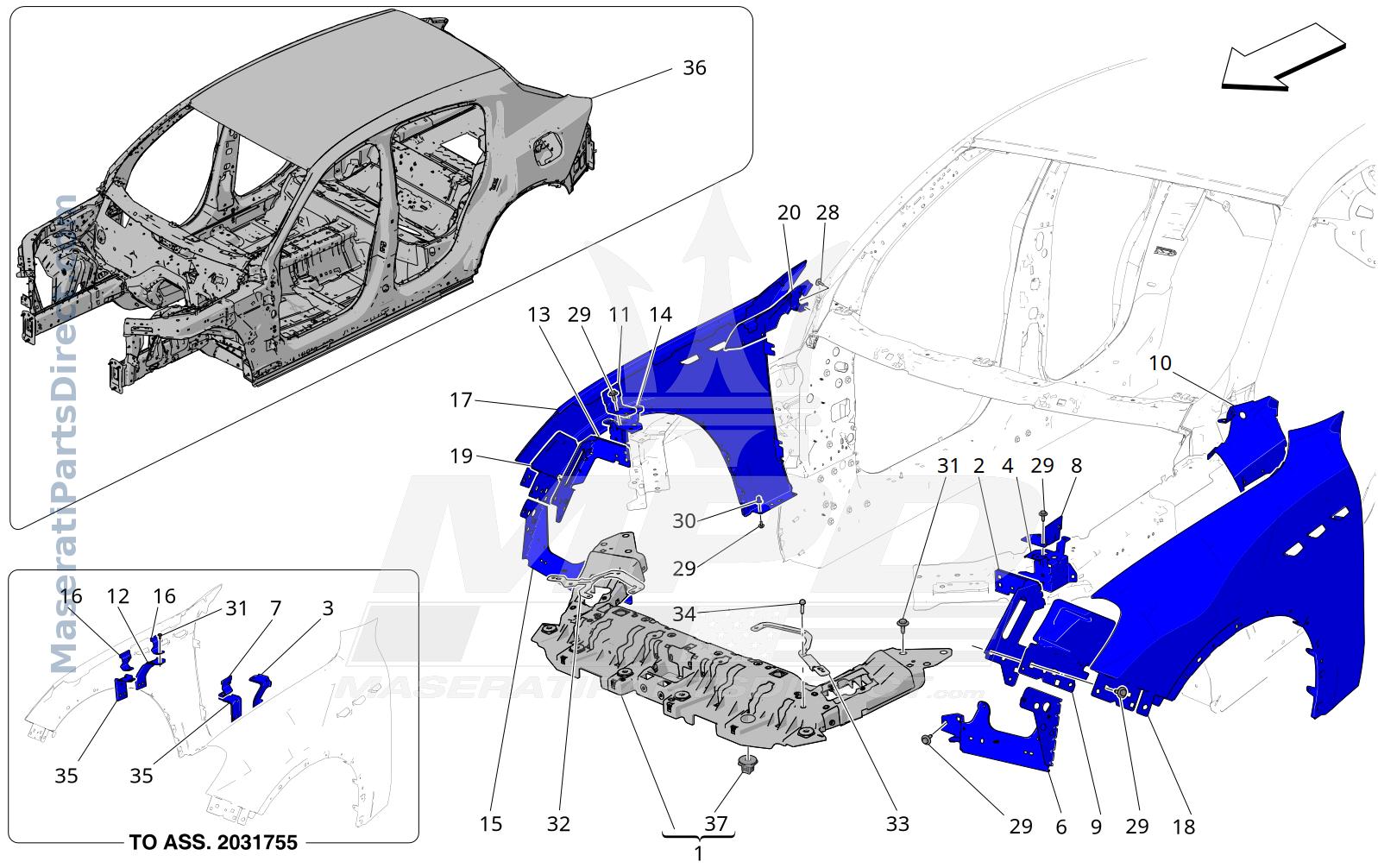

09.00 - 1 - BODYWORK AND FRONT OUTER TRIM PANELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670293089	FRONT CROSS MEMBER	$1,008.93 Order
2	673014263	LH MUDGUARD FRONT LOWER REINFORCEMENT	$87.84 Order
4	670217114	LH FRONT FENDER BRACKET	$40.96 Order
6	673016705	LH MUDGUARD SUPPORT BRACKET	$72.73 Order
8	670157320	LH FRONT FENDER BRACKET	$11.15 Order
9	670157342	LH MUDGUARD BRACKET FIXING	$42.20 Order
10	670157318	LH UPPER REPORT	$38.72 Order
11	670158066	RH FRONT FENDER BRACKET	$10.36 Order
13	673014200	RH MUDGUARD FRONT LOWER REINFORCEMENT	$87.51 Order
14	670217112	RH FRONT FENDER BRACKET	$40.96 Order
15	673016704	RH MUDGUARD SUPPORT BRACKET	$73.06 Order
17	673016588	FRONT RH MUDGUARD ASSEMBLY	$618.70 Order
18	673016589	FRONT LH MUDGUARD ASSEMBLY	$618.70 Order
19	670157343	RH MUDGUARD BRACKET MUDGUARD FIXING	$32.73 Order
20	670157317	RH UPPER REPORT	$39.23 Order
28	675001750	SCREW	$2.99 Order
29	675001317	SCREW	$12.30 Order
30	675002108	RIVET	$9.73 Order
31	675002124	SCREW	$12.71 Order
32	670177870	RH ENGINE COVER BRACKET	$118.67 Order
33	670182557	LH ENGINE COVER BRACKET	$114.35 Order
34	675001933	SCREW	$10.62 Order
36	custom	BODYWORK ASSEMBLY	$0.00 Order
37	670005535	BLOCK	$12.98 Order
