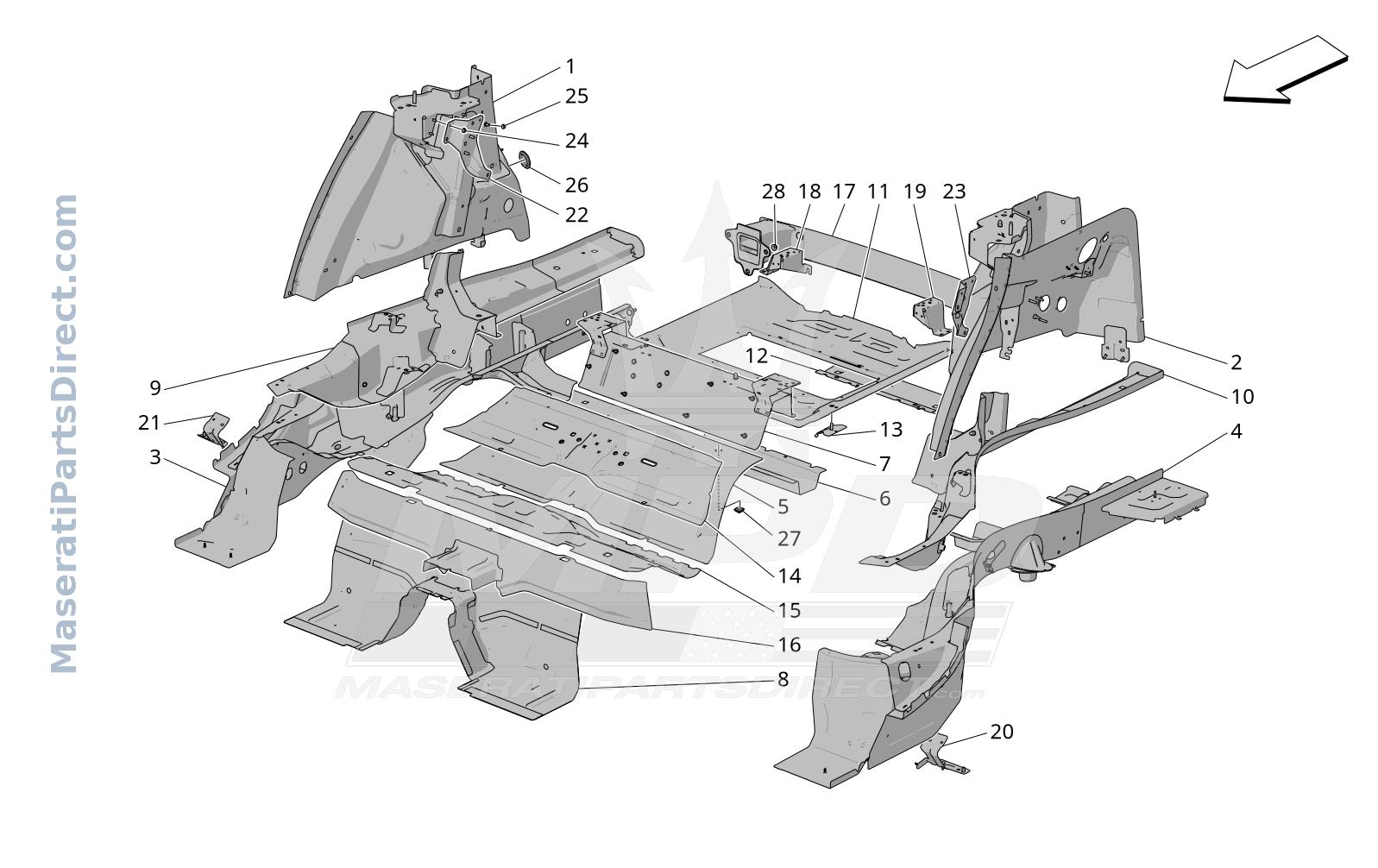

09.05 - 1 - REAR STRUCTURAL FRAMES AND SHEET PANELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673014208	RH REAR WHEELHOUSE	$794.33 Order
2	673014209	LH REAR WHEELHOUSE	$797.15 Order
3	673014220	RH INTERNAL REAR SIDE MEMBER	$764.57 Order
3	673016812	RH INTERNAL REAR SIDE MEMBER	$0.00 Order
4	673014221	LH INTERNAL REAR SIDE MEMBER	$764.57 Order
4	673016813	LH INTERNAL REAR SIDE MEMBER	$0.00 Order
5	673014222	FRONT LONGITUDINAL MEMBER CONNECTING CROSS MEMBER	$262.32 Order
6	673014223	REAR CROSS MEMBER CONNECTING SIDE MEMBERS	$32.54 Order
7	673014224	REAR SEAT CROSS MEMBER	$232.52 Order
8	673014225	REAR CROSS MEMBER	$235.23 Order
9	673014254	RH REAR SIDE MEMBER BOX	$802.45 Order
10	673014255	LH REAR SIDE MEMBER BOX	$802.45 Order
11	673014258	COMPLETE REAR FLOOR	$185.02 Order
12	673014256	REAR CROSS MEMBER	$70.83 Order
13	673014257	REINFORCEMENT	$25.17 Order
14	673014226	REAR SIDE REAR FLOOR	$164.78 Order
15	673014228	FRONT SIDE OF REAR FLOOR ASSEMBLY	$152.42 Order
16	673014227	REAR CROSS PIECE MEMBER	$241.70 Order
17	670295915	REAR CRASH-BOX CROSS MEMBER ASS.	$316.05 Order
18	670299287	RH REAR BRACKET	$0.00 Order
19	670299289	LH REAR BRACKET	$0.00 Order
20	670157472	LH BRACKET	$47.20 Order
21	675002120	RH BRACKET	$44.50 Order
22	670172816	RH BRACKET WINDER	$40.96 Order
23	670172817	LH BRACKET WINDER	$40.96 Order
24	675000181	NUT	$4.86 Order
25	675000969	NUT	$9.73 Order
26	675001547	PLUG	$16.70 Order
27	675001591	PLUG	$10.00 Order
