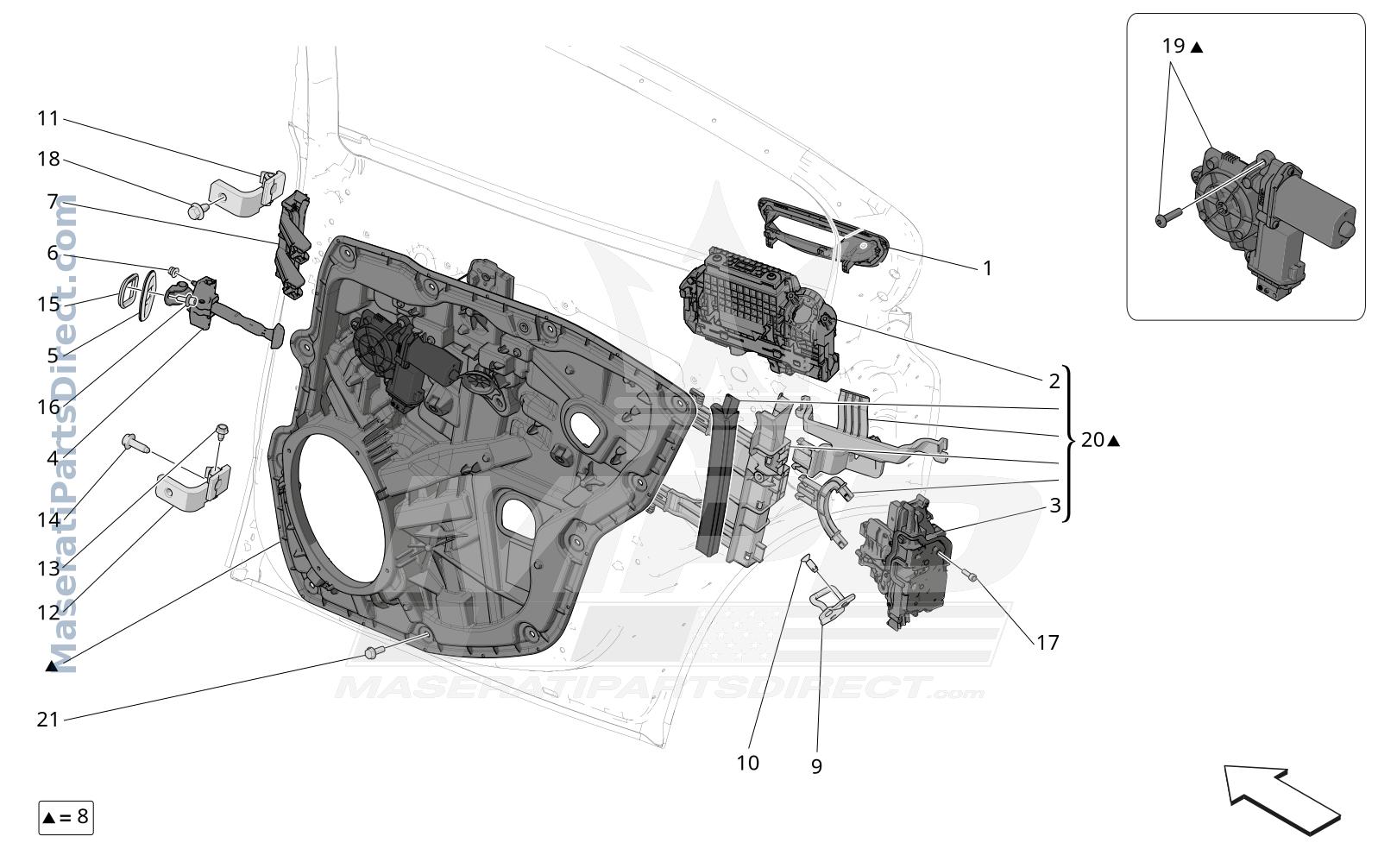

09.33 - 1 - REAR DOORS: MECHANISMS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	LH EXTERNAL DOOR HANDLE	$0.00 Order
1	custom	RH EXTERNAL DOOR HANDLE	$0.00 Order
2	670157752	LH EXTERNAL DOOR HANDLE RETAINING BRACKET	$483.65 Order
2	670157750	RH EXTERNAL DOOR HANDLE RETAINING BRACKET	$429.59 Order
3	670157753	LH REAR DOOR LOCK	$273.72 Order
3	670157751	RH REAR DOOR LOCK	$595.85 Order
4	670157603	TIE ROD	$59.50 Order
5	675001583	GASKET	$10.80 Order
6	675001318	NUT	$10.14 Order
7	670212816	FRONT LH WINDOW RUN CHANNEL	$37.07 Order
7	670212815	FRONT RH WINDOW RUN CHANNEL	$37.07 Order
8	673014116	LH REAR DOOR CARRIER	$814.30 Order
8	673014115	RH REAR DOOR CARRIER	$814.30 Order
9	670175119	DOORS LOCK STRIKER	$34.72 Order
10	675001811	SCREW	$0.00 Order
11	675002137	LH UPPER HINGE	$129.06 Order
11	675002135	RH UPPER HINGE	$129.06 Order
12	675002138	LH LOWER HINGE	$129.94 Order
12	675002136	RH LOWER HINGE	$129.06 Order
13	675000005	SCREWM 8x15	$6.93 Order
14	675000485	SCREWM10	$9.73 Order
15	675001602	GASKET	$0.00 Order
16	670006984	SCREW	$10.40 Order
17	675001327	SCREW	$0.00 Order
18	670219402	SCREW	$15.37 Order
19	673014120	LH REAR GEARMOTOR KIT	$423.06 Order
19	673014119	RH REAR GEARMOTOR KIT	$423.06 Order
20	673014118	LH REAR PRESENTER KIT	$1,182.26 Order
20	673014117	RH REAR PRESENTER KIT	$1,182.26 Order
21	675001669	SCREW	$0.00 Order
