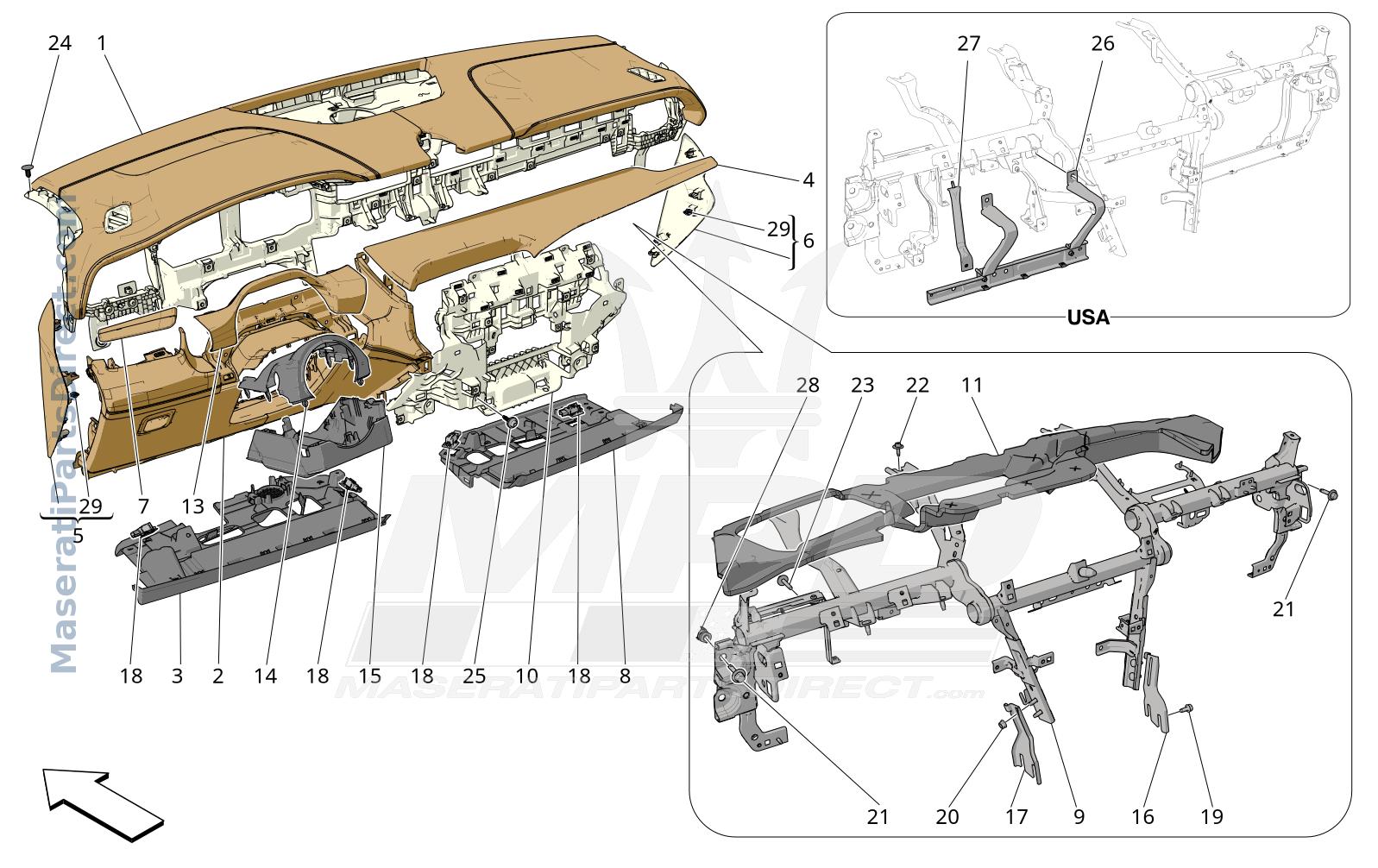

09.50 - 1 - DASHBOARD UNIT

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	DASHBOARD ASSEMBLY	$0.00 Order
2	custom	PILOT SIDE DASHBOARD SIDE INSERT	$0.00 Order
3	custom	LH UNDERDASHBOARD COVER	$0.00 Order
4	custom	PASSENGER SIDE DASHBOARD MOULDING	$0.00 Order
5	custom	DASHBOARD LH SIDE COVER	$0.00 Order
6	custom	DASHBOARD RH SIDE COVER	$0.00 Order
7	custom	DRIVER SIDE DASHBOARD MOULDING	$0.00 Order
8	custom	RH UNDERDASHBOARD COVER	$0.00 Order
9	670157039	DASHBOARD CROSS MEMBER	$2,258.80 Order
10	670310591	CENTRAL DASHBOARD REINFORCEMENT	$0.00 Order
11	670175786	DASHBOARD SOUNDPROOFING	$48.38 Order
13	custom	UPPER BRACKET	$0.00 Order
14	custom	STEERING COLUMN UPPER GUARD	$0.00 Order
15	custom	COMPLETE STEERING COLUMN LOWER GUARD	$0.00 Order
16	675002015	RH BRACKET	$14.28 Order
17	675002016	LH BRACKET	$14.28 Order
18	670293482	DASHBOARD AMBIENT LIGHT	$57.85 Order
19	675000200	SCREW	$8.28 Order
20	675001096	NUT	$8.64 Order
21	675002017	SCREW	$10.62 Order
22	675002018	SCREW	$9.84 Order
23	675001045	SCREW	$10.16 Order
24	custom	FASTENER BUTTON6,5X18	$0.00 Order
25	675002019	SCREW	$11.10 Order
26	670157037	UPPER CROSS MEMBER REINFORCEMENT	$124.90 Order
27	670157036	STIFFENING TUBE	$35.48 Order
28	675001088	BUSHING	$21.26 Order
29	673016811	CLIP	$8.64 Order
