01.24 - 1 - TIMING

Genuine Maserati Parts

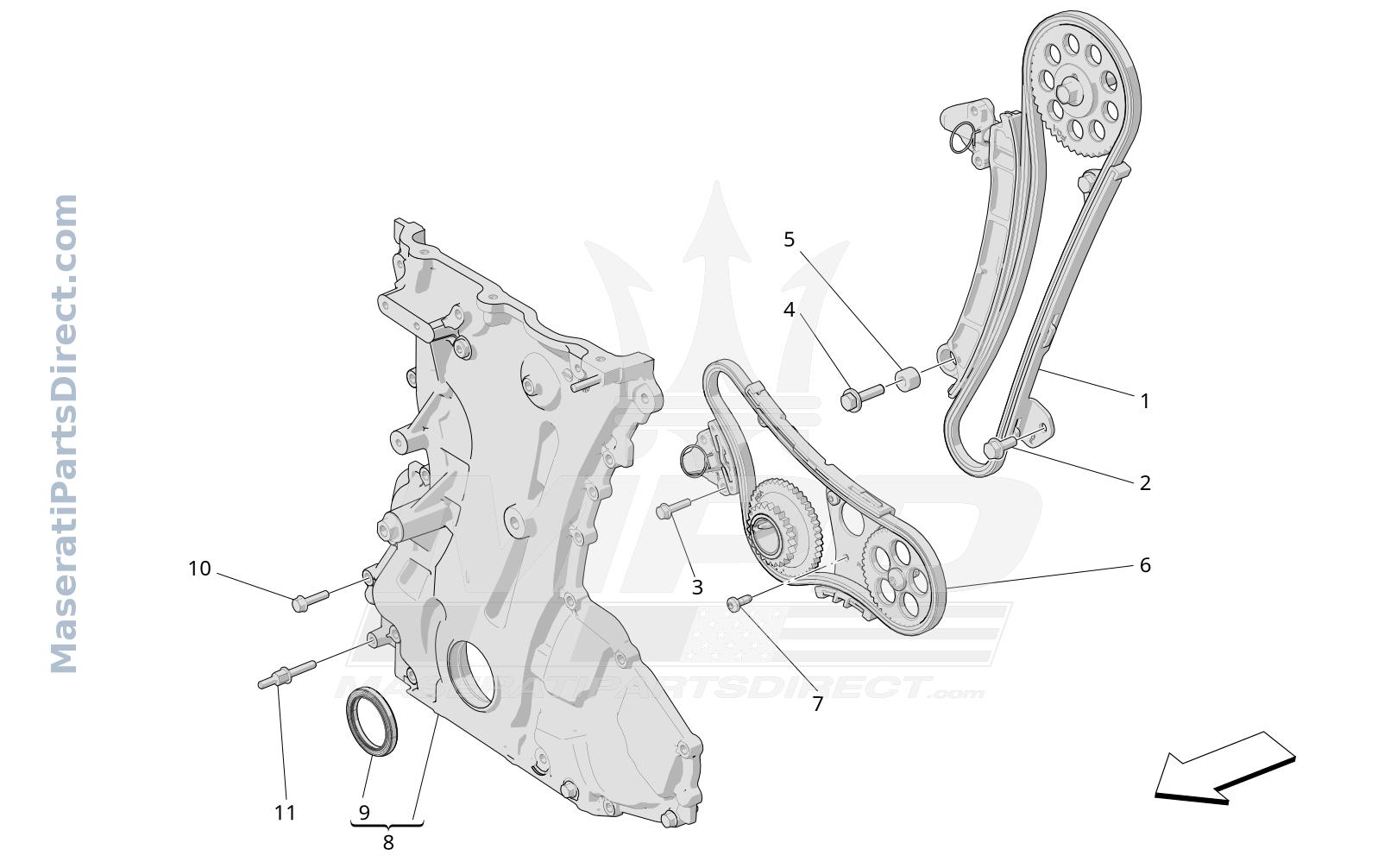

01.24 - 1 - TIMING Diagram

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price	Qty
1	670053565	PRIMARY TIMING DRIVE KIT	$457.17 Order
2	675000905	SCREW	$0.00 Order
3	675000880	SCREW	$0.00 Order
4	675000904	SCREW	$0.00 Order
5	675000906	BUSHING	$0.00 Order
6	675000903 Replaced by: #675002272	SECONDARY TIMING DRIVE KIT	$0.00 Order
6	675002272	SECONDARY TIMING DRIVE KIT	$391.75 Order
7	675000879	SCREW	$0.00 Order
8	670053447	FRONT COVER	$0.00 Order
8	670054535	FRONT COVER	$261.87 Order
8	670054842	FRONT COVER	$0.00 Order
9	675001153	GASKET	$43.25 Order
9	675230751	GASKET	$44.28 Order
10	675000870	SCREW	$0.00 Order
11	675000871	STUD	$21.78 Order

01.24 - 1 - TIMING

Be the first to review this product

In stock

SKU

Gre2025-01-24-1-timing-4wd330hp_M

All parts for TIMING

TIMING - Complete Parts Group
