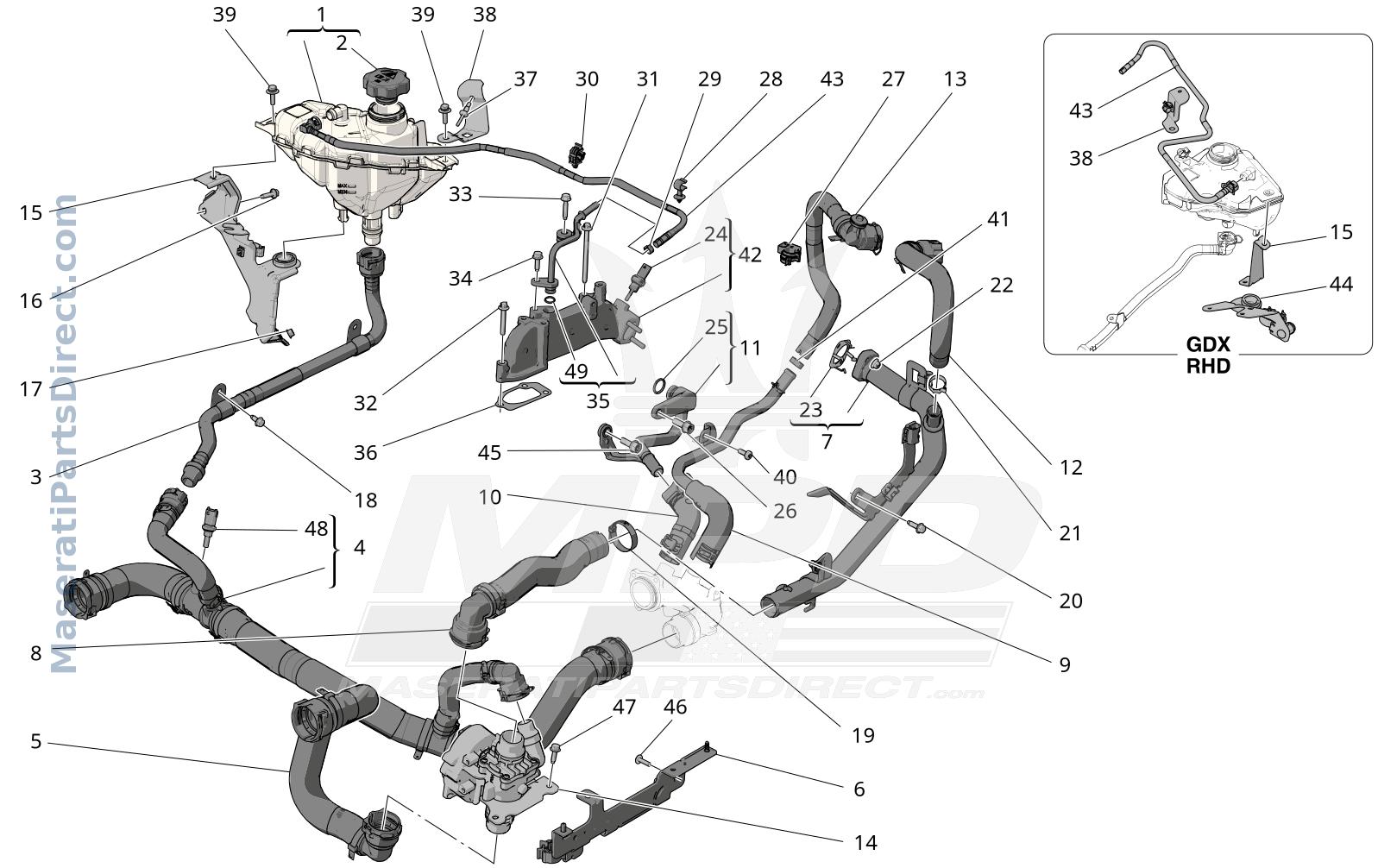

01.71 - 2 - COOLING SYSTEM: NOURICE AND LINES

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	675001614	COOLANT RESERVOIR	$49.68 Order
2	675001143	TANK PLUG	$52.75 Order
3	670156384	PIPE	$80.28 Order
4	670161487	RADIATOR WATER OUTPUT SLEEVE	$392.81 In Stock
5	675001749	RADIATOR WATER INLET PIPE	$117.34 Order
6	670179810	BRACKET	$100.05 Order
7	670054428	ENGINE HEAD OUTLET WATER PIPE	$284.29 Order
8	670175677	PIPE FROM ENGINE TO THERMOSTATIC VALVE	$47.82 Order
9	670053671	PIPE BETWEEN SECONDARY RADIATOR AND PUMP	$643.60 Order
12	675001754	HEATER WATER DELIVERY SLEEVE	$83.73 Order
13	675001808	WATER RETURN SLEEVE FROM HEATER	$114.50 Order
14	675001144	THERMOSTATIC VALVE	$382.10 Order
15	675001762	BRACKET	$55.83 Order
16	675001048	SCREW	$8.00 Order
17	675000794	NUT	$11.52 Order
18	675001117	SCREW	$10.14 Order
19	675001129	COLLAR	$11.72 Order
20	675001119	SCREW	$8.00 Order
21	675001923	COLLAR	$10.14 Order
22	675001004	NUT	$11.10 Order
23	675001003	WATER PIPE SEAL	$52.81 Order
24	675000947	TEMPERATURE SENSOR	$103.85 Order
25	675000959	SEAL RING	$13.88 Order
26	675000960	SCREW	$0.00 Order
27	675001838	CLIP	$18.34 Order
28	675001809	CLIP	$16.45 Order
29	675000757	COLLAR	$11.10 Order
30	675000076	CLIP	$9.20 Order
31	675000949	SCREW	$0.00 Order
32	675000950	SCREW	$0.00 Order
33	675001127	SCREW	$10.14 Order
34	675001119	SCREW	$8.00 Order
35	670309803	VENT PIPE	$67.40 Order
36	675000945	GASKET	$14.00 Order
37	675001793	RIVET	$11.55 Order
38	670181371	BRACKET	$20.51 Order
39	675001629	SCREW	$11.40 Order
40	675001014	SCREW	$0.00 Order
41	675000372	COLLARD.20,5	$10.14 Order
42	675000946	COOLING MANIFOLD	$302.12 Order
43	675001609	VENT PIPE	$48.95 Order
45	675000961	SCREW	$0.00 Order
46	675001974	SCREW	$9.84 Order
47	675001973	SCREW	$9.84 Order
48	670005736	TEMPERATURE SENSOR	$30.57 In Stock
49	673013793	O.R. GASKET	$21.72 Order
