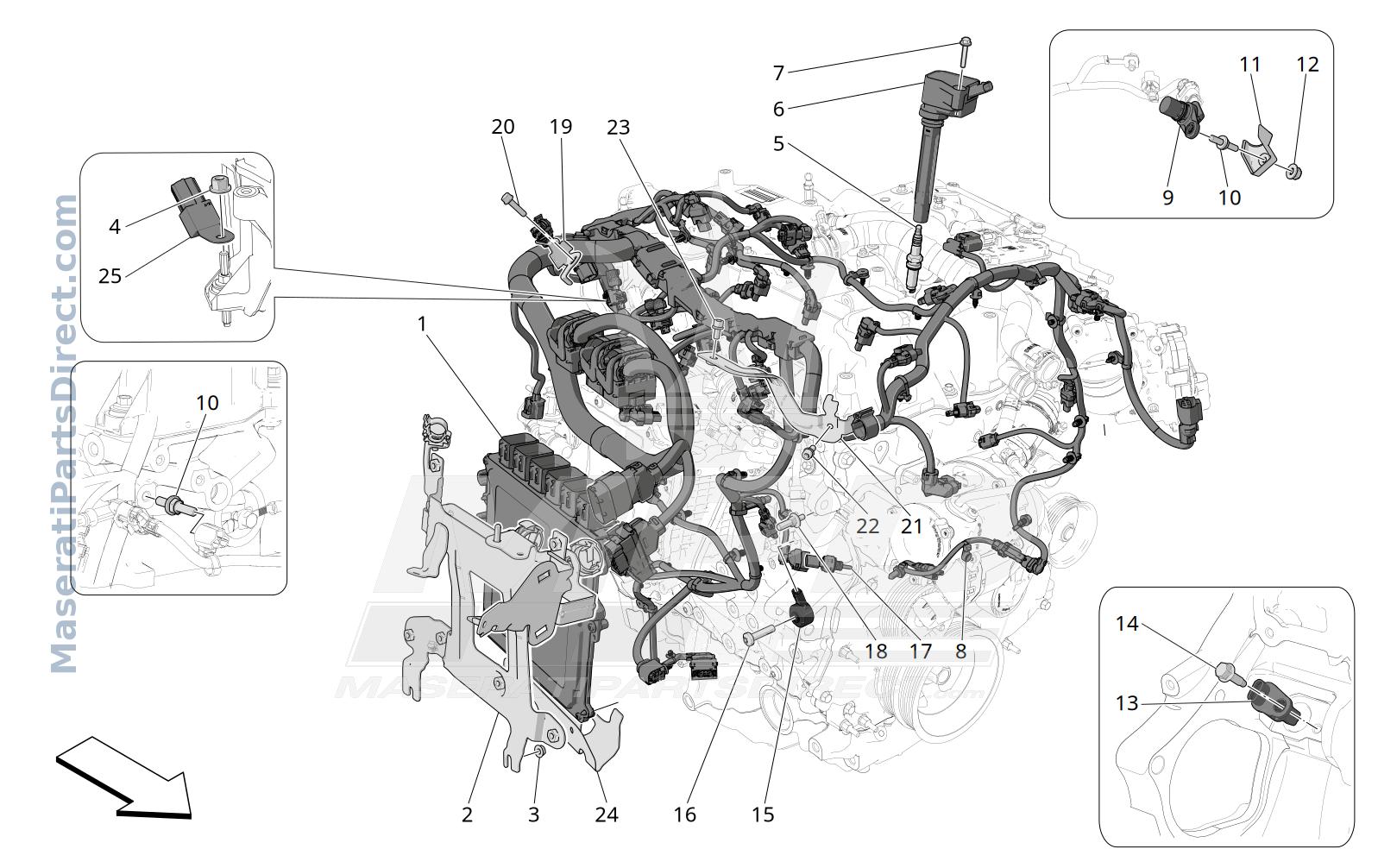

01.90 - 1 - ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670181238	ENGINE CONTROL UNIT	$667.73 Order
2	670156715	BRACKET	$135.52 Order
3	675000969	NUT	$9.73 Order
4	675000957	NUT	$0.00 Order
5	675000934	SPARK PLUG	$24.53 In Stock
6	670053141	IGNITION COIL	$126.07 Order
7	675000972	SCREW	$0.00 Order
8	670054402	ENGINE INJECTION WIRING HARNESS	$2,019.60 Order
9	675000897	TIMING SENSOR	$125.30 Order
9	675002367	TIMING SENSOR	$0.00 Order
10	675000898	SCREW	$21.03 Order
11	675000899	HEAT SHIELD	$0.00 Order
12	675000896	NUT	$0.00 Order
13	675001995	ANGULAR SPEED SENSOR	$199.41 Order
13	675004664	ANGULAR SPEED SENSOR	$186.69 Order
14	675000919	SCREW	$0.00 Order
15	675000916 Replaced by: #675003498	KNOCK SENSOR	$0.00 Order
15	675003498	KNOCK SENSOR	$59.50 Order
16	675000917	SCREW	$0.00 Order
17	675000914 Replaced by: #675004666	OIL PRESSURE SENSOR	$0.00 Order
17	675004666	OIL PRESSURE SENSOR	$161.26 Order
18	675000915	PIN	$0.00 Order
19	675001970	SOUND ABSORBING COVER BRACKET	$27.70 Order
20	675001017	SCREW	$8.64 Order
21	675001151	BRACKET	$31.70 Order
22	675000172	SCREW	$8.28 Order
23	675001016	SCREW	$10.62 Order
24	670178869	CONTROL UNIT LOWER BRACKET	$66.22 Order
25	675000956	CONDENSER	$14.96 Order
