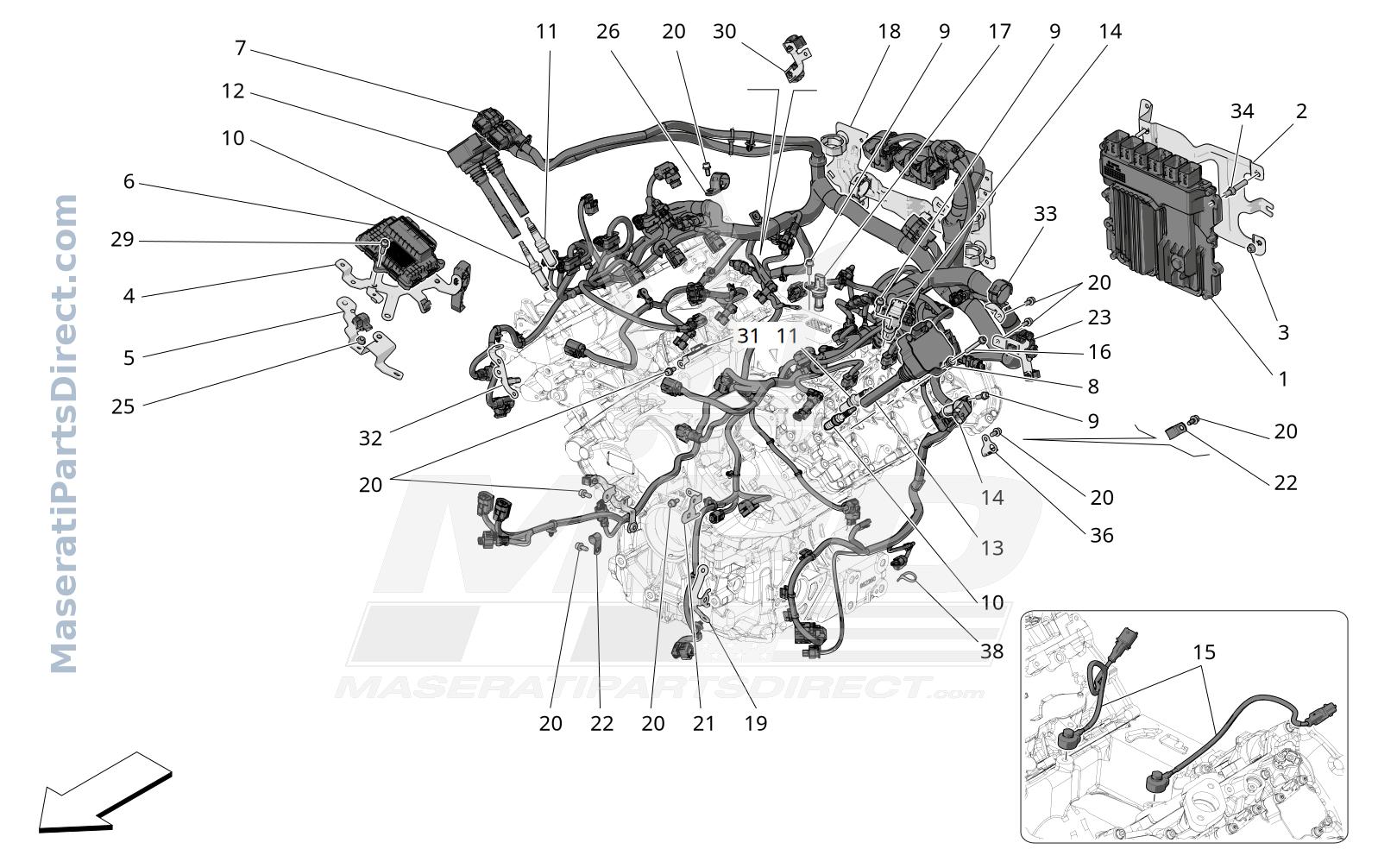

01.90 - 2 - ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670215611	ENGINE CONTROL UNIT	$772.62 Order
2	670156735	BRACKET	$90.83 Order
3	675000969	NUT	$9.73 Order
4	675002145	BRACKET	$80.51 Order
5	675002122	BRACKET	$62.18 Order
6	670222432	CONTROL MODULE	$2,129.15 Order
7	670054319	ENGINE INJECTION WIRING HARNESS	$3,135.40 Order
8	670053737	BUSHING	$25.46 Order
9	670051106	SCREW	$10.80 Order
10	670053696	SPARK PLUG	$28.43 In Stock
11	670053816	ANTECHAMBER SPARK PLUG	$98.98 In Stock
12	670053658	RH HEAD SIDE IGNITION COIL	$222.07 Order
13	670053659	LH HEAD SIDE IGNITION COIL	$222.07 Order
14	670050422	TIMING SENSOR	$109.48 Order
15	670051424	SENSOR FOR FIRING	$52.88 In Stock
16	670053660	SCREW	$12.98 Order
17	670054301	ANGULAR SPEED SENSOR	$170.10 Order
18	670298320	BRACKET	$74.94 Order
19	670052914	BRACKET	$0.00 Order
20	670051104	SCREW	$10.00 Order
21	670052913	BRACKET	$0.00 Order
22	670051479	BRACKET	$33.40 Order
23	670054239	BRACKET	$0.00 Order
25	675000181	NUT	$4.86 Order
26	670050338	CLIP	$40.10 Order
29	675001312	SCREW	$11.40 Order
30	670052916	BRACKET	$0.00 Order
31	670053607	BRACKET	$0.00 Order
32	670052917	BRACKET	$0.00 Order
33	670054237	BRACKET	$0.00 Order
34	670175345	TWIN SCREW	$0.00 Order
36	670052915	BRACKET	$0.00 Order
38	670051301	CLAMP	$0.00 Order
