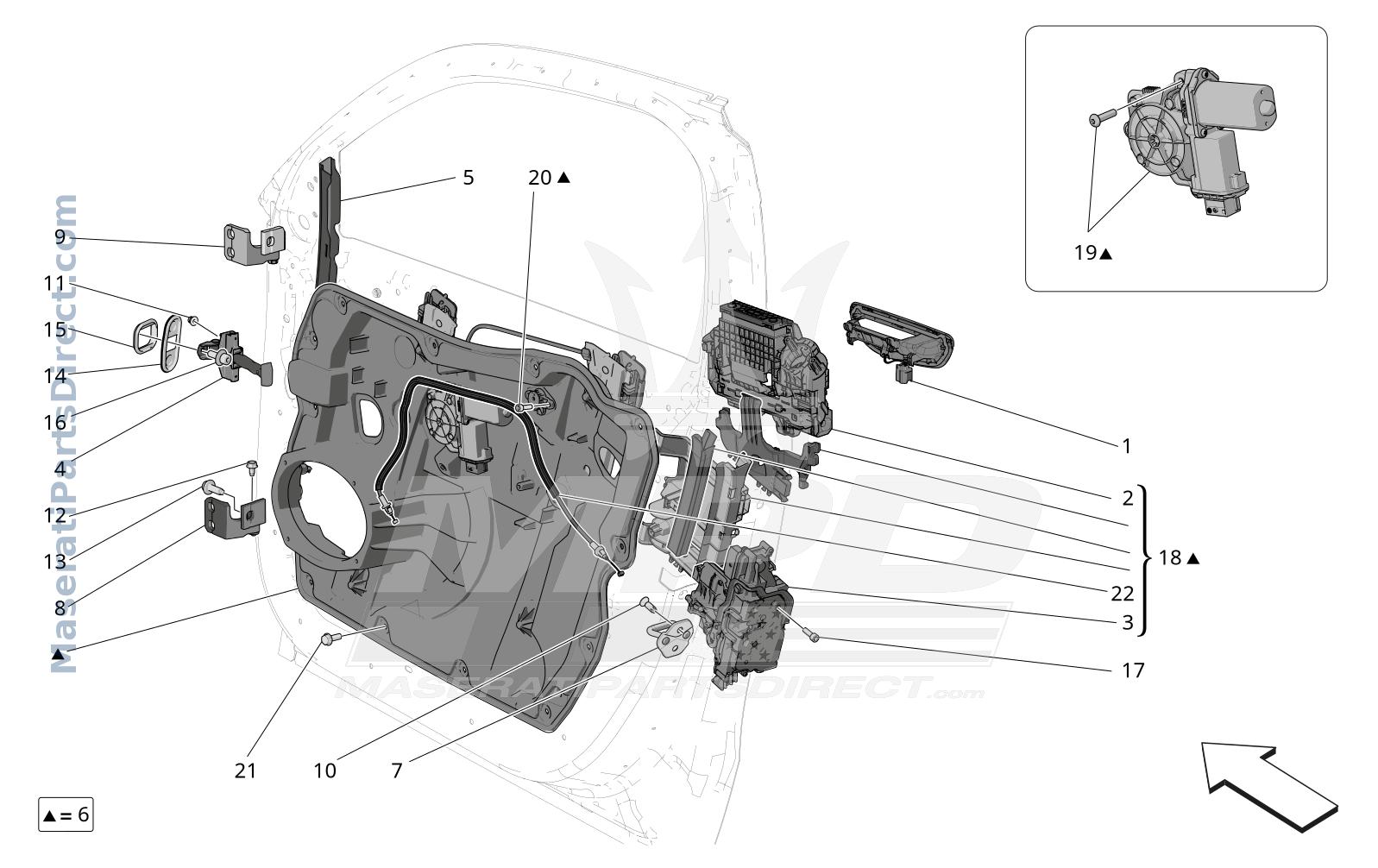

09.31 - 1 - FRONT DOORS: MECHANISMS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	LH DOOR OUTER HANDLE	$0.00 Order
1	custom	LH DOOR OUTER HANDLE	$0.00 Order
2	670157749	LH EXTERNAL DOOR HANDLE RETAINING BRACKET	$544.76 Order
2	670157748	RH EXTERNAL DOOR HANDLE RETAINING BRACKET	$337.72 Order
3	670157584	LH FRONT DOOR LOCK	$908.52 Order
3	670157568	RH FRONT DOOR LOCK	$838.74 Order
4	670157566	TIE ROD	$65.34 Order
5	675002105	FRONT LH WINDOW RUN CHANNEL	$46.14 Order
5	675002106	FRONT RH WINDOW RUN CHANNEL	$46.14 Order
6	673014105	LH FRONT DOOR CARRIER	$830.53 Order
6	673014121	RH FRONT DOOR CARRIER	$800.30 Order
7	670175119	DOORS LOCK STRIKER	$34.72 Order
7	670353926	DOORS LOCK STRIKER	$0.00 Order
8	675002131	LH UPPER HINGE	$132.19 Order
8	675002132	RH UPPER HINGE	$132.19 Order
9	675002133	LH LOWER HINGE	$132.19 Order
9	675002130	RH LOWER HINGE	$132.19 Order
10	675001811	SCREW	$0.00 Order
11	675001318	NUT	$10.14 Order
12	675000005	SCREWM 8x15	$6.93 Order
13	675000485	SCREWM10	$9.73 Order
14	675001584	GASKET	$10.80 Order
15	675001528	GASKET	$10.16 Order
16	670006984	SCREW	$10.40 Order
17	675001327	SCREW	$0.00 Order
18	673014107	LH FRONT PRESENTER KIT	$1,546.40 Order
18	673014106	RH FRONT PRESENTER KIT	$1,394.23 Order
19	673014111	LH FRONT GEARMOTOR KIT	$350.97 Order
19	673014110	RH FRONT GEAR MOTOR KIT	$350.97 Order
20	673014113	SCREW	$33.40 Order
21	675001669	SCREW	$0.00 Order
22	673014112	FRONT HANDLE OPENING CONTROL	$0.00 Order
