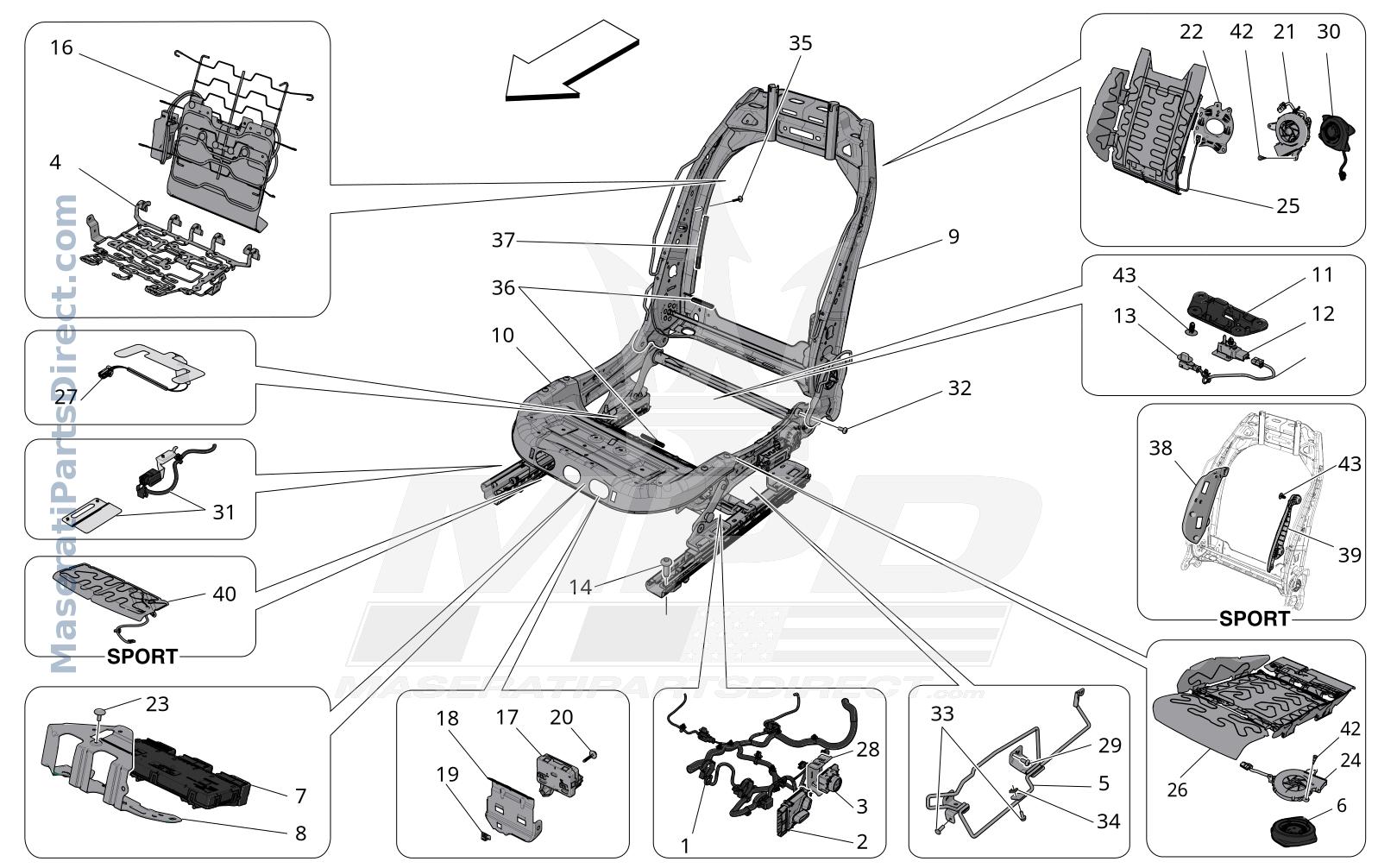

09.41 - 1 - FRONT SEATS: MECHANICS AND ELECTRONICS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	LH SEAT WIRING HARNESSFOR ASSEMBLY < 2036075, ALSO ORDER THE SERVICE KIT 673016655 IF YOU DO NOT REPLACE THE BELT BRANCH AT THE SAME TIME TABLE 7.10 POS 7	$0.00 Order
1	custom	RH SEAT WIRING HARNESSFOR ASSEMBLY < 2036075, ALSO ORDER THE SERVICE KIT 673016655 IF YOU DO NOT REPLACE THE BELT BRANCH AT THE SAME TIME TABLE 7.10 POS 7	$0.00 Order
1	673016744	RH SEAT WIRING HARNESS	$0.00 Order
2	custom	LH SEAT ADJUSTMENT SWITCH	$0.00 Order
2	custom	LH SEAT ADJUSTMENT SWITCH	$0.00 Order
3	670173855	LUMBAR SUPPORT ADJUSTMENT JOYSTICK	$151.25 Order
4	673011273	FRONT SEAT CUSHION SPRING	$0.00 Order
5	673011325	LH SIDE CASING MOUNTING BRACKET	$0.00 Order
5	673011326	RH SIDE CASING MOUNTING BRACKET	$0.00 Order
6	673013908	FAN	$0.00 Order
7	670159953	FRONT SEAT SETTING ECU	$928.44 Order
8	673011282	CONTROL UNIT BRACKET	$25.23 Order
9	675002084	FRONT SEAT BACK FRAME	$274.66 Order
9	675002085	FRONT SEAT BACK FRAME	$0.00 Order
10	670178523	LH FRONT CUSHION FRAME	$927.90 Order
10	675002093	RH FRONT CUSHION FRAME	$807.23 Order
11	673011347	AMBIENT LIGHT LED SUPPORT BRACKET	$0.00 Order
12	670293483	LIGHTING UNDER FRONT SEAT	$0.00 Order
13	673011384	ANBIENT LIGHT CONNECTION BRIDLE	$0.00 Order
14	675002168	SCREW	$9.72 Order
16	custom	LUMBAR SUPPORT	$0.00 Order
17	670218807	HEATER-FAN ECU	$152.59 Order
18	673011283	BRACKET	$0.00 Order
19	673011436	NUT	$0.00 Order
20	673011435	SCREW	$0.00 Order
21	673011289	BACKREST AIR DIFFUSER	$0.00 Order
22	673011290	BRACKET	$0.00 Order
23	673011420	RIVET	$0.00 Order
24	custom	PILLOW AIR DIFFUSER	$0.00 Order
25	custom	CPL. FRONT SEAT BACK HEATER	$0.00 Order
26	custom	CPL. FRONT SEAT CUSHION HEATER	$0.00 Order
27	673013280	SBR SENSOR	$114.49 Order
28	670006150	SUPPORT	$36.01 Order
29	673011418	SCREW	$0.00 Order
30	673011285	FAN	$0.00 Order
31	673011319	STPS SENSOR	$99.77 Order
32	673011414	SCREW	$0.00 Order
33	673000236	SCREW	$6.21 Order
34	673000289	BRACKET	$11.72 Order
35	673011430	PIN	$9.17 Order
36	673011427	RUBBER PROFILE	$0.00 Order
37	673011428	RUBBER PROFILE	$0.00 Order
38	673011018	RH SUPPORT	$0.00 Order
38	673011020	RH SUPPORT	$0.00 Order
39	673011021	LH SUPPORT	$0.00 Order
39	673011019	LH SUPPORT	$0.00 Order
40	673011313	CUSHION LENGTH ADJUSTMENT HEATER	$31.55 Order
41	673011284	BACKREST ANTI-NOISE COVER	$0.00 Order
42	673011434	PIN	$0.00 Order
43	custom	CLIP	$0.00 Order
