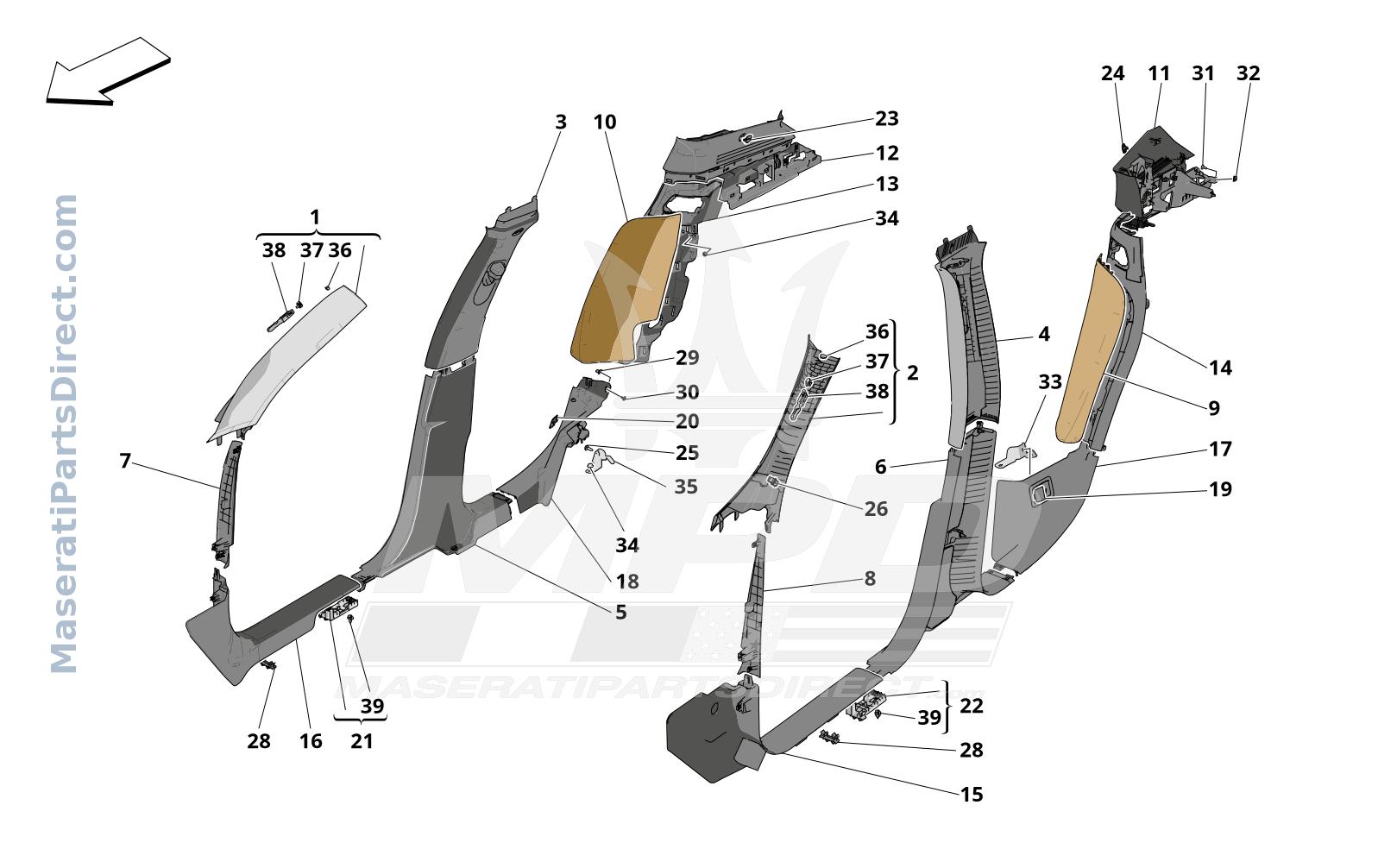

09.44 - 1 - PASSENGER COMPARTMENT B PILLAR TRIM PANELS AND SIDE PANELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	FRONT RH PILLAR COVER ASSEMBLY	$0.00 Order
2	custom	FRONT LH PILLAR COVER ASSEMBLY	$0.00 Order
3	custom	RH UPPER CENTRAL PILLAR COVER GUARD	$0.00 Order
4	custom	LH UPPER CENTRAL PILLAR COVER GUARD	$0.00 Order
5	custom	RH LOWER CENTRAL PILLAR COVER GUARD	$0.00 Order
6	custom	LH LOWER CENTRAL PILLAR COVER GUARD	$0.00 Order
7	custom	RH FRONT PILLAR PANEL	$0.00 Order
8	custom	LH FRONT PILLAR PANEL	$0.00 Order
9	custom	LH LOWER REAR PILLAR COVER GUARD	$0.00 Order
10	custom	RH LOWER REAR PILLAR COVER GUARD	$0.00 Order
11	custom	LH UPPER REAR PILLAR COVER GUARD	$0.00 Order
12	custom	RH UPPER REAR PILLAR COVER GUARD	$0.00 Order
13	custom	RH REAR BRACKET	$0.00 Order
14	custom	LH REAR BRACKET	$0.00 Order
15	custom	LH FRONT KICK PLATE	$0.00 Order
16	custom	RH FRONT KICK PLATE	$0.00 Order
17	custom	LH REAR KICK PLATE	$0.00 Order
18	custom	RH REAR KICK PLATE	$0.00 Order
19	custom	LH PLATE	$0.00 Order
20	custom	RH PLATE	$0.00 Order
21	675002177	RH BRACKET	$0.00 Order
22	675002178	LH BRACKET	$0.00 Order
23	custom	PLUG	$0.00 Order
24	custom	PLUG	$0.00 Order
25	675000649	SCREW	$11.40 Order
26	675002181	CLIP	$8.64 Order
28	675002013	FIXING SPRING	$10.62 Order
29	675002012	BLOCK	$9.17 Order
30	675001390	SCREW	$11.52 $9.79 In Stock
31	675000649	SCREW	$11.40 Order
32	675002182	BLOCK	$0.00 Order
33	670160955	LH BRACKET	$17.50 Order
34	675000095	NUTM6	$8.64 Order
35	670160954	RH BRACKET	$17.50 Order
36	673016807	CLIP	$8.64 Order
37	673016809	CLAMP STOP	$9.03 Order
38	673016808	CLAMP	$21.63 Order
39	673017671	CLIP	$0.00 Order
