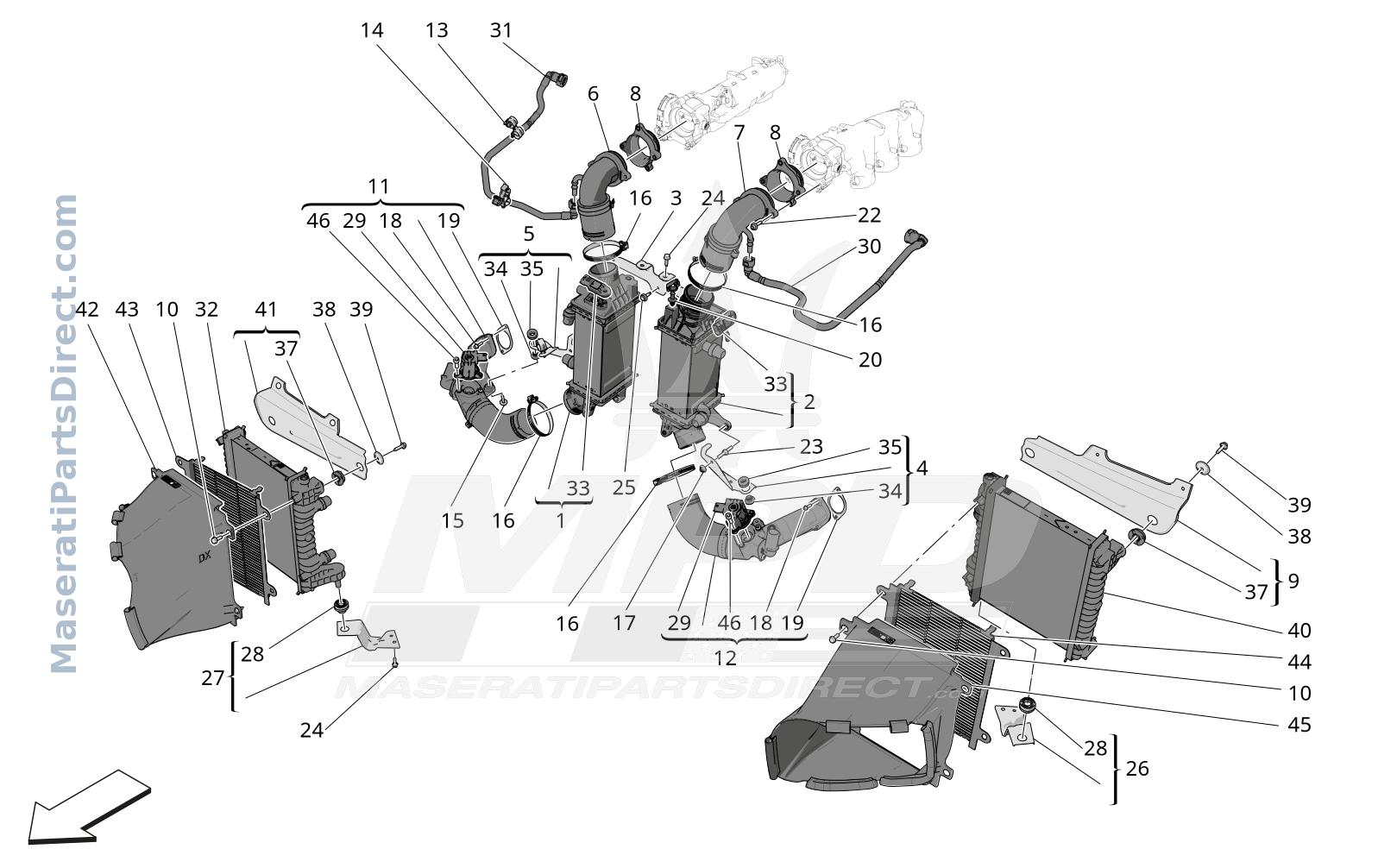

01.32 - 2 - INTERCOOLER SYSTEM

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	675001657	RH INTERCOOLER	$846.41 Order
2	675001656	LH INTERCOOLER	$846.41 Order
3	675001573	UPPER BRACKET	$51.00 Order
4	675001736	LH BRACKET INTERCOOLER TUBE	$61.23 Order
5	675001655	RH BRACKET INTERCOOLER TUBE	$68.11 Order
6	675001582	RH SLEEVE INTERCOOLLER EXIT	$674.59 Order
7	675001577	LH SLEEVE INTERCOOLLER EXIT	$669.71 Order
8	675001658	UNION	$187.86 Order
9	675001990	BRACKET	$160.60 Order
10	675002334	SCREW	$44.28 Order
11	675001660	SLEEVE FROM TURBINE TO RH INTERCOOLER	$1,025.90 Order
12	675001661	SLEEVE FROM TURBINE TO LH INTERCOOLER	$1,057.37 Order
13	675001998	CLIP	$11.25 Order
14	675001999	CLIP	$20.76 Order
15	675001078	SCREW	$10.80 Order
16	675000362	COLLARD.78	$11.95 In Stock
17	675001063	NUT	$10.14 Order
18	675000242	SCREWM6X25	$11.52 Order
19	675001961	GASKET	$52.55 Order
20	675001761	CLIP	$32.12 Order
22	675001034	SCREW	$10.16 Order
23	675001162	SCREW	$11.95 Order
24	675001119	SCREW	$8.00 Order
25	675001070	SCREW	$10.40 Order
26	675001572	LH LOWER BRACKET ASSEMBLY	$55.05 Order
27	675001571	RH BRACKET	$45.52 Order
28	675000545	BUSHING	$12.11 Order
29	675001051	MODULAR SOLENOID VALVE	$216.68 Order
30	675002009	LH STEAM TUBE	$0.00 Order
30	675002010	LH STEAM TUBE	$216.87 Order
31	675002001	RH VAPOUR PIPE	$99.34 Order
32	675001056	RH ENGINE RADIATOR	$770.74 Order
33	675000014	PRESSURE TRANSMITTER	$237.27 Order
34	675000017	SPACER	$14.56 Order
35	675000016	FLEXIBLE PAD	$21.48 Order
37	675000201	FLEXIBLE PAD	$19.15 Order
38	675000409	CUP	$9.24 Order
39	675001048	SCREW	$8.00 Order
40	675001057	LH ENGINE RADIATOR	$770.74 Order
41	675001969	BRACKET	$162.45 Order
42	670178987	RH SIDE AIR DUCT	$171.56 Order
43	670161248	RH RADIATOR GRILLE	$91.27 Order
44	670161264	LH RADIATOR GRILLE	$91.27 Order
45	670178985	LH SIDE AIR DUCT	$164.63 Order
46	675002109	SCREW	$9.17 Order
