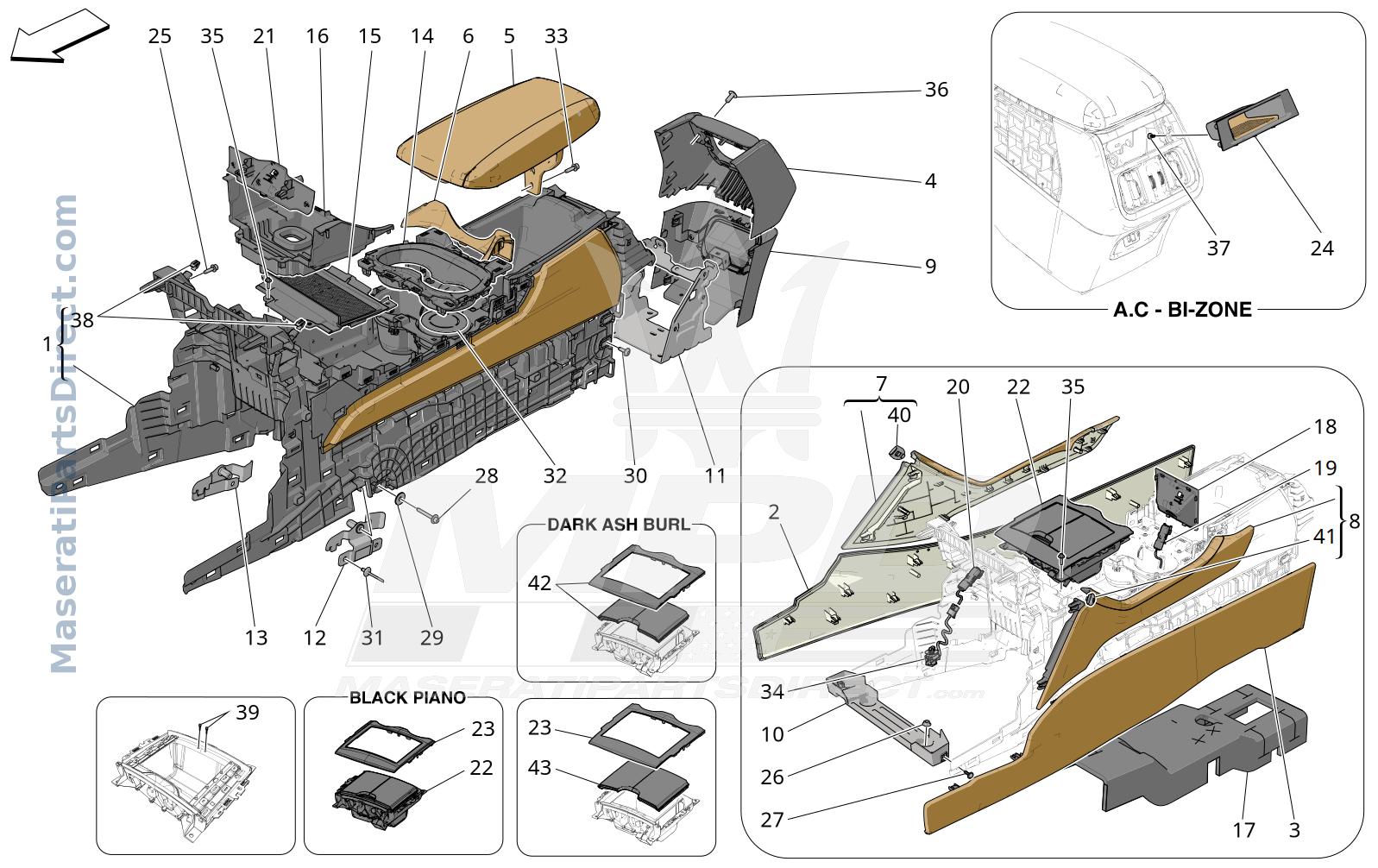

09.51 - 1 - ACCESSORY CONSOLE AND CENTRE CONSOLE

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	COMPLETE TUNNEL COVER STRUCTURE	$0.00 Order
2	custom	RH SHIELD	$0.00 Order
3	custom	LH SHIELD	$0.00 Order
4	custom	REAR CENTRAL CONSOLE COVER	$0.00 Order
5	custom	CENTRAL CONSOLE ARMREST	$0.00 Order
6	custom	ARMREST BEZEL	$0.00 Order
7	custom	RH LATERAL PANEL	$0.00 Order
8	custom	LH LATERAL PANEL	$0.00 Order
9	custom	REAR TRIM	$0.00 Order
10	675002024	FRONT BRACKET	$41.18 Order
11	675002025	REAR BRACKET	$132.13 Order
12	675002026	LH BRACKET	$37.72 Order
13	675002028	RH BRACKET	$37.72 Order
14	custom	CUP HOLDER	$0.00 Order
15	custom	CELL PHONE HOLDER	$0.00 Order
16	670161953	REINFORCEMENT	$137.72 Order
17	670174996	SOUNDPROOFING ELEMENT	$114.35 Order
18	custom	PLUG	$0.00 Order
19	670159387	DOMELIGHT	$28.57 Order
20	custom	DOMELIGHT	$0.00 Order
21	custom	PLUG	$0.00 Order
22	custom	TUNNEL GLOVE COMPARTMENT	$0.00 Order
23	custom	TOP CABINET FLAP	$0.00 Order
25	675000246	SCREW	$11.52 Order
26	675000095	NUTM6	$8.64 Order
27	675001491	SCREW	$8.64 In Stock
28	670009437	SCREW	$9.84 Order
29	675002023	WASHER	$9.84 Order
30	675001974	SCREW	$9.84 Order
31	675001915	RIVET	$9.84 Order
32	673013365	CUP HOLDER MAT	$75.46 Order
33	675002021	SCREW	$11.52 Order
34	670214751	CONSOLE BEZEL CABLE	$23.66 Order
35	670220002	SCREW	$9.17 Order
36	675002027	SCREW	$9.84 Order
37	675001049	SCREW	$10.14 Order
38	673015637	CLIP	$9.20 Order
39	673016627	RUBBER	$0.00 Order
40	673016800	RH BUTTON	$0.00 Order
41	673016921	LH BUTTON	$0.00 Order
42	673017240	LIDS KIT WITH FRAME	$667.44 Order
43	673017244	LIDS KIT	$0.00 Order
