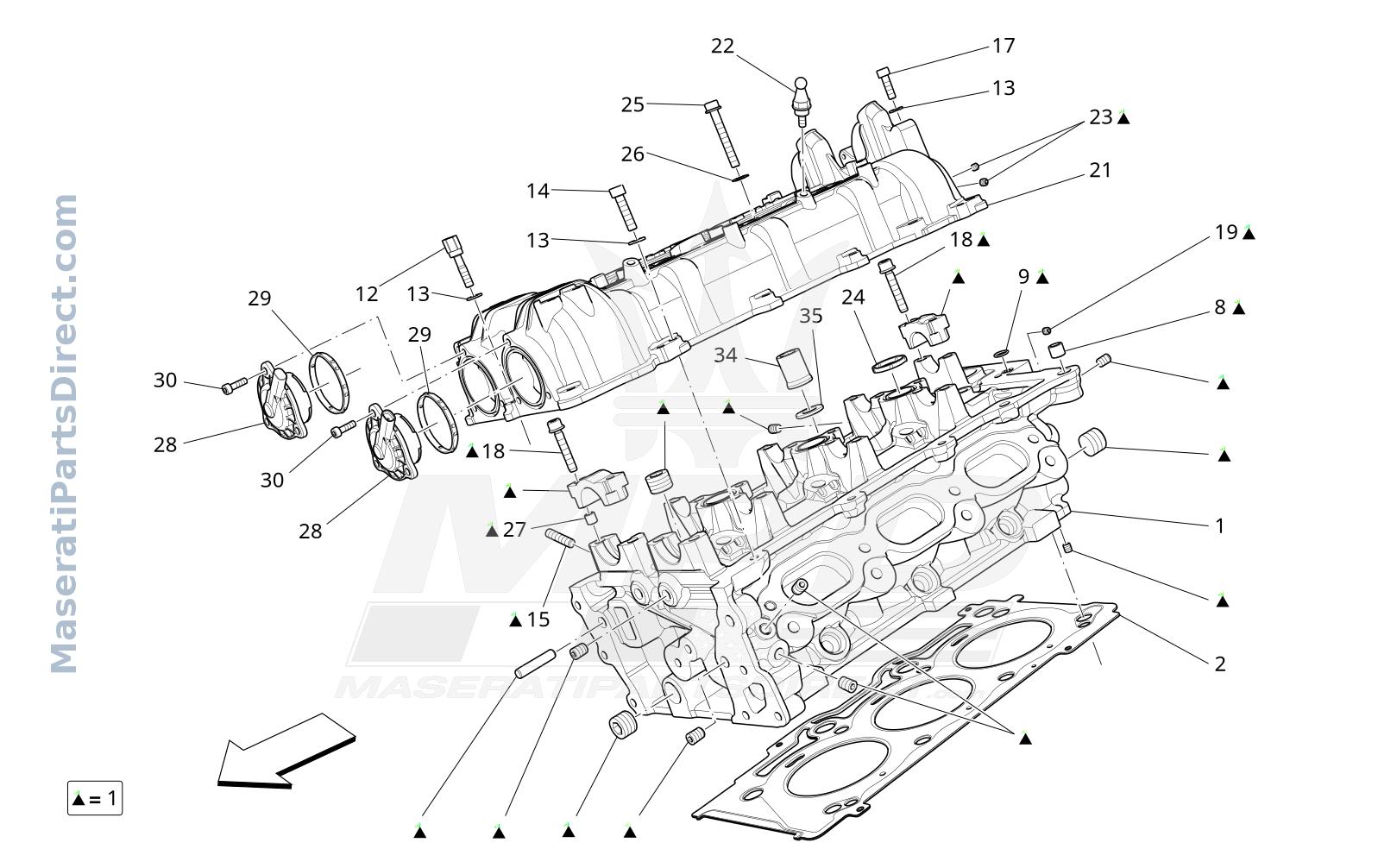

01.20 - 2 - RH CYLINDER HEAD

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	312532	RH HEAD ASSEMBLY	$4,386.85 Order
2	303029 Replaced by: #324016	RH HEAD GASKET	$0.00 Order
2	318131 Replaced by: #324016	RH HEAD GASKET	$0.00 Order
2	324016	RH HEAD GASKET	$184.82 Order
8	279564	CENTERING DOWEL	$31.49 Order
9	134704	O.R. GASKET	$6.93 Order
12	214412	STUD	$45.95 Order
13	675000106	WASHER	$4.29 Order
14	157218	SCREWM6X25	$10.62 Order
15	272605	STUD	$10.76 Order
17	201599	SCREWM6X20	$11.52 Order
18	243719	SCREWM6X35	$9.84 Order
19	199760	THREADED PLUG	$6.21 Order
21	318089 Replaced by: #857540	RH CYLINDER HEAD COVER	$0.00 Order
21	857540	RH CYLINDER HEAD COVER	$1,011.40 Order
22	292326	PIN	$24.80 Order
23	199760	THREADED PLUG	$6.21 Order
24	303025	GASKET	$16.98 Order
25	296759	SCREWM6X45	$8.28 Order
26	296075	WASHERD.13X5.8	$22.86 Order
27	102725	CENTERING DOWEL	$10.40 Order
28	306857	OIL PRESSURE CHECK VALVE	$78.96 Order
29	302374	GASKET	$20.20 Order
30	14304221	SCREWM5X16	$7.65 Order
34	321187	NUT	$37.07 Order
35	315775 Replaced by: #321187	WASHER	$0.00 Order
