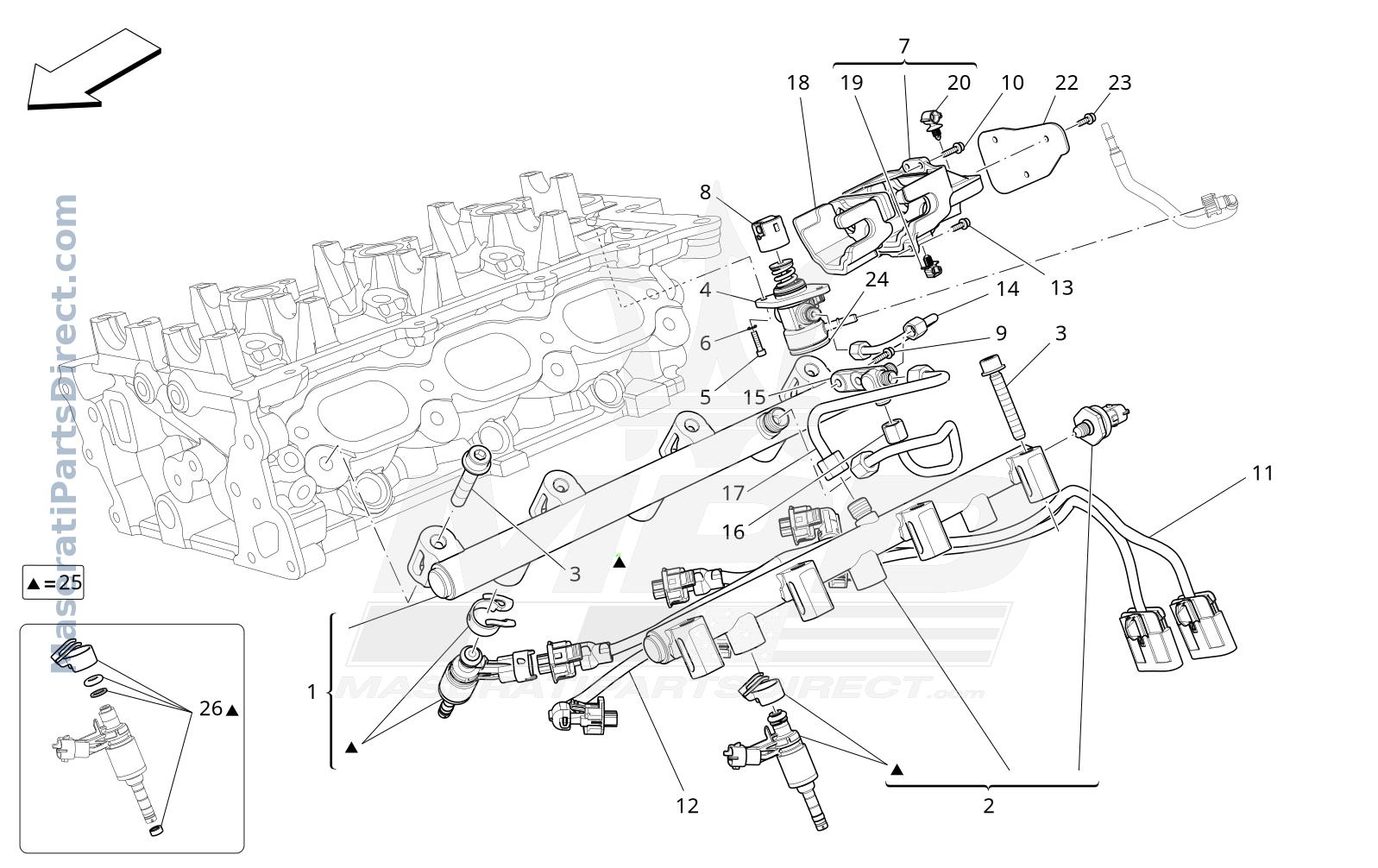

01.43 - 4 - FUEL PUMPS AND CONNECTION LINES

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	327905	RH FUEL PIPE WITH INJECTORS	$2,180.43 Order
2	327906	LH FUEL PIPE WITH INJECTORS	$1,521.45 Order
3	285494	SCREWM8X50	$11.55 Order
4	329202	HIGH PRESSURE FUEL PUMPNBD26 PHP099	$1,355.22 Order
5	14305434	SCREWM6X25	$32.98 Order
6	12639724	WASHERD.6.15-11X1	$5.58 Order
7	309114	CPL. ACOUSTIC COVER	$524.08 Order
8	270601	BOWL	$88.48 Order
9	231620	SCREWM6X25	$5.58 In Stock
10	231619	SCREWM6X22	$8.64 Order
11	296209	RH CABLE	$550.91 Order
12	311644	LH CABLE	$147.20 Order
13	231617	SCREWM6X18	$8.28 Order
14	310550	HIGH-PRESSURE FUEL PIPE BETWEEN PUMP AND DISTRIBUTOR	$89.16 Order
15	287494 Replaced by: #298649.0	DISTRIBUTOR	$0.00 Order
15	298649	DISTRIBUTOR	$467.31 Order
16	282572	RH RAIL-PUMP HIGH-PRESSURE FUEL PIPE	$85.70 In Stock
17	282571	LH RAIL-PUMP HIGH-PRESSURE FUEL PIPE	$73.04 In Stock
18	302810	SOUNDPROOFING ELEMENT	$85.23 Order
19	283287	CLIP	$11.52 Order
20	303438	CLIP	$41.19 Order
22	670030185	PLATE	$81.78 Order
23	675000173	SCREWM6X16	$10.40 Order
24	333908	DAMPER	$17.26 Order
25	324377	INJECTOR ASSEMBLY	$205.35 Order
26	673015589	INJECTOR SEAL KIT	$106.61 Order
