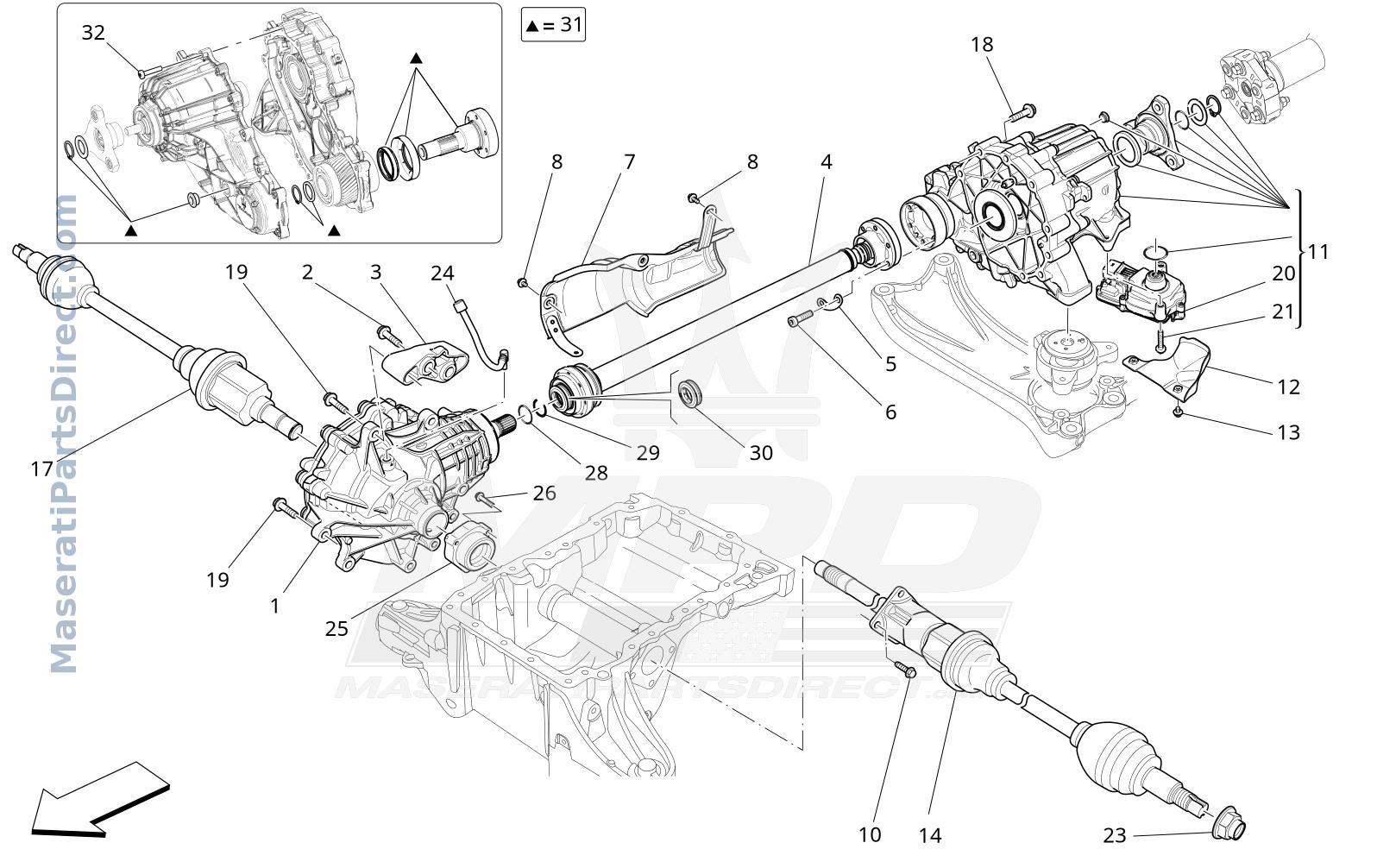

03.22 - 1 - FRONT WHEELS TRANSMISSION

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670032183	FRONT DIFFERENTIAL	$2,083.34 Order
2	675000385	SCREWM10X40	$9.72 Order
3	670032181	BRACKET	$252.45 Order
4	670031958	FRONT DRIVE SHAFT	$1,718.77 Order
5	670003772	PLATE	$10.40 Order
6	675000583	SCREW	$9.73 Order
7	670003989	HEAT SHIELD	$158.03 Order
8	675000102	SCREWM6X14	$13.28 Order
10	675000384	SCREWM10X25	$11.55 Order
11	670038072 Replaced by: #670152726	ALL WHEEL DRIVE TRANSFER CASE	$0.00 Order
11	670105827 Replaced by: #670152726	ALL WHEEL DRIVE TRANSFER CASE	$0.00 Order
11	670152726	ALL WHEEL DRIVE TRANSFER CASE	$4,423.09 Order
12	670004015	HEAT SHIELD	$92.28 Order
13	675000365	SCREWM6X18	$11.95 Order
14	670175271 Replaced by: #670301924	LH AXLE SHAFT ASSEMBLY	$0.00 Order
14	670301924	LH AXLE SHAFT ASSEMBLY	$2,272.43 Order
17	670175270 Replaced by: #670301923	RH AXLE SHAFT ASSEMBLY	$0.00 Order
17	670301923	RH AXLE SHAFT ASSEMBLY	$2,015.95 Order
18	675000386	SCREWM10X60	$8.00 Order
19	675000385	SCREWM10X40	$9.72 Order
20	670038803 Replaced by: #670105823	POWER TAKEOFF CONTROL UNIT	$0.00 Order
20	670105823	POWER TAKEOFF CONTROL UNIT	$2,041.15 Order
21	673009049	SCREW	$0.00 Order
23	675000138	NUT	$19.15 Order
24	670033032	VENT PIPE	$68.94 Order
26	46328688	SCREW	$12.98 Order
28	673008007	O.R. GASKET	$12.41 Order
29	673008008	LOCK RING	$21.72 Order
30	675000719	GASKET	$11.15 Order
31	673016819	TRANSFER CASE FLANGE KIT	$452.76 Order
31	673016820	TRANSFER CASE FLANGE KIT	$408.24 Order
32	673016821	TRANSFER CASE FIXING KIT	$152.13 Order
