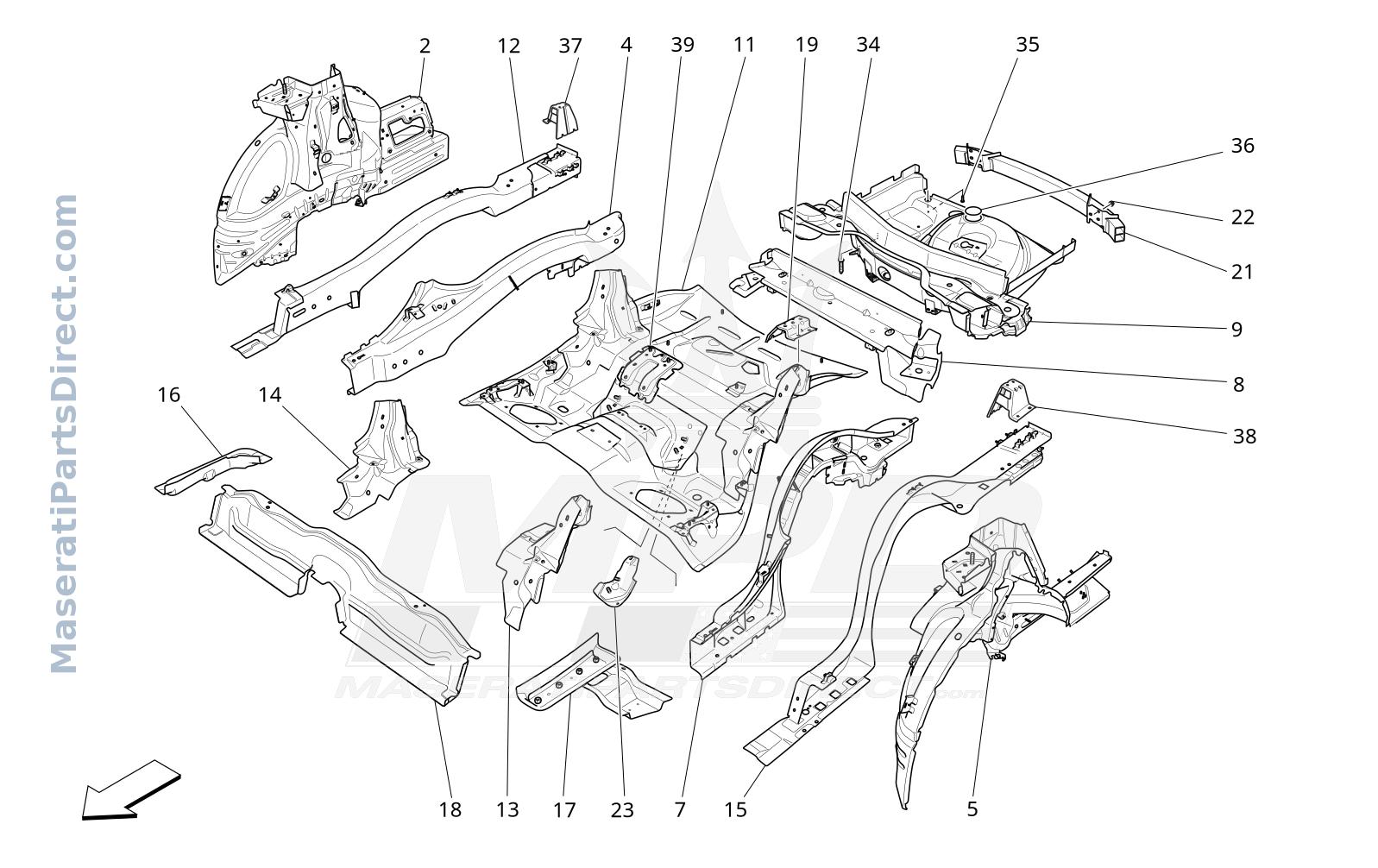

09.05 - 1 - REAR STRUCTURAL FRAMES AND SHEET PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
2	673010189	RH REAR WHEELHOUSE	$1,246.10 Order
2	673007203 Replaced by: #673010189	RH REAR WHEELHOUSE	$0.00 Order
4	673005689	RH OUTER REAR SIDE MEMBER	$853.06 Order
4	673007933	RH OUTER REAR SIDE MEMBER	$857.19 Order
5	673010190	LH REAR WHEELHOUSE	$1,530.70 Order
5	673007204 Replaced by: #673010190	LH REAR WHEELHOUSE	$0.00 Order
7	673005691 Replaced by: #673007934	LH OUTER REAR SIDE MEMBER	$0.00 Order
7	673007934	LH OUTER REAR SIDE MEMBER	$857.19 Order
8	673005692	LONGITUDINAL MEMBER CONNECTING CROSS MEMBER	$585.21 Order
8	673009139	LONGITUDINAL MEMBER CONNECTING CROSS MEMBER	$599.03 Order
9	673005693 Replaced by: #673009296	SPARE WHEEL COMPARTMENT	$0.00 Order
9	673008182 Replaced by: #673009296	SPARE WHEEL COMPARTMENT	$0.00 Order
9	673009296	SPARE WHEEL COMPARTMENT	$1,321.46 Order
11	673005694 Replaced by: #673012332	FRONT SIDE OF REAR FLOOR ASSEMBLY	$0.00 Order
11	673012332	FRONT SIDE OF REAR FLOOR ASSEMBLY	$1,171.29 Order
12	673007932	RH INTERNAL REAR SIDE MEMBER	$702.86 Order
13	673007206	LH REAR PILLAR REINFORCEMENT	$475.25 Order
14	673007205	RH REAR PILLAR REINFORCEMENT	$475.25 Order
15	673007931	LH INTERNAL REAR SIDE MEMBER	$698.13 Order
16	673003064	RH GEARBOX SUPPORT SIDE RAIL	$107.23 Order
17	673000382	LH GEARBOX SUPPORT SIDE RAIL	$176.02 Order
18	673005697	REAR CROSS MEMBER	$499.21 Order
19	670033444	LH BRACKET	$32.34 Order
19	670033442	RH BRACKET	$32.34 Order
21	670033529 Replaced by: #670107339	REAR CRASH-BOX CROSS MEMBER ASS.	$0.00 Order
21	670107339	REAR CRASH-BOX CROSS MEMBER ASS.	$750.36 Order
22	675000443	NUT	$7.65 Order
23	673009200	LH REAR SEAT BELT FAST. LATCH REINFORCEMENT ASS	$0.00 Order
23	673009199	RH REAR SEAT BELT FAST. LATCH REINFORCEMENT ASS	$0.00 Order
34	675000624	WELDED STUD	$8.28 Order
35	675000698	RIVET	$10.22 Order
36	670030797	PLUG	$20.28 Order
37	670034701 Replaced by: #670222542	RH BRACKET	$0.00 Order
37	670222542	RH BRACKET	$106.79 Order
38	670034703	LH BRACKET	$107.13 Order
39	670032545	BRACKET	$0.00 Order
