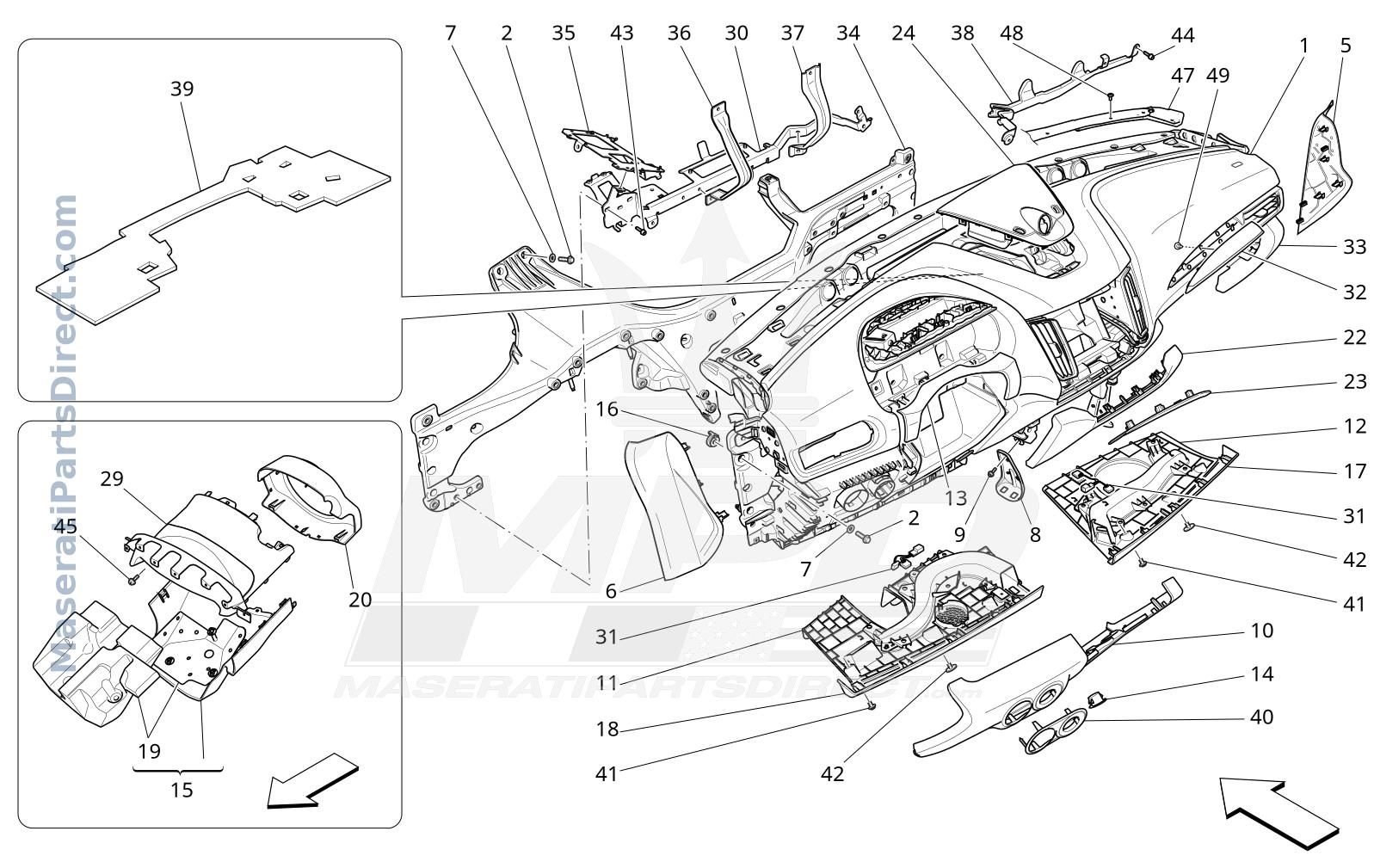

09.50 - 2 - DASHBOARD UNIT

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	DASHBOARD ASSEMBLY	$0.00 Order
2	675000508	SCREWM8X50	$9.73 Order
5	custom	DASHBOARD RH SIDE COVER	$0.00 Order
6	custom	DASHBOARD LH SIDE COVER	$0.00 Order
7	675000177	WASHERD.8.45-25X1.5	$8.64 Order
8	670032164	BRACKET	$45.12 Order
9	675000459	SCREWM8X25	$9.73 Order
10	custom	DASHBOARD LH TRIM ASSEMBLY	$0.00 Order
11	custom	LH UNDERDASHBOARD COVER	$0.00 Order
12	custom	RH UNDERDASHBOARD COVER	$0.00 Order
13	custom	STEERING COLUMN UPPER GUARD	$0.00 Order
14	custom	TEMPERATURE SENSOR TRIM	$0.00 Order
15	custom	COMPLETE STEERING COLUMN LOWER GUARD	$0.00 Order
16	675000418	ADJUSTER BUSHING	$15.09 Order
17	custom	RH PLATE	$0.00 Order
18	custom	LH PLATE	$0.00 Order
19	custom	SHOCK ABSORBING MATERIAL AND PLATE	$0.00 Order
20	custom	STEERING COLUMN FRONT GUARD	$0.00 Order
22	custom	LOWER CENTRAL FRAME	$0.00 Order
23	custom	INSTRUMENT CLUSTER TRIM PLATE	$0.00 Order
24	custom	CENTRAL LOUD SPEAKER GRILL	$0.00 Order
29	custom	STEERING COLUMN BELLOWS	$0.00 Order
30	670032113	BRACKET	$307.06 Order
31	675000427	COURTESY LIGHT BULB	$49.14 Order
32	custom	PASSENGER SIDE DASHBOARD MOULDING	$0.00 Order
33	custom	GLOVE COMPARTMENT PANEL	$0.00 Order
34	670003676	DASHBOARD CROSS MEMBER	$593.29 Order
35	670032114	BRACKET	$93.74 Order
36	670032115	LH BRACKET	$166.85 Order
37	670032116	RH BRACKET	$166.85 Order
38	670032031	BRACKET	$228.95 Order
39	670034478	SOUNDPROOFING ELEMENT	$94.92 Order
40	custom	LIGHT CONTROL FRAME	$0.00 Order
41	670035714	SCREW	$9.20 Order
42	670030282	FASTENER BUTTON	$58.53 Order
43	675000242	SCREWM6X25	$11.52 Order
44	675000242	SCREWM6X25	$11.52 Order
45	675000768	SCREW	$9.72 Order
49	670035715	SCREW	$0.00 Order
