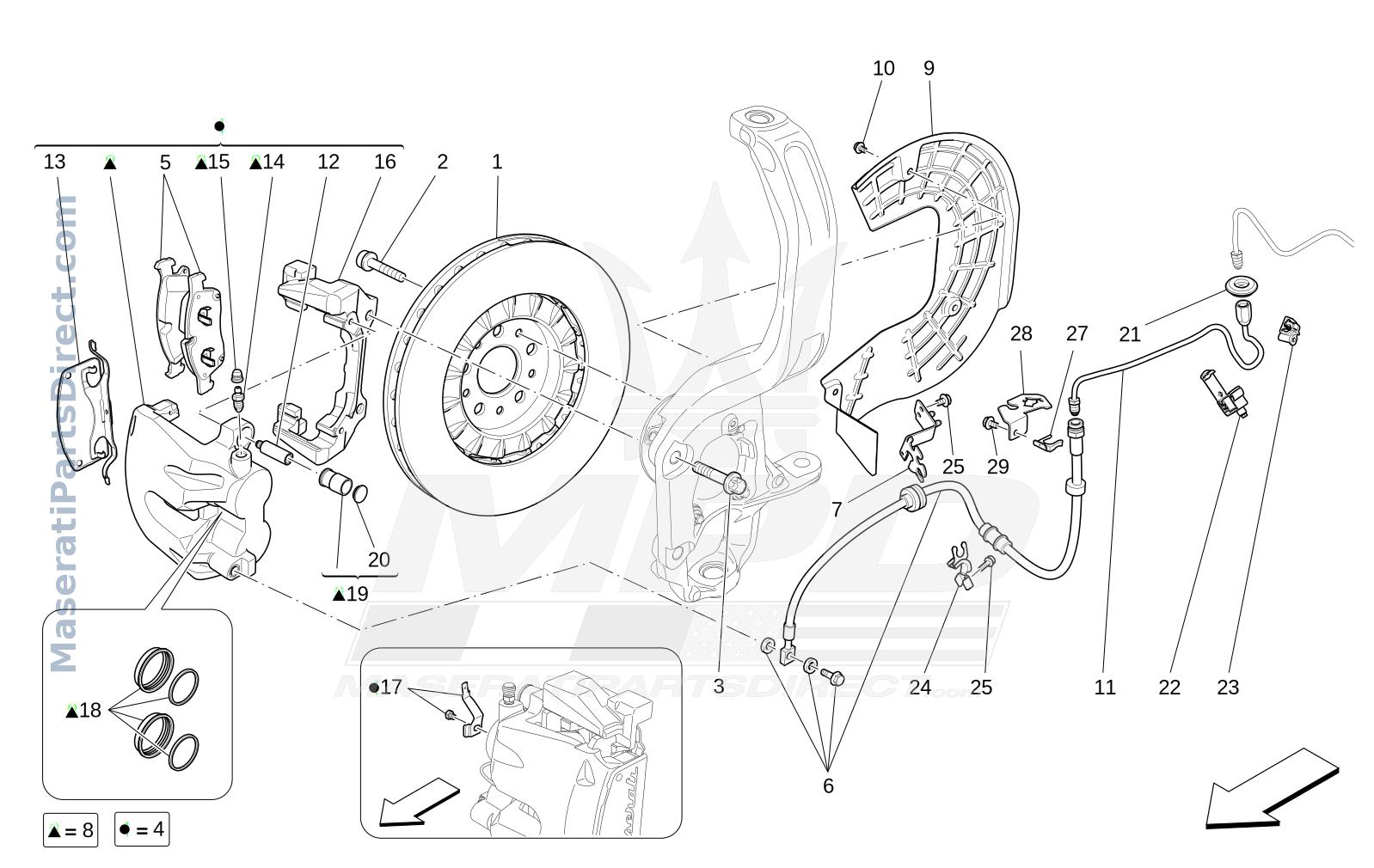

04.10 - 1 - BRAKING DEVICES ON FRONT WHEELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670038175	FRONT BRAKE DISC	$365.96 In Stock
2	675000081	SCREWM10	$11.95 Order
3	670032055	SCREW	$11.55 In Stock
4	custom	LH FRONT CALIPER ASSEMBLY	$0.00 Order
4	custom	LH FRONT CALIPER ASSEMBLY	$0.00 Order
4	custom	LH FRONT CALIPER ASSEMBLYFOR THE FIRST REPLACE, PLEASE INSTALL ON THE OPPOSITE SIDE THE LAST GENERATION BRACKET IN POS. 16	$0.00 Order
4	custom	LH FRONT CALIPER ASSEMBLYFOR THE FIRST REPLACE, PLEASE INSTALL ON THE OPPOSITE SIDE THE LAST GENERATION BRACKET IN POS. 16	$0.00 Order
4	custom	RH FRONT CALIPER ASSEMBLY	$0.00 Order
4	custom	RH FRONT CALIPER ASSEMBLY	$0.00 Order
4	custom	RH FRONT CALIPER ASSEMBLYFOR THE FIRST REPLACE, PLEASE INSTALL ON THE OPPOSITE SIDE THE LAST GENERATION BRACKET IN POS. 16	$0.00 Order
4	custom	RH FRONT CALIPER ASSEMBLYFOR THE FIRST REPLACE, PLEASE INSTALL ON THE OPPOSITE SIDE THE LAST GENERATION BRACKET IN POS. 16	$0.00 Order
5	custom	FRONT PADS KIT	$0.00 Order
5	custom	FRONT PADS KIT	$0.00 Order
6	670100004	FLEXIBLE PIPE TO FRONT CALIPERS	$52.16 Order
7	670032062	LH FRONT BRACKET	$39.45 Order
7	670032061	RH FRONT BRACKET	$36.88 Order
8	custom	LH CALIPER HOUSINGCOMPONENT VALID ONLY FOR VEHICLE WHICH HAVE INSTALLED FIRST GENERATION OF BRAKE CALIPERS (6700398xx)	$0.00 Order
8	custom	RH CALIPER HOUSINGRCOMPONENT VALID ONLY FOR VEHICLE WHICH HAVE INSTALLED FIRST GENERATION OF BRAKE CALIPERS (6700398xx)	$0.00 Order
9	675000066	LH FRONT BRAKE DISC GUARD	$31.70 Order
9	675000067	RH FRONT BRAKE DISC GUARD	$31.70 Order
10	675000126	SCREW	$7.65 Order
11	670039670	LH FRONT BRAKE PIPE	$50.63 Order
11	670039841	RH FRONT BRAKE PIPE	$50.63 Order
12	673004425	PIN	$84.51 Order
13	custom	COVER	$0.00 Order
14	673004422	BLEEDER SCREW	$85.23 Order
15	673004423	DUST SEAL	$60.83 Order
16	custom	BRACKET	$0.00 Order
16	custom	BRACKET	$0.00 Order
16	custom	BRACKETFOR THE FIRST REPLACE, PLEASE INSTALL ON THE OPPOSITE SIDE THE LAST GENERATION BRACKET IN POS. 16	$0.00 Order
17	673004426	BRACKET	$90.12 Order
18	673004421	GASKET KIT	$93.74 Order
19	-	BRAKE CALIPER GUIDEAVAILABLE ONLY WITH CALIPER ASSEMBLY	$0.00 Order
20	673009202	PLUG	$14.14 Order
21	675000281	GASKET	$12.71 Order
22	670039674	CLIP	$11.25 Order
23	675000272	CLIP	$11.25 Order
24	670007373	BRACKET	$31.49 Order
25	675000126	SCREW	$7.65 Order
27	675000276	SPRING PLATE	$6.93 Order
28	670037129	LH BRACKET	$15.89 Order
28	670037128	RH BRACKET	$15.89 Order
29	675000621	SCREW	$10.22 Order
