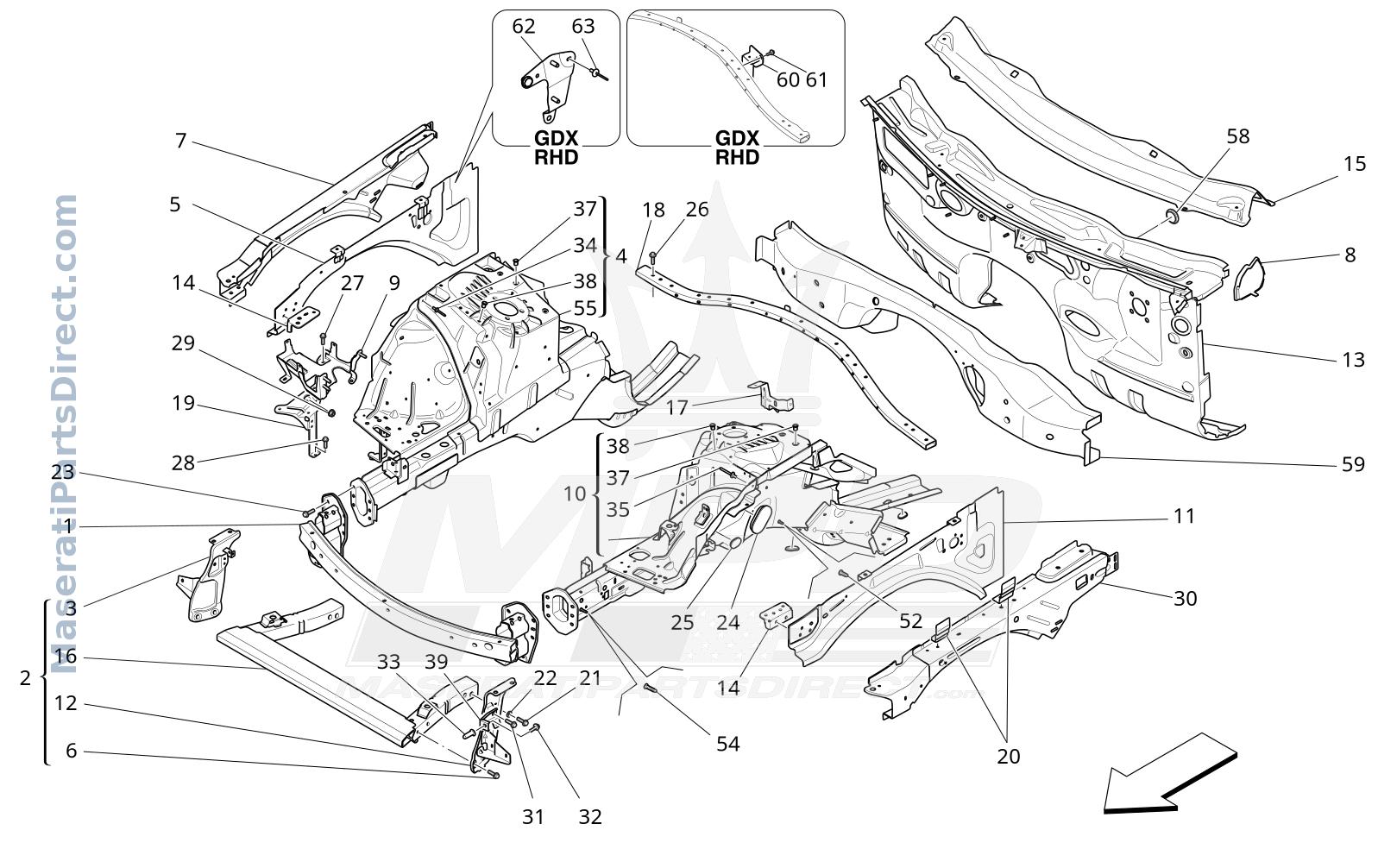

09.03 - 1 - FRONT STRUCTURAL FRAMES AND SHEET PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673007200	FRONT CROSS MEMBER ASS.	$1,214.32 Order
2	670032498	THIRD LOAD PATH CROSS MEMBER	$0.00 Order
3	670033907 Replaced by: #670175518	RH BRACKET	$0.00 Order
3	670175518	RH BRACKET	$72.38 Order
4	673005685 Replaced by: #673009228	RH COMPLETE FRONT STRUT	$0.00 Order
4	673008286 Replaced by: #673009228	RH COMPLETE FRONT STRUT	$0.00 Order
4	673009209 Replaced by: #673009228	RH COMPLETE FRONT STRUT	$0.00 Order
4	673009228	RH COMPLETE FRONT STRUT	$2,094.25 Order
5	673005729	COMPLETE RH UPPER STRUT BOX SECTION	$524.50 Order
6	675000469	SCREWM8	$8.28 Order
7	673005655	RH UPPER STRUT	$525.67 Order
8	670033829	DIAPHRAGM	$0.00 Order
9	670104471	FUSE BOX MOUNTING BRACKET	$63.19 Order
9	670004050	FUSE BOX MOUNTING BRACKET	$93.01 Order
10	673008180 Replaced by: #673009229	LH COMPLETE FRONT STRUT	$0.00 Order
10	673009210 Replaced by: #673009229	LH COMPLETE FRONT STRUT	$0.00 Order
10	673009229	LH COMPLETE FRONT STRUT	$2,173.75 Order
11	673005658	COMPLETE LH UPPER STRUT BOX SECTION	$560.51 Order
12	670034077 Replaced by: #670175519	LH BRACKET	$0.00 Order
13	673005660	LOWER INSTRUMENT PANEL	$1,072.65 Order
13	673009297	LOWER INSTRUMENT PANEL	$0.00 Order
14	670034251	REINFORCEMENT BRACKET	$72.19 Order
15	673005662	WINDSCREEN LOWER CROSS MEMBER	$227.56 Order
16	670034080 Replaced by: #670175522	CROSS MEMBER	$0.00 Order
16	670175522	CROSS MEMBER	$589.91 Order
17	670004846	24-WAY HOLDER BRACKET	$21.72 Order
18	670106490	SUSPENSION STRUT CONNECTING CROSS MEMBER ASS.	$328.05 Order
19	670031030	REINFORCEMENT BRACKET	$272.84 Order
20	670034858	FIXING BRACKET	$13.58 Order
21	670036974	SCREW	$11.40 Order
22	675000105	WASHERD.12X24	$8.28 Order
23	670035227	SCREW AND WASHER	$10.62 Order
24	670004843	PLUG	$15.89 Order
25	670004844	PLUG	$13.58 Order
26	675000470	SCREW	$7.65 Order
27	675000382	SCREWM6X16	$10.16 Order
28	675000421	SCREW	$23.55 Order
29	675000095	NUTM6	$8.64 Order
30	673005665	LH UPPER STRUT	$197.27 Order
31	675000469	SCREWM8	$8.28 Order
32	675000469	SCREWM8	$8.28 Order
33	670002185	THREADED RIVET	$11.10 Order
34	670032695	RIVET	$11.52 Order
35	670032695	RIVET	$11.52 Order
37	670005395	THREADED RIVET	$6.21 Order
38	670006571	THREADED RIVET	$6.21 Order
39	670034982	BRACKET	$11.55 Order
52	675000623	WELDED STUDM5X14	$12.11 Order
54	675000628	WELDED STUDM6X25	$12.71 Order
58	670030073	PLUG	$9.72 Order
59	673008198	LONGITUDINAL MEMBER CONNECTING CROSS MEMBER	$566.83 Order
